PLAN 84-491
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Floor Plans
Full Specs & Features
Dimension
Depth : 50' 2"
Height : 24'
Width : 93' 4"
Area
First Floor: 2685 sq/ft
Ceiling
Garage Ceiling : 8'
Main Ceiling : 10'
Roof
Primary Pitch : 14:12
Roof Framing : stick
Roof Type : gable
Exterior Wall Framing
Exterior Wall Finish : brick, stone
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Master Sitting Area
Storage Area
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

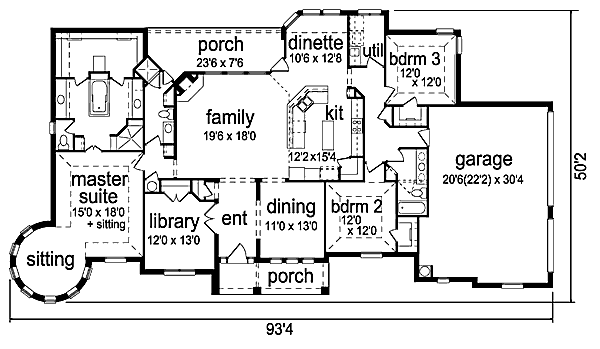

Rooms
Bedroom 2:
144 sq/ft width 12' x depth 12'
Bedroom 3:
144 sq/ft width 12' x depth 12'
Dinette:
133 sq/ft width 10' 6" x depth 12' 8"
Dining Room:
143 sq/ft width 11' x depth 13'
Family Room:
351 sq/ft width 19' 6" x depth 18'
Garage:
672 sq/ft width 22' 2" x depth 30' 4"
Kitchen:
186 sq/ft width 12' 2" x depth 15' 4"
Library:
156 sq/ft width 12' x depth 13'
Master Suite:
270 sq/ft width 15' x depth 18'
Porch - Rear:
176 sq/ft width 23' 6" x depth 7' 6"
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale
- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.
- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
Plan Set
$752.25
$816.00
$913.75
$960.50
$1585.25
$701.25
Foundation
$0.00
$0.00
Additional Options
$148.75
$51.00
$85.00
$33.15
$85.00
$51.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
