PLAN 84-101
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
This cottage design floor plan is 1044 sq ft and has 2 bedrooms and 1 bathrooms.
Floor Plans
Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 36'
Height : 13' 8"
Width : 39' 10"
Area
First Floor: 1044 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 4:12
Roof Framing : Conventional
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Bedroom Features
Walk In Closet
Kitchen Features
Butler's Pantry
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Lot Characteristics
Suited For Narrow Lot
Suited For View Lot
More
Empty Nester
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale

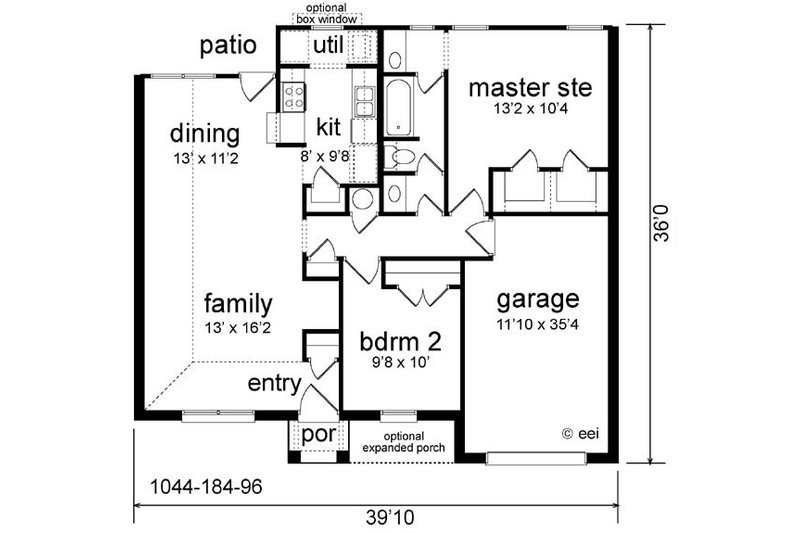

- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

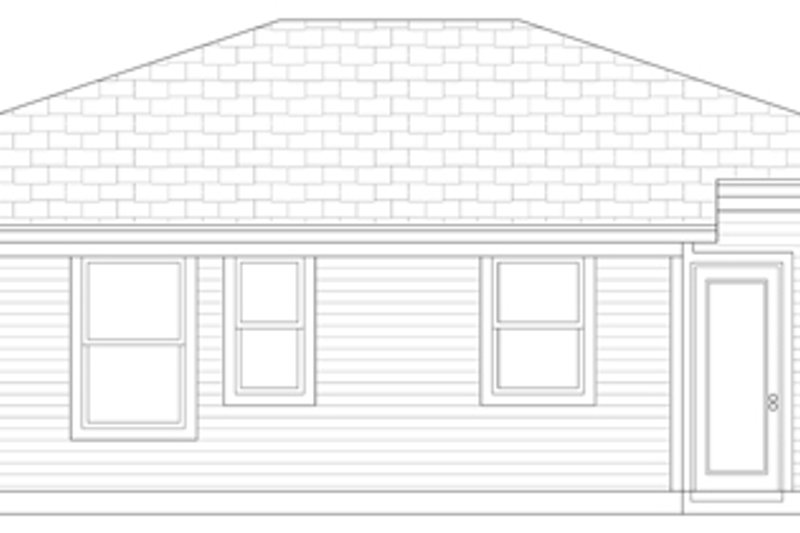

- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
