PLAN 84-247
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

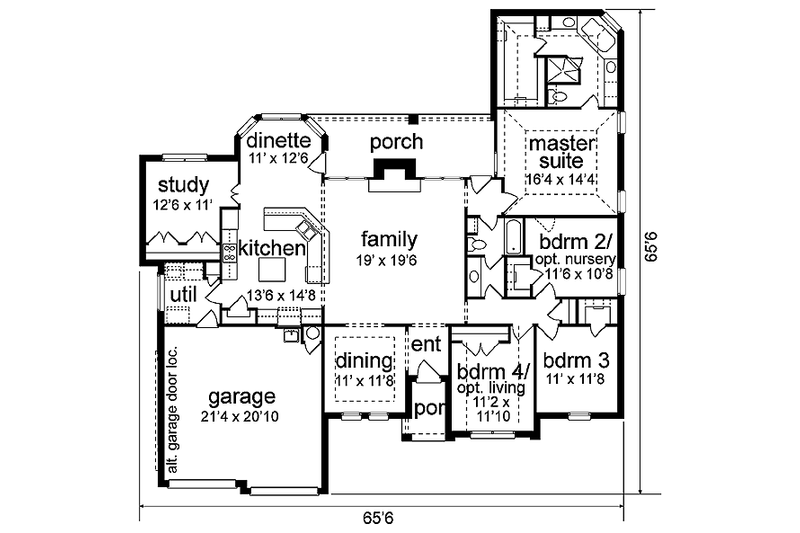

Floor Plans
Full Specs & Features
Dimension
Depth : 65' 6"
Height : 25' 10"
Width : 65' 6"
Area
First Floor: 2370 sq/ft height 10'
Ceiling
Main Ceiling : 10'
Roof
Primary Pitch : 9:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
122 sq/ft width 11' 6" x depth 10' 8"
Bedroom 3:
128 sq/ft width 11' x depth 11' 8"
Bedroom 4:
132 sq/ft width 11' 2" x depth 11' 10"
Breakfast Room:
147 sq/ft width 11' 10" x depth 12' 6"
Dining Room:
128 sq/ft width 11' x depth 11' 8"
Family Room:
370 sq/ft width 19' x depth 19' 6"
Garage:
444 sq/ft width 21' 4" x depth 20' 10"
Kitchen:
198 sq/ft width 13' 6" x depth 14' 8"
Master Bedroom:
234 sq/ft width 16' 4" x depth 14' 4"
Study:
137 sq/ft width 12' 6" x depth 11'
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale
- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

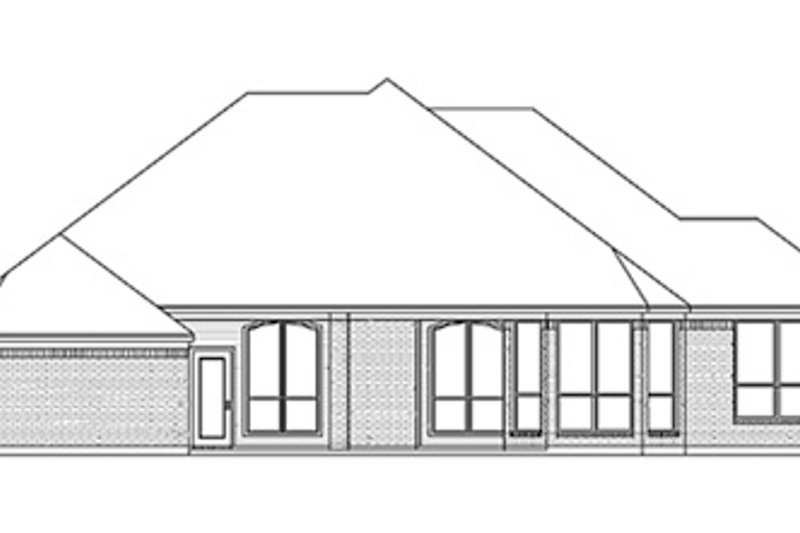

- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
Plan Set
$765.00
$850.00
$935.00
$935.00
$1530.00
$680.00
Foundation
$0.00
$0.00
Additional Options
$170.00
$42.50
$85.00
$33.15
$85.00
$63.75
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
