PLAN 84-585
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 50' 8"
Height : 20' 4"
Width : 49' 10"
Area
First Floor: 1907 sq/ft height 10'
Garage: 426 sq/ft
Porch: 22 sq/ft
Ceiling
Garage Ceiling : 8'
Main Ceiling : 10'
Roof
Primary Pitch : 6:12
Roof Framing : Conventional
Roof Type : Gable
Exterior Wall Framing
Exterior Wall Finish : brick
Framing : 2x4
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Garage Features
Front Entry Garage
Side Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
width 10' x depth 12'
Bedroom 3:
width 10' 6" x depth 11' 8"
Bedroom 4:
width 10' x depth 11'
Dining:
width 12' x depth 11' 8"
Family Room:
width 18' 8" x depth 20' 2"
Front Porch:
22 sq/ft
Garage:
426 sq/ft width 18' 4" x depth 21'
Kitchen:
width 10' 8" x depth 13'
Master Suite:
width 12' 2" x depth 19' 2"
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale

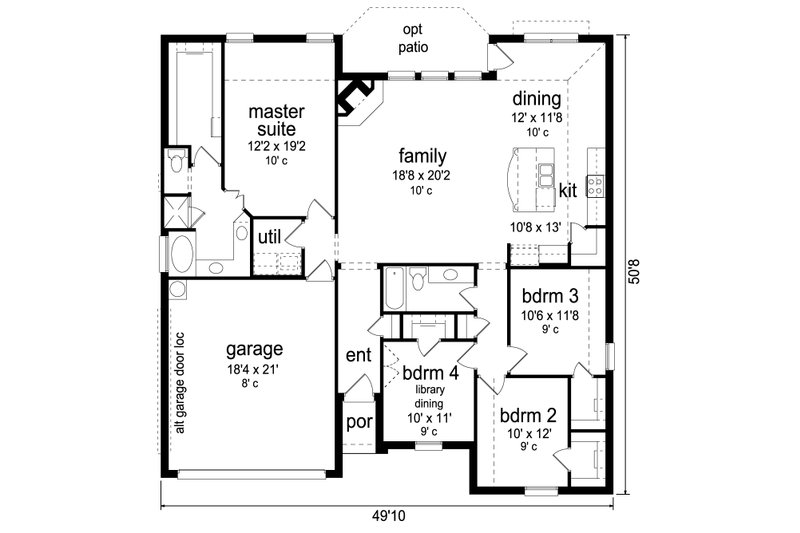

- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

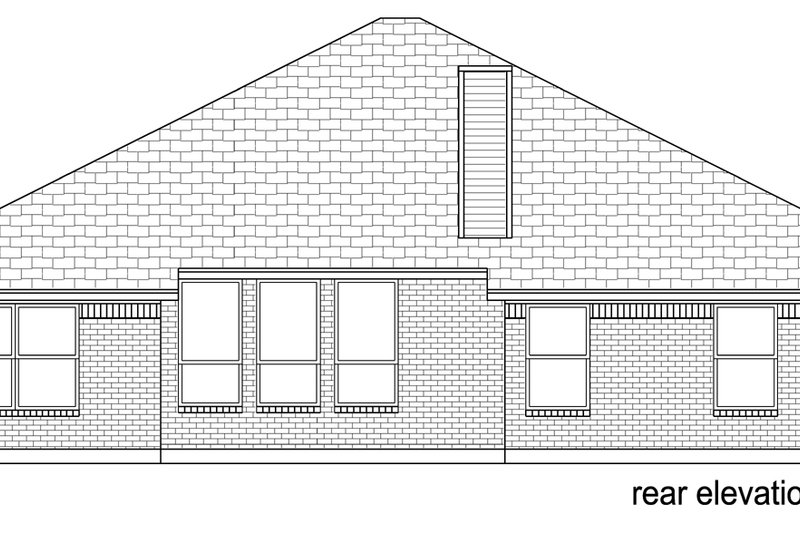

- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
Plan Set
$825.00
$925.00
$1050.00
$1050.00
$1680.00
$725.00
Foundation
$0.00
$0.00
Additional Options
$200.00
$50.00
$100.00
$39.00
$100.00
$75.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
