Key Specs
6228
sq ft
5
Beds
4.5
Baths
1
Floors
3
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 48-904
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 99'
Height : 24'
Width : 92'
Area

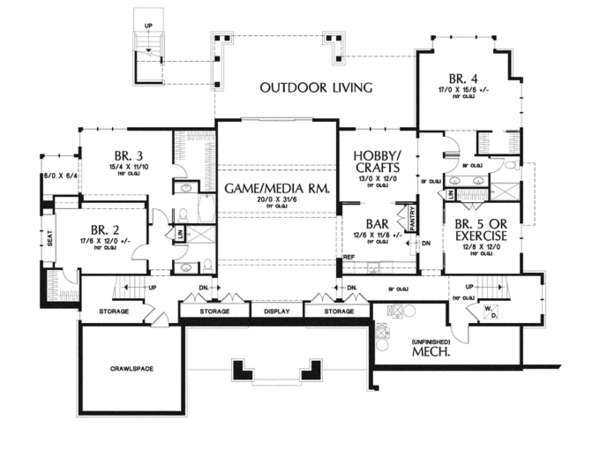

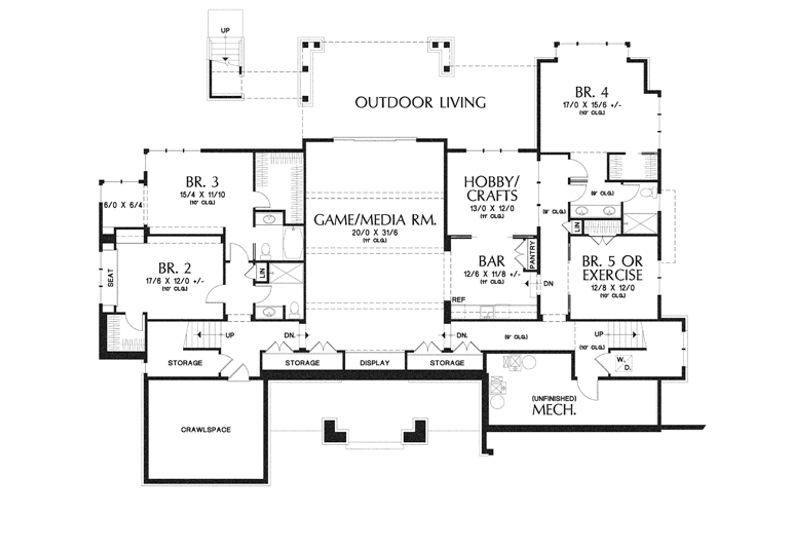

Basement Living: 2932 sq/ft

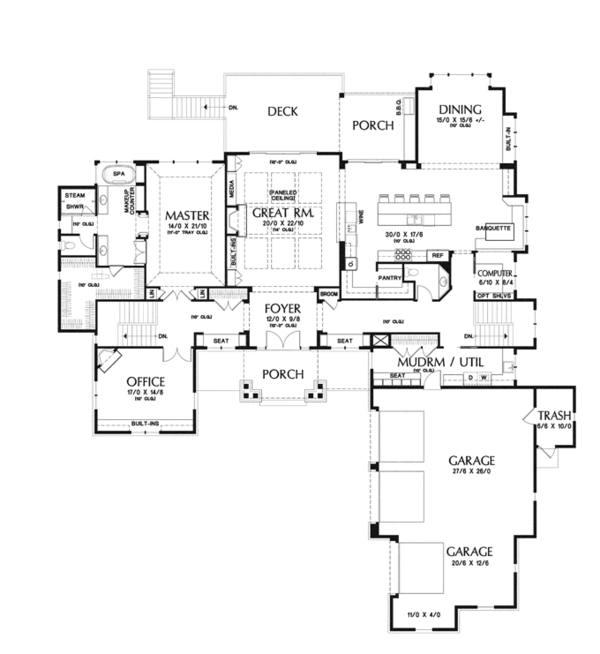

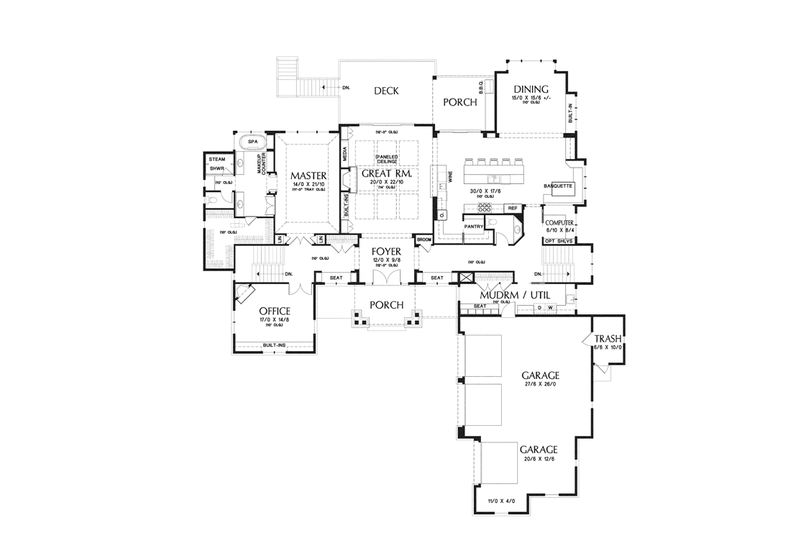

First Floor: 3296 sq/ft
Garage: 1157 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shake
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Exercise Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Mud Room
Open Floor Plan
Storage Area
Vaulted / Cathedral Ceilings
Workshop
Garage Features
Front Entry Garage
Outdoor Spaces
Courtyard
Covered Rear Porch
Deck
Grill Deck Sundeck
Rooms
Bar:
width 12' 6" x depth 11' 8"
Bedroom 2:
width 17' 6" x depth 12'
Bedroom 3:
width 15' 4" x depth 11' 10"
Bedroom 4:
width 17' x depth 15' 6"
Bedroom 5/Exercise Room:
width 12' 8" x depth 12'
Dining Room:
width 15' x depth 15' 6"
Foyer:
width 12' x depth 9' 8"
Game/Media Room:
width 20' x depth 31' 6"
Garage 1:
width 27' 6" x depth 26'
Garage 2:
width 20' 6" x depth 12' 6"
Great Room:
width 20' x depth 22' 10"
Hobby/Crafts Room:
width 13' x depth 12'
Kitchen:
width 30' x depth 17' 6"
Master Bedroom:
width 14' x depth 21' 10"
Office:
width 17' x depth 14' 8"
Trash Room:
width 6' 6" x depth 10'
What's Included In This Plan Set
- Exterior Elevations
- In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
-
Foundation Plan
- The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.
-
Floor Plan(s)
- Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
-
Building Sections
- Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
-
Roof Plan
- Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
-
Notes and Details Page(s)
- Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
Plan Set
$3096.00
$3296.00
$3346.00
$6192.00
Foundation
$0.00
Framing
$0.00
Additional Options
$225.00
$50.00
$165.00
$495.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
