PLAN 417-557
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans

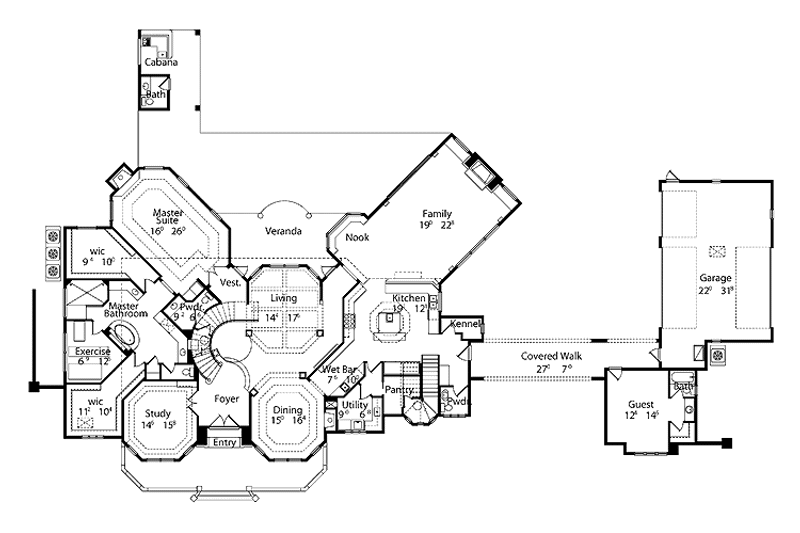

Floor Plan - Main Floor

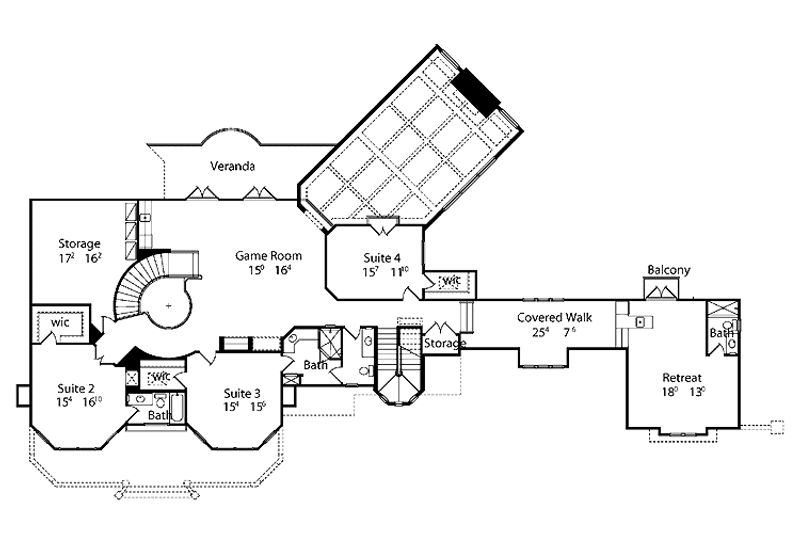

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 86' 11"
Height : 37'
Width : 143'
Area
First Floor: 4252 sq/ft
Second Floor: 2562 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : Block
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Loft
Main Floor Laundry
Outdoor Spaces
Balcony
Courtyard
Rooms
3rd BR Closet:
35 sq/ft width 7' 4" x depth 4' 10"
Bathroom 2:
33 sq/ft width 5' 4" x depth 6' 4"
Bathroom 3:
86 sq/ft width 9' 5" x depth 9' 2"
Bedroom 2 Closet:
55 sq/ft width 6' x depth 9' 4"
Bedroom 3:
237 sq/ft width 15' 4" x depth 15' 6"
Bedroom 3 Closet:
55 sq/ft width 6' x depth 9' 4"
Bedroom 4:
184 sq/ft width 15' 7" x depth 11' 10"
Bedroom 4 Closet:
35 sq/ft width 8' 3" x depth 4' 4"
Bedroom 5:
203 sq/ft width 12' 4" x depth 16' 6"
Breakfast Room:
108 sq/ft width 9' 10" x depth 11'
Den/Office or Bedroom 1:
229 sq/ft width 14' 8" x depth 15' 8"
Dining Room:
239 sq/ft width 14' 8" x depth 16' 4"
Exercise Room:
152 sq/ft width 12' 2" x depth 12' 6"
Foyer:
116 sq/ft width 10' 2" x depth 11' 6"
Game Room:
743 sq/ft width 30' 4" x depth 24' 6"
Garage:
819 sq/ft width 22' x depth 37' 3"
Gathering Room:
443 sq/ft width 19' x depth 23' 4"
Hall:
194 sq/ft width 25' 4" x depth 7' 8"
Hall Bathroom:
30 sq/ft width 5' 7" x depth 5' 6"
Kitchen:
167 sq/ft width 9' 1" x depth 18' 5"
Living Room:
247 sq/ft width 14' 4" x depth 17' 3"
Master Bathroom:
515 sq/ft width 25' 9" x depth 20'
Master Bedroom:
420 sq/ft width 16' 1" x depth 26' 2"
Master Closet:
137 sq/ft width 12' 4" x depth 11' 2"
Powder Room:
59 sq/ft width 9' 2" x depth 6' 6"
Storage:
288 sq/ft width 17' 2" x depth 16' 10"
Study:
378 sq/ft width 18' x depth 21'
Utility Room:
60 sq/ft width 9' x depth 6' 8"
Walk-In Closet:
130 sq/ft width 13' x depth 10'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

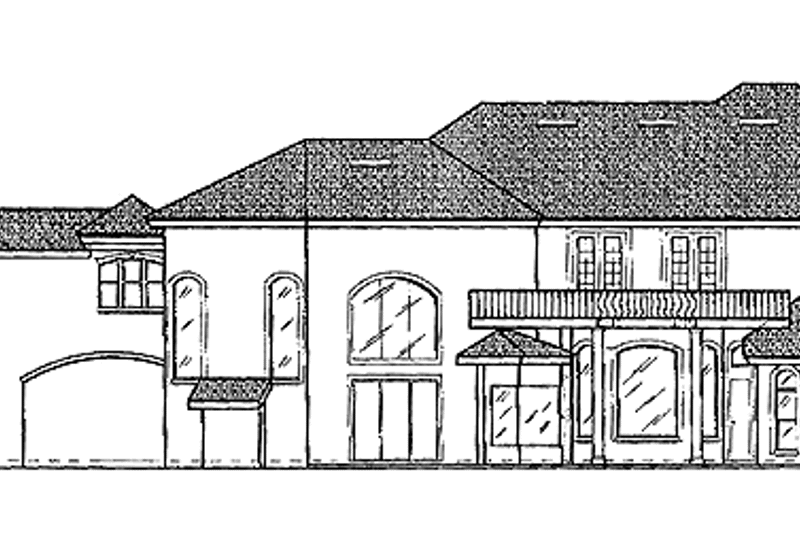

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$3150.00
$6300.00
$1000.00
Foundation
$0.00
Framing
$0.00
Additional Options
$100.00
$39.00
$200.00
$30.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
