PLAN 417-527

Photographs may show modified designs.

Save

Key Specs


Plan Sq Ft

6363
sq ft

Plan Bedrooms

5
Beds

Plan Bathrooms

6.5
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Subtotal
$3150.00
Best Price Guaranteed*
Also order by phone: 1-866-445-9085
Cost-to-Build Estimates

Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-866-445-9085
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-866-445-9085
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 417-527

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description

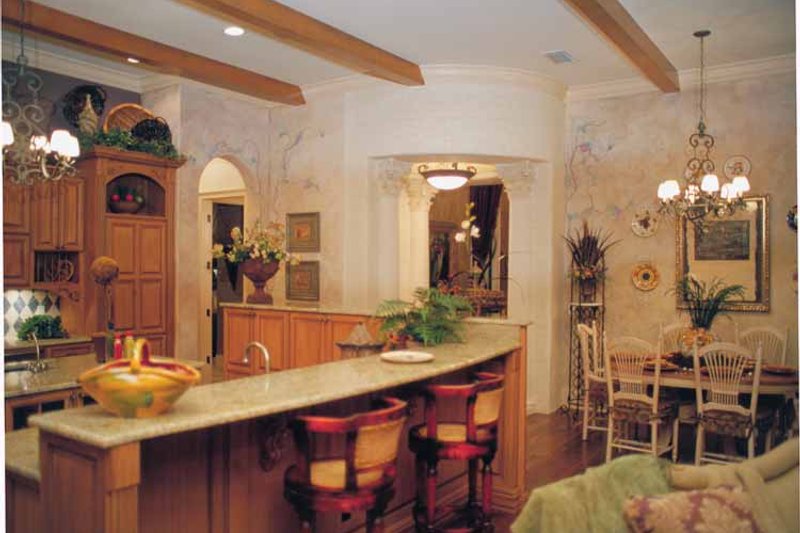

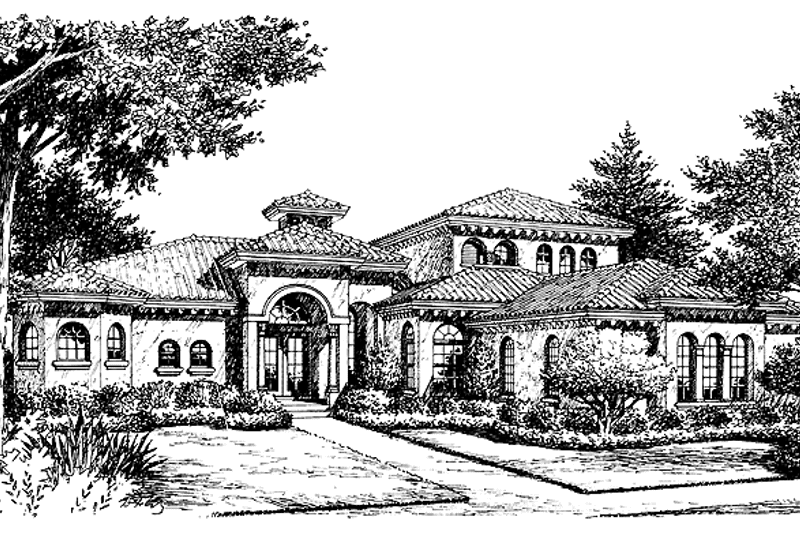

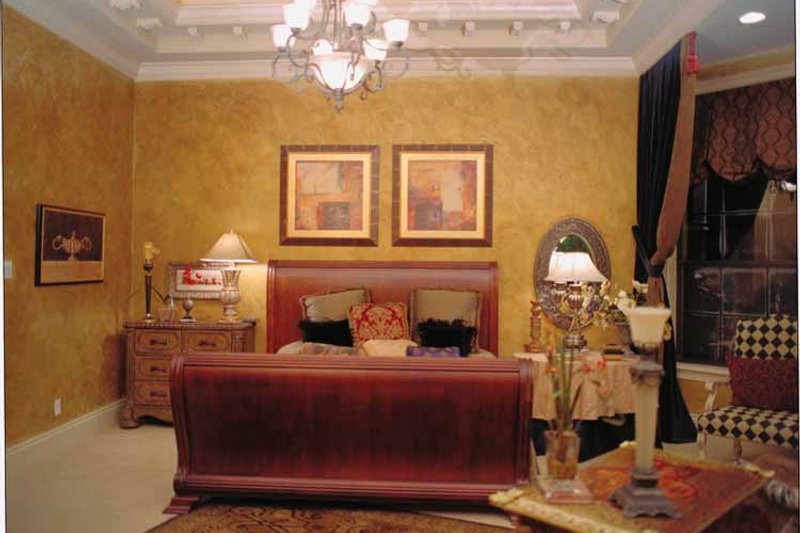

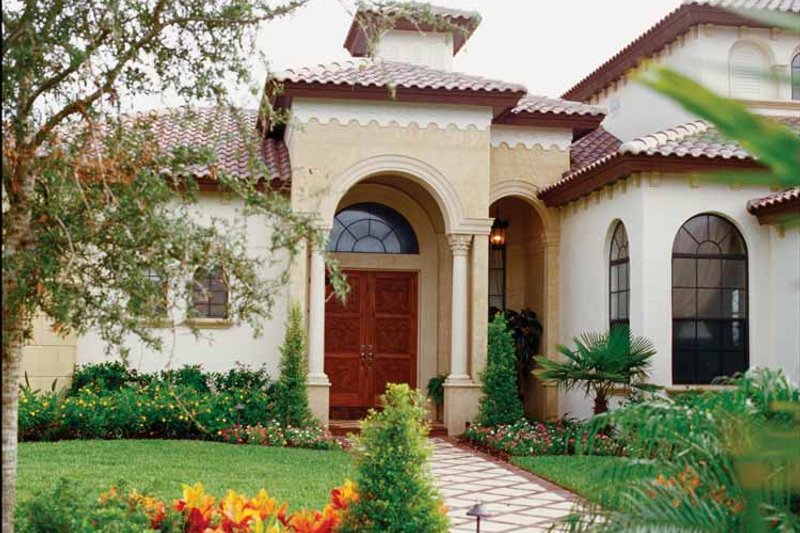

To the left of the facade, paired windows on a white wall effect a subtle but certain Mediterranean style to this grand design. The same appreciation for naturalistic forms can be seen in the rounded hallway from the main dining room to the nook and kitchen. A luxurious master suite occupies the left side of the plan, with private access to the covered patio. Guests will enjoy similar comforts in interestingly shaped rooms and full baths.

Full Specs & Features


Dimension

Depth : 89' 4"

Height : 28'

Width : 73' 4"

Area

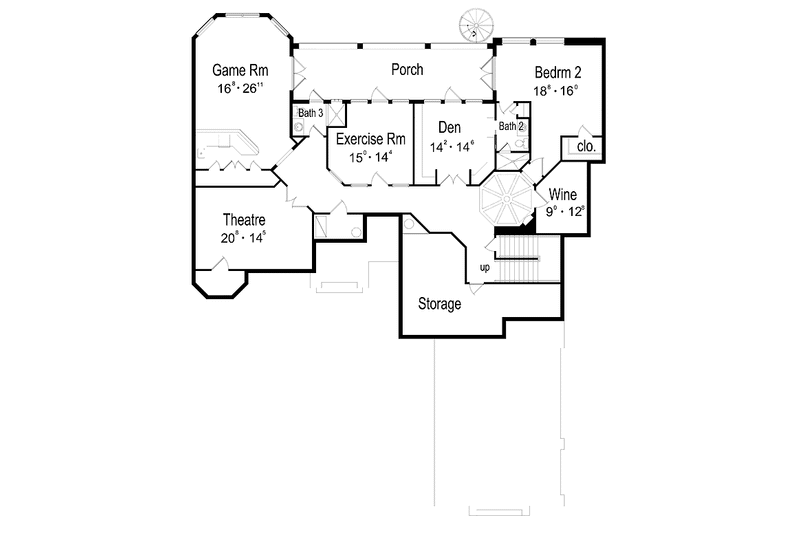

Basement Living: 2563 sq/ft

First Floor: 2895 sq/ft height 14'

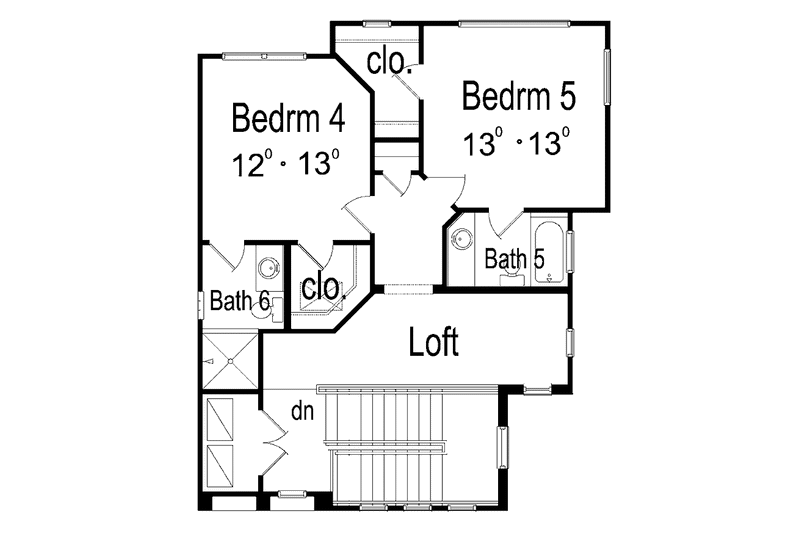

Second Floor: 905 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Guest Suite

Main Floor Master Bedroom

Split Bedrooms

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Exercise Room

Family Room Keeping Room

Hobby Rec Room Game Room

Loft

Main Floor Laundry

Media Room

Open Floor Plan

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Courtyard

Covered Front Porch

Covered Rear Porch

Grill Deck Sundeck

Rooms

3rd BR Closet:

40 sq/ft width 6' x depth 6' 8"

Bathroom 2:

67 sq/ft width 12' 4" x depth 5' 6"

Bathroom 3:

84 sq/ft width 12' 8" x depth 6' 8"

Bathroom 4:

51 sq/ft width 9' x depth 5' 8"

Bathroom 5:

58 sq/ft width 9' 8" x depth 6'

Bathroom 6:

72 sq/ft width 6' x depth 12'

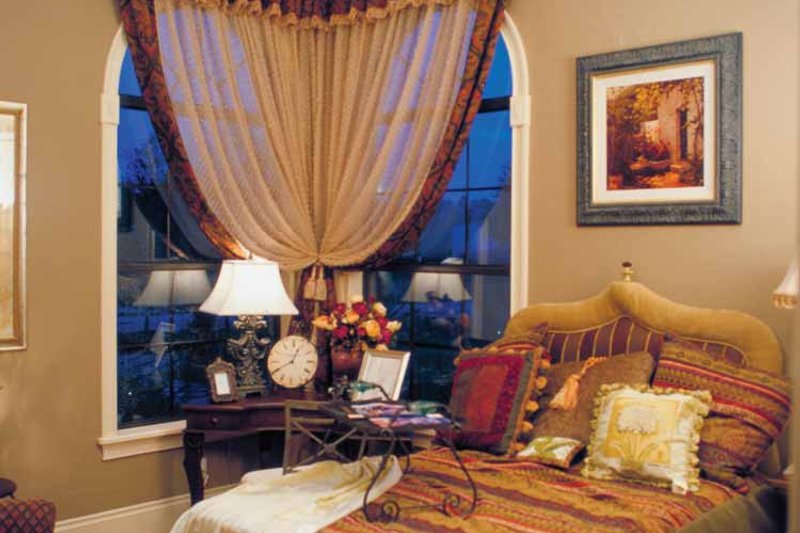

Bedroom 2:

156 sq/ft width 12' x depth 13'

Bedroom 2 Closet:

23 sq/ft width 8' 8" x depth 2' 8"

Bedroom 3:

156 sq/ft width 12' x depth 13'

Bedroom 3 Closet:

23 sq/ft width 8' 8" x depth 2' 8"

Bedroom 4:

169 sq/ft width 13' x depth 13'

Bedroom 4 Closet:

52 sq/ft width 8' 8" x depth 6'

Bedroom 5:

298 sq/ft width 18' 8" x depth 16'

Bedroom 5 Closet:

31 sq/ft width 7' 4" x depth 4' 4"

Breakfast Room:

70 sq/ft width 10' x depth 7'

Den/Office or Bedroom 1:

212 sq/ft width 14' 6" x depth 14' 8"

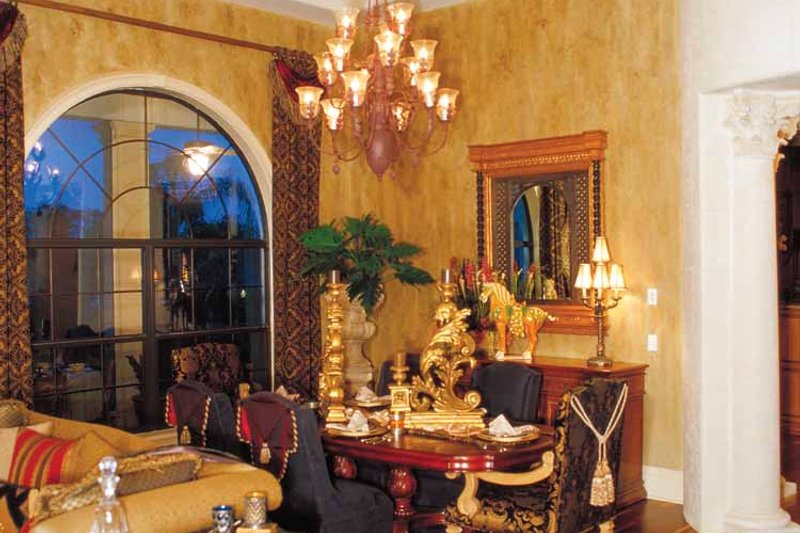

Dining Room:

138 sq/ft width 10' 8" x depth 13'

Exercise Room:

224 sq/ft width 15' 4" x depth 14' 8"

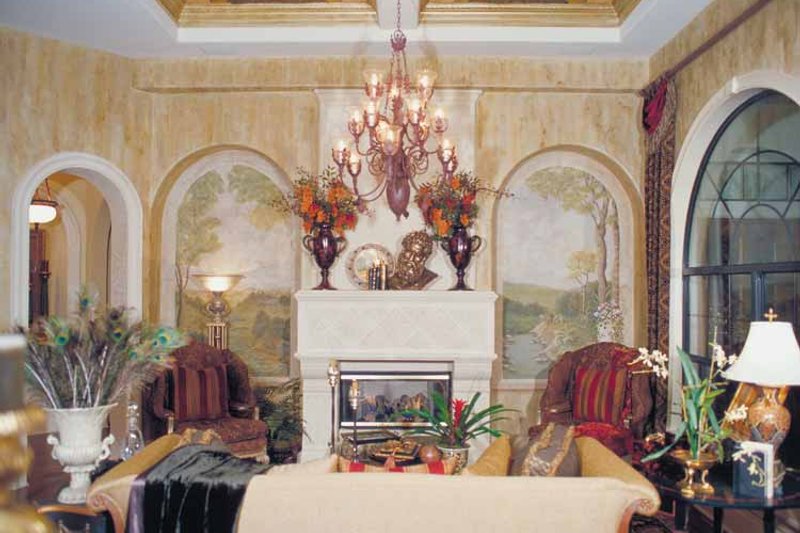

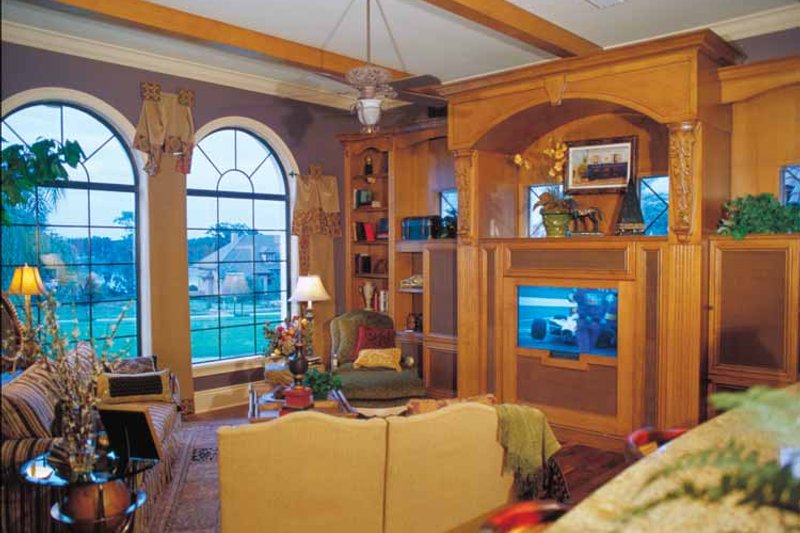

Family Room:

338 sq/ft width 18' 10" x depth 18'

Foyer:

66 sq/ft width 8' 4" x depth 8'

Front Entry:

66 sq/ft width 8' 4" x depth 8'

Game Room:

416 sq/ft width 16' 8" x depth 25'

Garage:

642 sq/ft width 29' 8" x depth 21' 8"

Kitchen:

310 sq/ft width 20' x depth 15' 6"

Laundry Room:

72 sq/ft width 6' x depth 12'

Living Room:

138 sq/ft width 10' 8" x depth 13'

Loft:

116 sq/ft width 6' 10" x depth 17'

Master Bathroom:

434 sq/ft width 20' 8" x depth 21'

Master Bedroom:

336 sq/ft width 16' 10" x depth 20'

Master Closet:

58 sq/ft width 8' 4" x depth 7'

Master Closet Two:

60 sq/ft width 9' x depth 6' 8"

Patio:

353 sq/ft width 35' 4" x depth 10'

Porch - Rear:

317 sq/ft width 35' 4" x depth 9'

Powder Room:

31 sq/ft width 6' x depth 5' 4"

Storage:

511 sq/ft width 28' x depth 18' 3"

Theatre Room:

297 sq/ft width 14' 5" x depth 20' 8"

Wine Cellar:

121 sq/ft width 13' x depth 9' 4"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

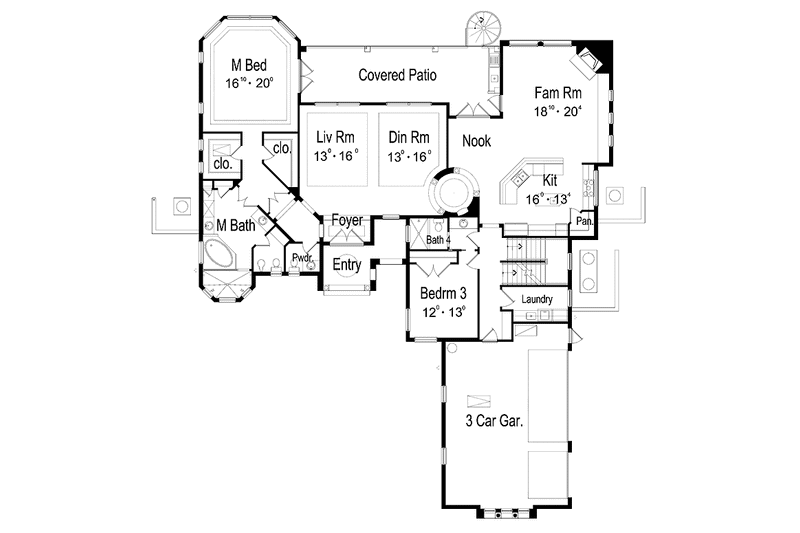

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-866-445-9085

Plan Set

PDF Set:
$3150.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Single Build:
$6300.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set:
$1000.00
One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.

Framing

Block:
$0.00
Block

Additional Options

Audio Video Design:
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$30.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
