Full Specs & Features
Depth : 29' 6"
Height : 29'
Width : 36' 2"

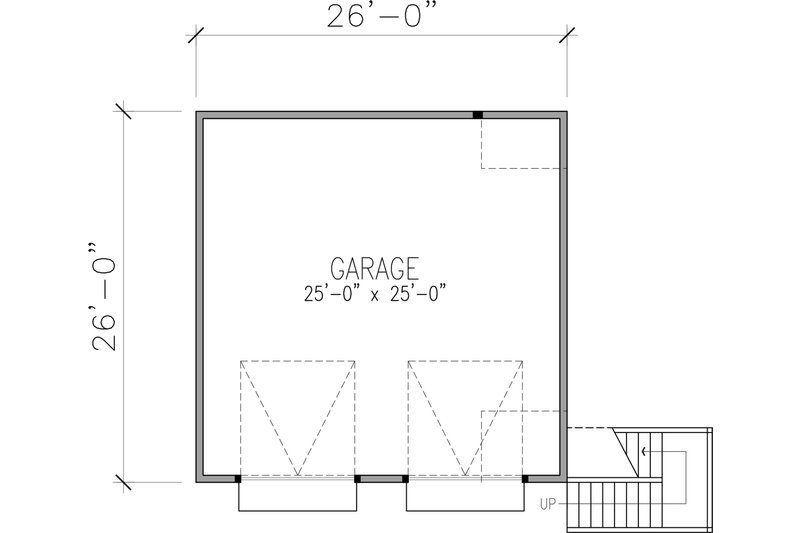

Garage : 676 sq/ft

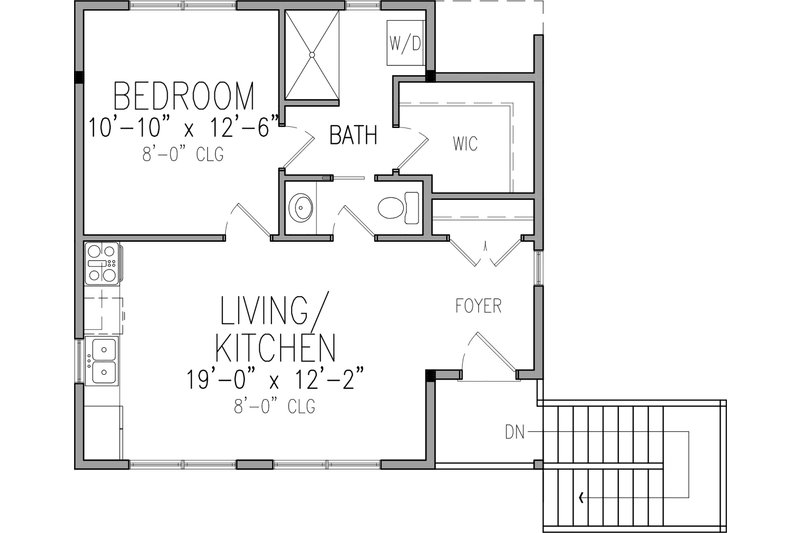

Upper Floor : 622 sq/ft
Garage Ceiling : 10'
Upper Ceiling Ft : 8'
Primary Pitch : 12/12
Roof Framing : Stick
Roof Type : Shingle
Secondary Pitch : 8/12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x6
Insulation : R-21
Walk In Closet
Additional Room Features
Front Entry Garage
Suited For Narrow Lot
Economical To Build
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

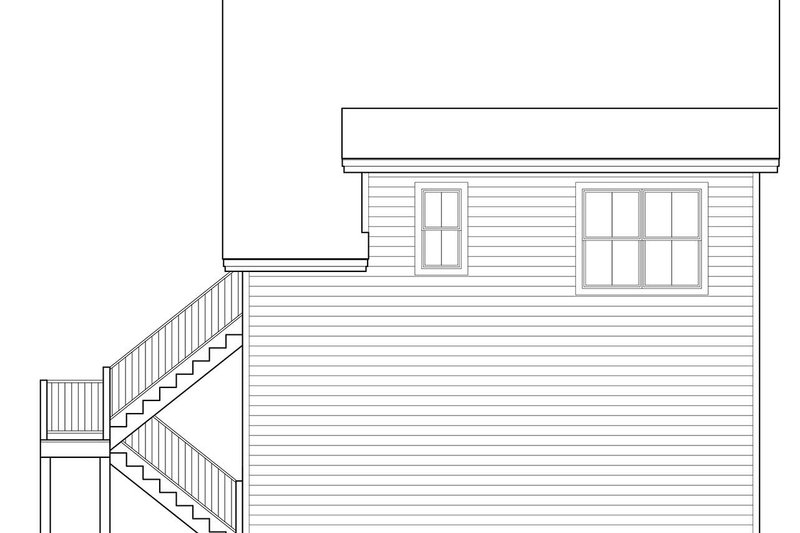

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
