PLAN 417-566

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description

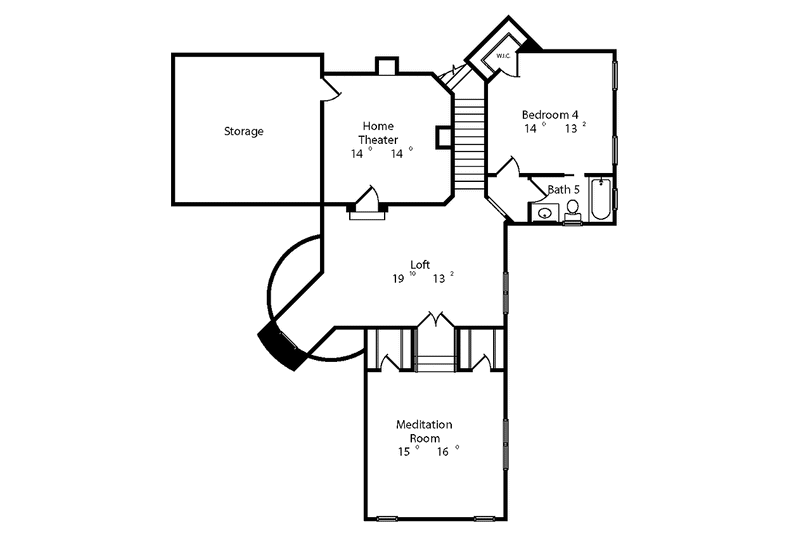

Sprawling space, wide open rooms, and a flowing indoor/outdoor relationship are Mediterranean influences brought to life in this design. The covered rear porch includes a fireplace on one end and an outdoor kitchen at the other. The home is filled with appealing atmosphere, varying throughout with a variety of ceiling treatments. A split-bedroom design works wonders here as the master suite and to-die-for master bath encompass the entire left wing, leaving the right side to two family bedrooms with private baths and a game room. Another bed and bath, the home theater, and a meditation room reside on the second level. Enough storage for out-of-season decorations and clothing is also available.

Full Specs & Features


Depth : 100' 4"

Height : 27'

Width : 105' 7"


First Floor: 4431 sq/ft

Second Floor: 989 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x4 Block

Bedroom Features


Formal Dining Room

Formal Living Room / Parlor

Main Floor Master Bedroom

Split Bedrooms

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Hobby Rec Room Game Room


Main Floor Laundry

Open Floor Plan

Outdoor Spaces



Covered Rear Porch

Grill Deck Sundeck

Outdoor Fireplace

Outdoor Kitchen Grill


3rd BR Closet:

33 sq/ft width 7' x depth 4' 10"

Bathroom 2:

44 sq/ft width 8' 10" x depth 5'

Bathroom 3:

44 sq/ft width 8' 10" x depth 5'

Bedroom 2:

158 sq/ft width 13' 4" x depth 11' 11"

Bedroom 2 Closet:

30 sq/ft width 6' x depth 5'

Bedroom 3:

166 sq/ft width 14' x depth 11' 11"

Bedroom 3 Closet:

30 sq/ft width 6' x depth 5'

Bedroom 4:

183 sq/ft width 13' 10" x depth 13' 3"

Bedroom 4 Closet:

18 sq/ft width 3' x depth 6' 4"

Bedroom 5:

251 sq/ft width 15' x depth 16' 9"

Bedroom 5 Closet:

20 sq/ft width 4' 10" x depth 4' 4"

Breakfast Room:

119 sq/ft width 11' 2" x depth 10' 8"

Den/Office or Bedroom 1:

399 sq/ft width 19' 2" x depth 20' 10"

Dining Room:

215 sq/ft width 14' 9" x depth 14' 7"


57 sq/ft width 8' x depth 7' 2"

Front Entry:

117 sq/ft width 13' 4" x depth 8' 10"

Game Room:

282 sq/ft width 16' x depth 17' 8"


914 sq/ft width 22' 8" x depth 40' 4"

Gathering Room:

457 sq/ft width 19' x depth 24' 1"

Hall Bathroom:

26 sq/ft width 5' 2" x depth 5' 2"


190 sq/ft width 12' 5" x depth 15' 4"

Laundry Room:

79 sq/ft width 11' 4" x depth 7'

Living Room:

337 sq/ft width 17' 8" x depth 19' 1"


261 sq/ft width 19' 10" x depth 13' 2"

Master Bathroom:

388 sq/ft width 17' 5" x depth 22' 4"

Master Bedroom:

323 sq/ft width 16' 9" x depth 19' 4"

Master Closet:

168 sq/ft width 14' x depth 12'

Porch - Rear:

1855 sq/ft width 61' 6" x depth 30' 2"

Powder Room:

39 sq/ft width 6' x depth 6' 6"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-866-445-9085

Plan Set

PDF Set:
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
5 printed plan sets mailed to you.
5 Copy and PDF Set:
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Single Build:
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set:
One electronic set for bidding purposes only. Not a legal building set for construction.


Ideal for level lot, single layer concrete poured directly on grade.



Additional Options

Additional Construction Sets:
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
