PLAN 455-160
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

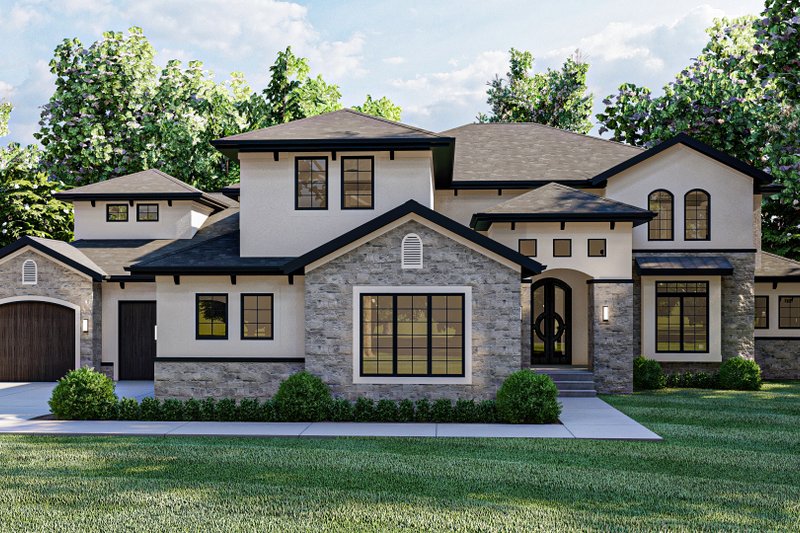

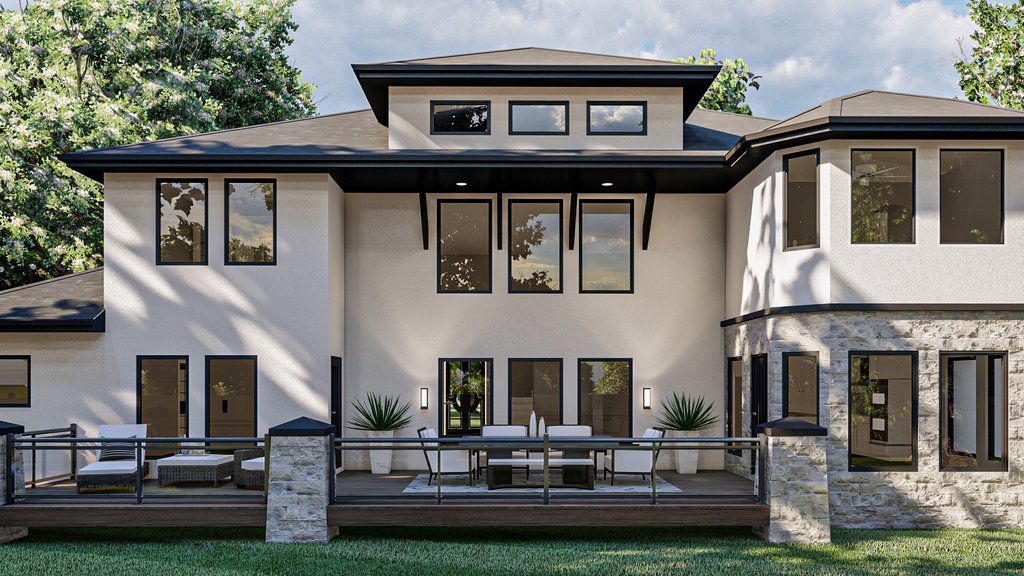

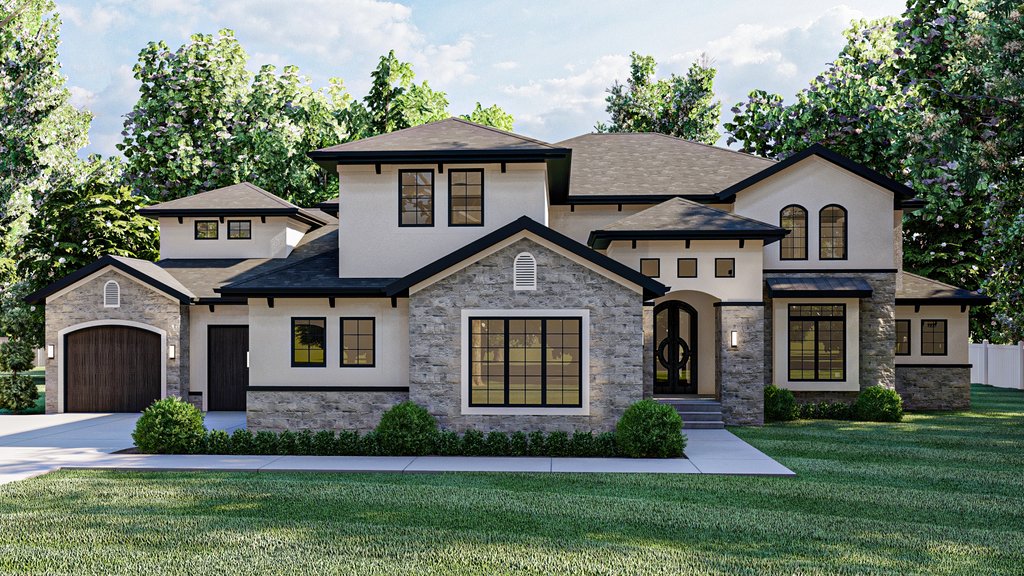

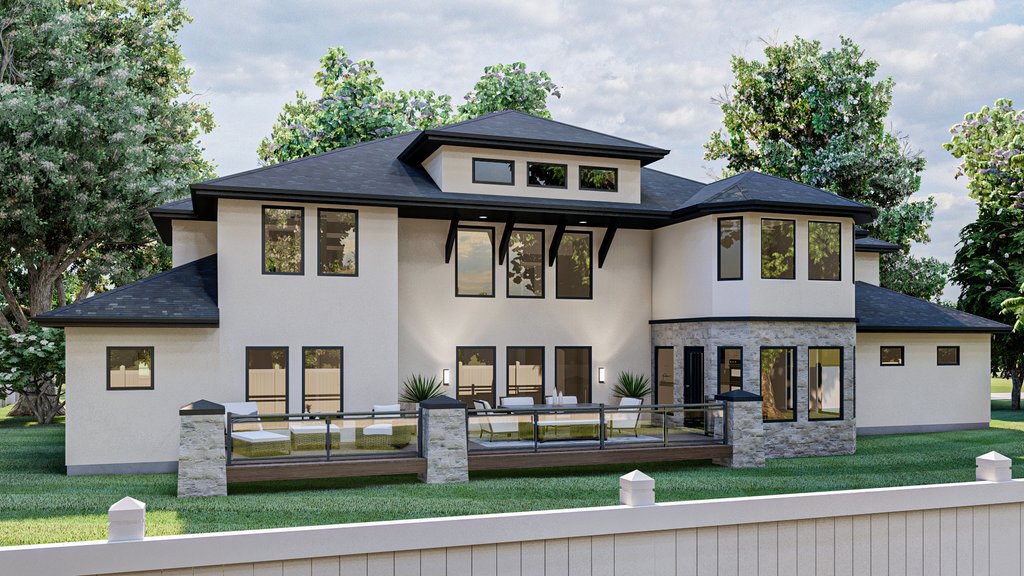

Classic Mediterranean detailing could easily place this beautiful 1-1/2 story house plan in the rolling hills of Tuscany. A sense of grandeur captivates guests within a 2-story-high entry hall that offers views through arched openings into an equally lofty great room. The great room is warmed by a fireplace, flanked by built-in entertainment centers, and brightened by a trio of windows that look out onto a sprawling rear deck. The breakfast area, which along with the kitchen, is open to the great room and is flooded with natural light. It offers access to the rear deck for airy dining options. The kitchen features ample counter space, an island workspace/breakfast bar, and a walk-in pantry. Just steps away from the kitchen lies a utility area that includes a powder bath and laundry room. This area conveniently acts as a buffer between the living areas of the home and the 4-car garage, which has extra space for storage or a workshop. On the opposite side of the home, the secluded main suite lies only steps away from a stately den. The bedroom accesses the rear deck and enjoys sunny views to the rear. Double doors open to a pampering bath area that includes an elegant oval soaking tub, walk-in shower, compartmented toilet, and sizeable walk-in closet with a dressing bench. Upstairs, each of the four secondary bedrooms has a walk-in closet. Bedrooms 2 and 3 share a Jack-n-Jill bath, as do bedrooms 4 and 5. A loft area offers views to the great room and entry hall below. Just off the loft, a large storage area is brightened by two windows to the front.
Floor Plans

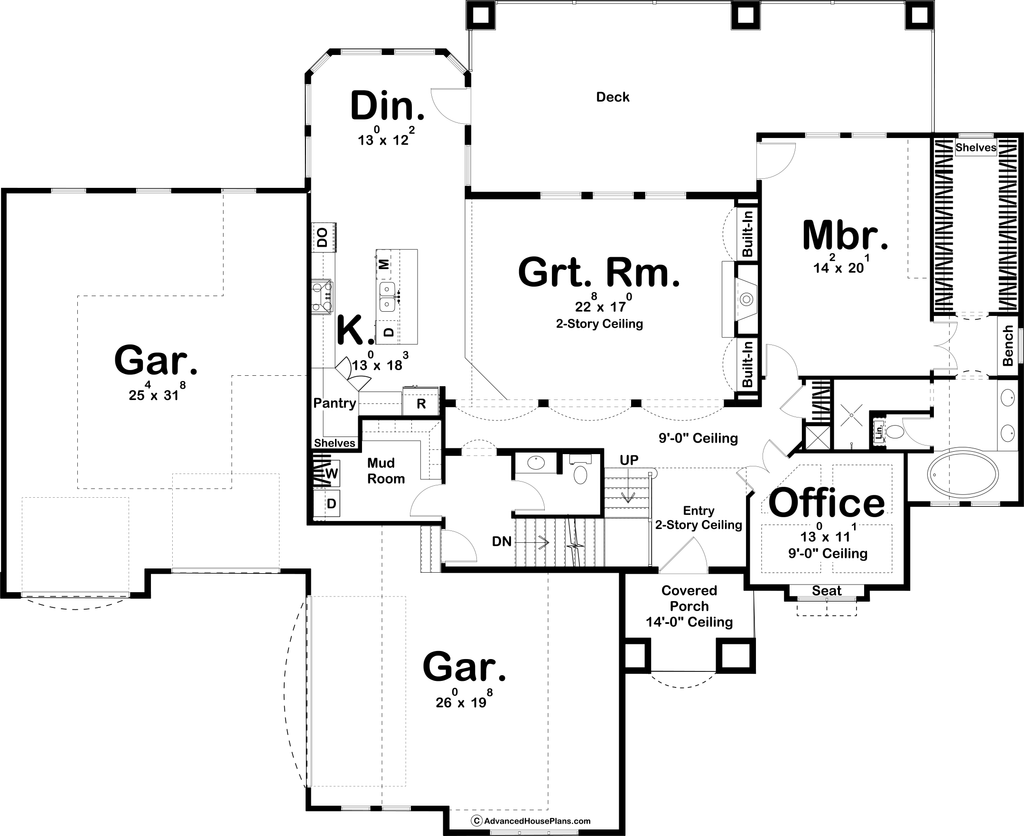

Floor Plan - Main Floor

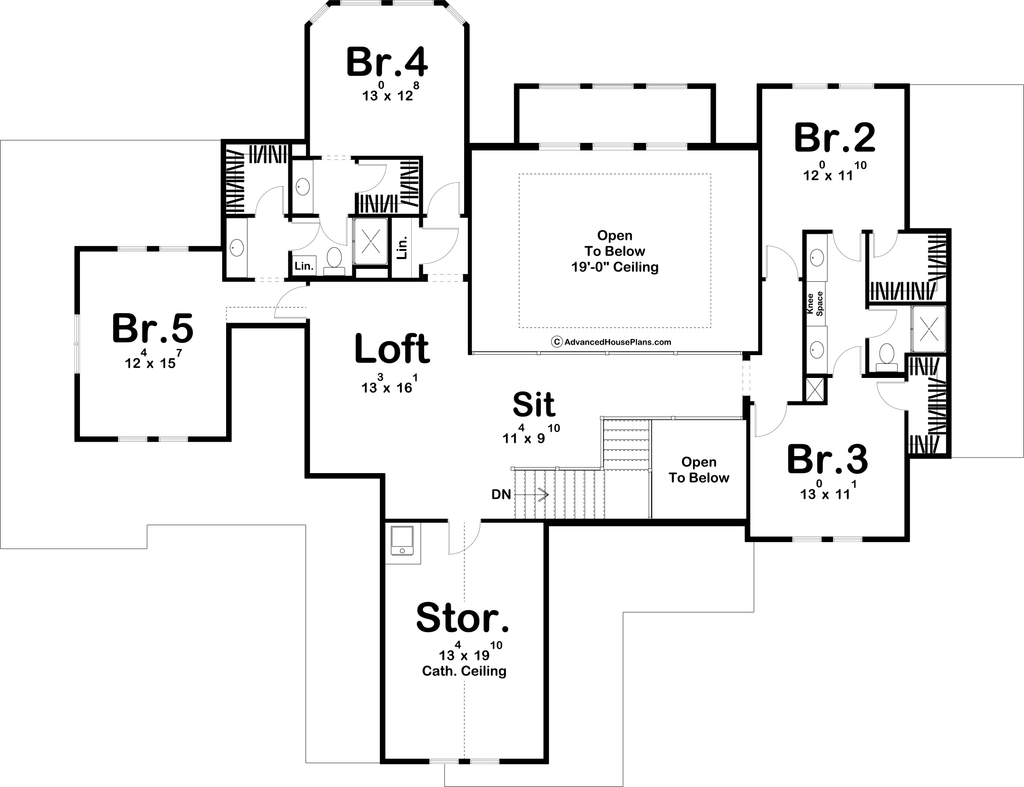

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 66'
Height : 29'
Width : 86'
Area
Main Floor : 2126 sq/ft
Upper Floor : 1623 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 6:12
Roof Framing : stick
Exterior Wall Framing
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Loft
Main Floor Laundry
Storage Area
Garage Features
Side Entry Garage
Split Garage
Outdoor Spaces
Balcony
Covered Rear Porch
Grill Deck Sundeck
More
Jack & Jill Bath
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-866-445-9085
Plan Set
PDF Set:
$1699.15
$1699.15
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1949.90
$1949.90
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$2208.30
$2208.30
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$3057.45
$3057.45
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Basement:
$0.00
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$254.15
$254.15
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$254.15
$254.15
Ideal for level lot, single layer concrete poured directly on grade.
Walk Out Basement:
$254.15
$254.15
Ideal for a sloping lot, lower level with outdoor access.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Wood 2x6:
$254.15
$254.15
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$254.15
$254.15
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$50.15
$50.15
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License:
$212.50
$212.50
Allows you to build one more home for each additional license purchased.
Audio Video Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$254.15
$254.15
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Unlimited Use License:
$425.00
$425.00
Allows you to build this home as many times as you want.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
