Full Specs & Features
Depth : 76' 8"
Height : 29' 6"
Width : 72'

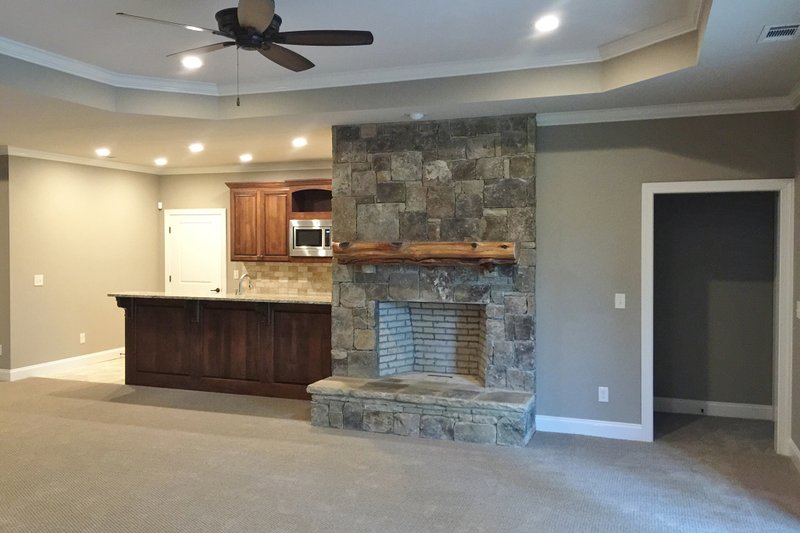

Basement Unfinished: 3125 sq/ft
First Floor: 2839 sq/ft height 9'
Garage: 750 sq/ft
Main Ceiling : 9'
Primary Pitch : 9:12
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : 2x4
Main Floor Bedrooms

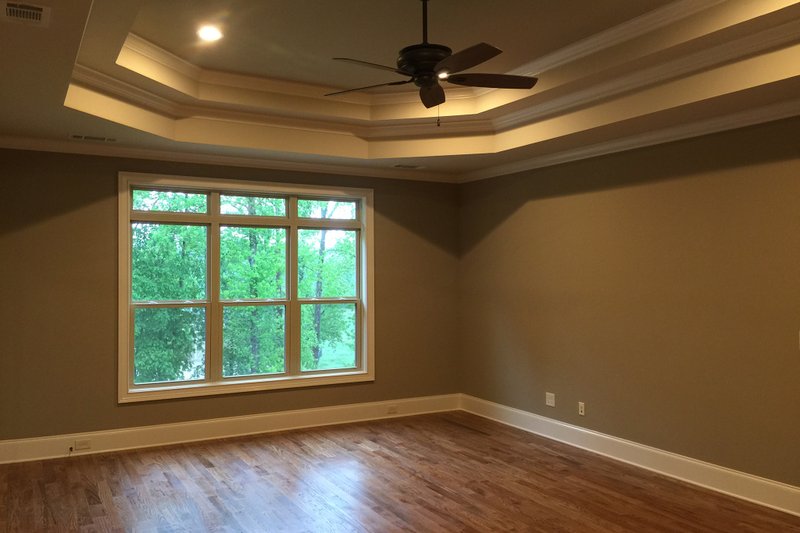

Main Floor Master Bedroom

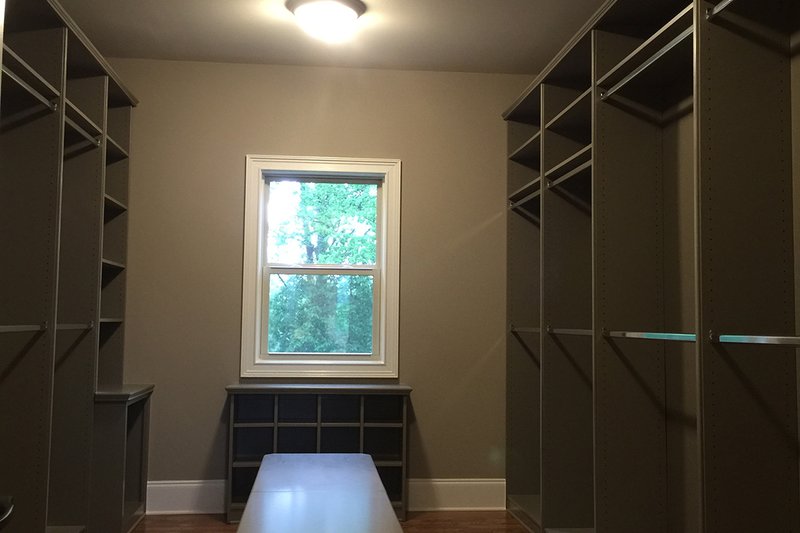

Walk In Closet

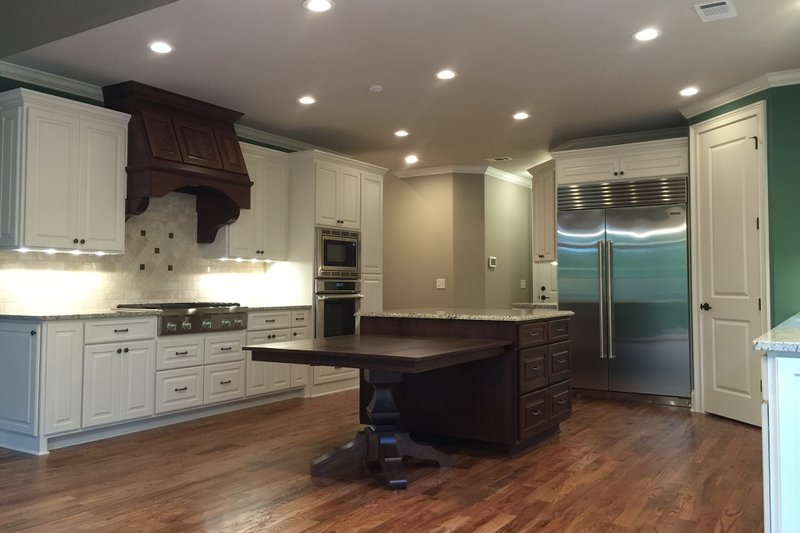

Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room

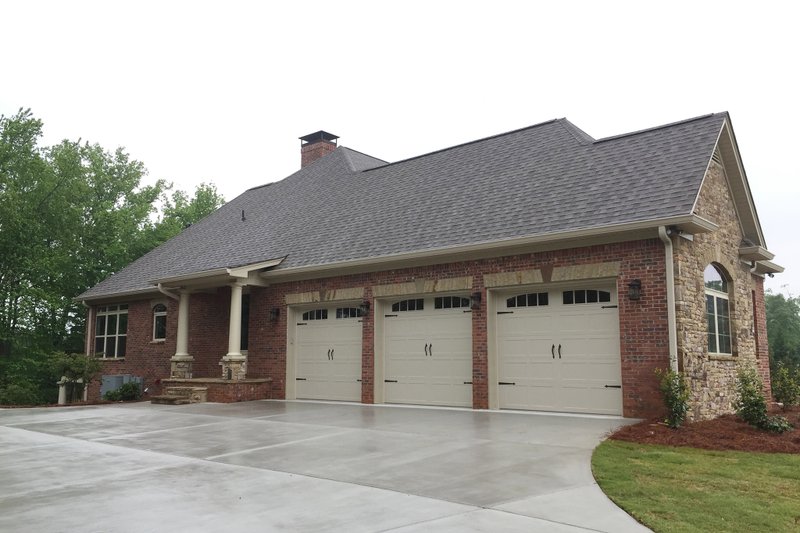

Side Entry Garage
Suited For Sloping Lot
Covered Front Porch
56 sq/ft width 9' 4" x depth 6'
180 sq/ft width 12' x depth 15'
Bedroom 2 Closet:
20 sq/ft width 5' 4" x depth 3' 8"
210 sq/ft width 14' x depth 15'
Covered Front Porch:
Covered Side Porch:
70 sq/ft width 10' x depth 7'
103 sq/ft width 10' x depth 10' 4"
750 sq/ft width 22' x depth 35'
333 sq/ft width 20' x depth 16' 8"
261 sq/ft width 15' 4" x depth 17'
288 sq/ft width 18' 4" x depth 15' 8"
80 sq/ft width 10' x depth 8'
164 sq/ft width 9' 8" x depth 17'
266 sq/ft width 21' x depth 12' 8"
341 sq/ft width 16' x depth 21' 4"
22 sq/ft width 4' 8" x depth 4' 8"
186 sq/ft width 15' 4" x depth 12'
What's Included In This Plan Set
Please note: This designer has the following the zip code restrictions: 30041, 30501, 30504, 30506, 30542, and 30566.
Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc).
Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out.
Foundation Plan and Footings
The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations.
Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable.
Building Sections & Details
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design.
Notes and Details Page(s)
The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
