PLAN 437-105

Key Specs


3644
sq ft

5
Beds

5
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Floor Plans

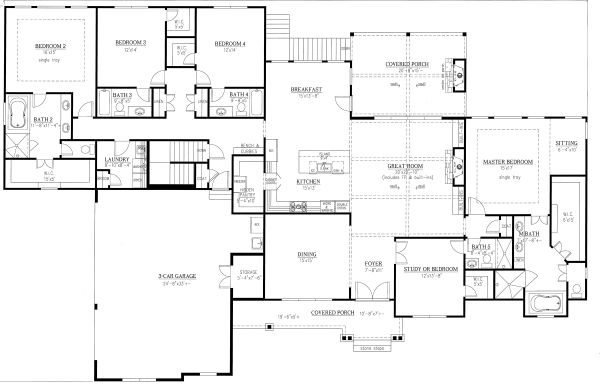

Floor Plan - Main Floor Plan
Reverse
Save Craftsman Floor Plan - Main Floor Plan Plan #437-105

Full Specs & Features


Dimension
Depth : 66' 8"
Height : 29' 6"
Width : 104'
Area
Basement : 3644 sq/ft
Garage : 910 sq/ft
Main Floor : 3644 sq/ft
Porch : 475 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Garage Ceiling : 10'
Lower Ceiling : 11'
Main Ceiling : 10'
Roof
Primary Pitch : 12/12
Roof Framing : Truss/Stick
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone/Shingle
Framing : 2x4
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Storage Area
Garage Features
Oversized Garage
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Bathroom 2:

width 11' 8" x depth 11' 4"

Bathroom 3:

width 9' x depth 8' 5"

Bathroom 4:

width 9' x depth 8' 5"

Bathroom 5:

width 8' 4" x depth 5' 4"

Bedroom 2:

width 16' x depth 15'

Bedroom 3:

width 12' x depth 14'

Bedroom 4:

width 12' x depth 14'

Breakfast:

width 15' x depth 13' 8"

Covered Porch:

width 20' x depth 9' 3"

Dining:

width 15' x depth 15'

Foyer:

width 7' x depth 8' 11"

Garage:

width 24' 8" x depth 33'

Great Room:

width 20' x depth 20' 10"

Kitchen:

width 15' x depth 13'

Laundry:

width 8' 10" x depth 8' 4"

Master Bath:

width 8' 5" x depth 8'

Master Bedroom:

width 15' x depth 17'

Master Closet:

width 6' x depth 15'

Sitting Area:

width 6' x depth 4' 10"

Storage:

width 5' 4" x depth 7' 6"

Study/Bedroom:

width 12' x depth 13' 8"

What's Included In This Plan Set


See a sample plan set
  • Exterior Elevations

    Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc).

  • Floor Plan(s)

    Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out.

  • Foundation Plan and Footings

    The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations.

  • Roof Plan

    Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable.

  • Building Sections & Details

    Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design.

  • Notes and Details Page(s)

    The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.
