This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Full Specs & Features
Depth : 71' 4"
Height : 23'
Width : 71' 8"
First Floor: 2636 sq/ft height 10'
Primary Pitch : 6:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Formal Dining Room
Formal Living Room / Parlor
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Master Sitting Area
Covered Front Porch
Covered Rear Porch
64 sq/ft width 11' x depth 5' 10"
47 sq/ft width 9' x depth 5' 4"
Bedroom 4 Closet:
29 sq/ft width 5' 4" x depth 5' 6"
449 sq/ft width 19' 10" x depth 22' 8"
182 sq/ft width 14' x depth 13'
207 sq/ft width 17' 4" x depth 12'
49 sq/ft width 7' x depth 7'
117 sq/ft width 10' 8" x depth 11'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

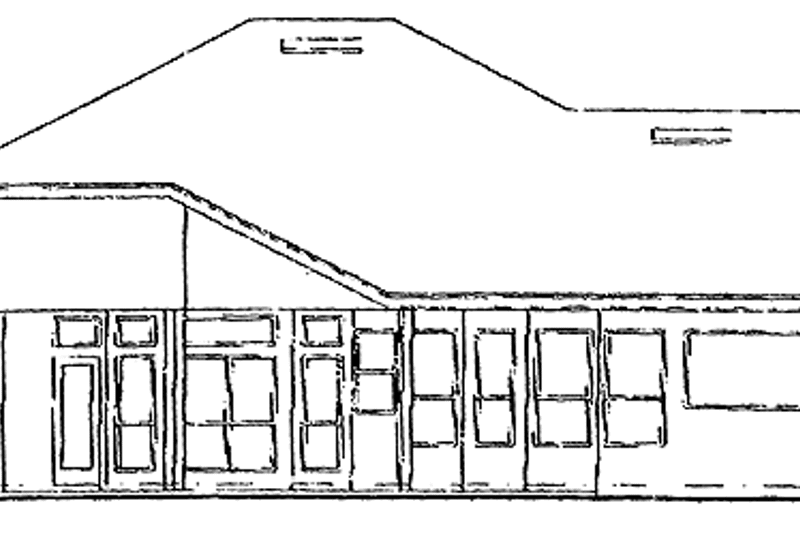

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

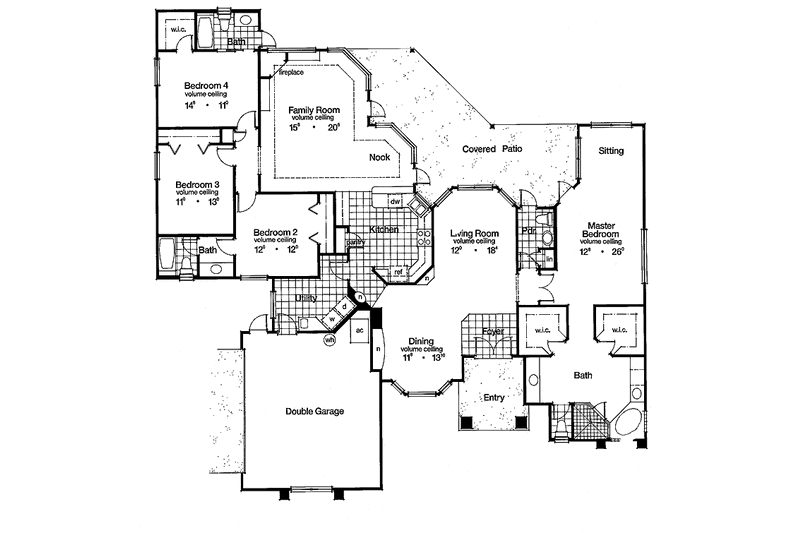

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
