PLAN 42-690
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 48'
Height : 25'
Width : 60'
Area
First Floor: 1257 sq/ft
Second Floor: 1163 sq/ft
Roof
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Main Floor Laundry
Unfinished Future Space
Workshop
Outdoor Spaces
Courtyard
Rooms
Bedroom 2:
195 sq/ft width 13' 4" x depth 14' 8"
Bedroom 3:
195 sq/ft width 13' 4" x depth 14' 8"
Bonus Room - Finished:
418 sq/ft width 16' 8" x depth 25' 1"
Dining Room:
130 sq/ft width 10' x depth 13'
Entry:
70 sq/ft width 7' x depth 10'
Great Room:
239 sq/ft width 13' 4" x depth 18'
Kitchen:
134 sq/ft width 10' 4" x depth 13'
Master Bathroom:
219 sq/ft width 13' 4" x depth 16' 6"
Master Bedroom:
199 sq/ft width 13' 4" x depth 15'
Utility Room:
72 sq/ft width 12' x depth 6'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

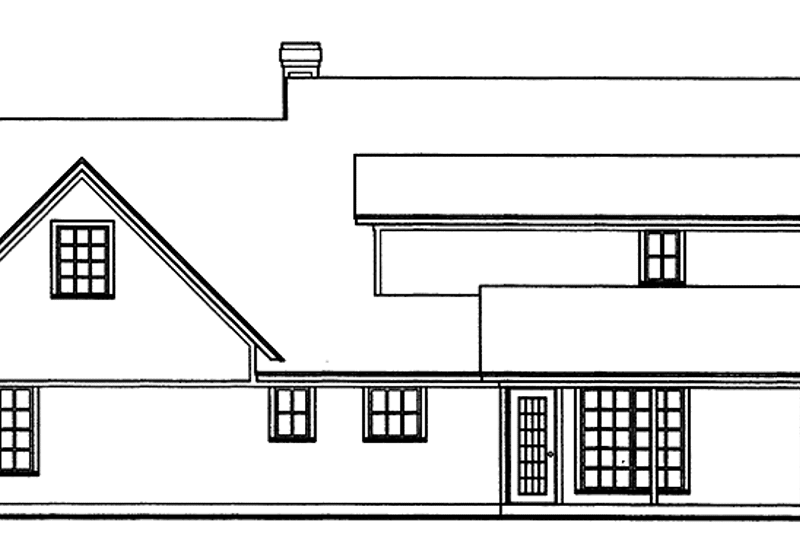

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

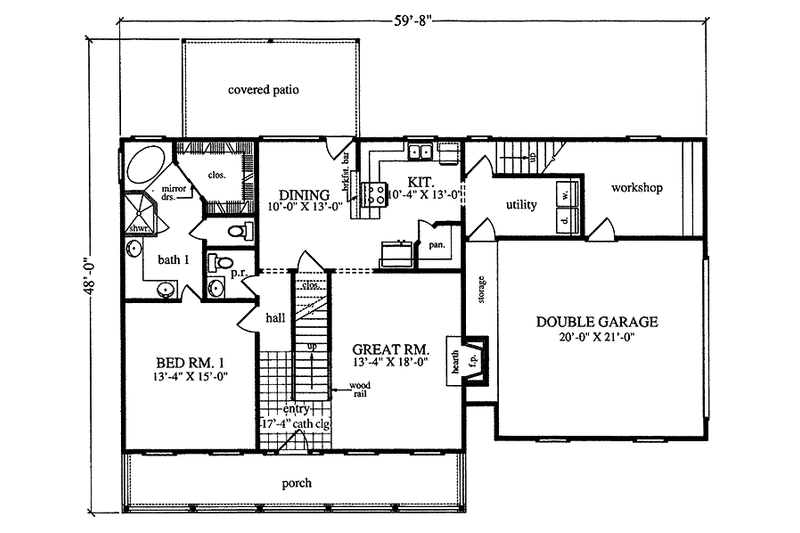

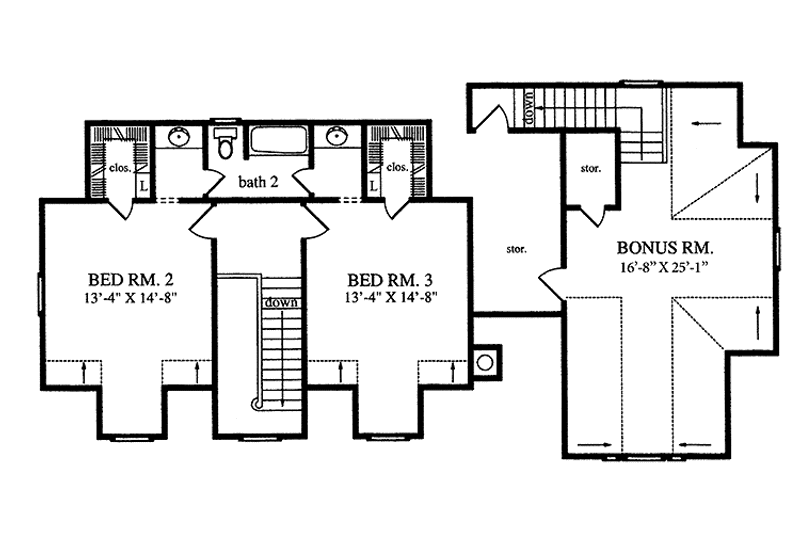

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$900.00
$950.00
$950.00
$850.00
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$175.00
$60.00
$100.00
$39.00
$100.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
