Plan Description

This sprawling ranch home possesses a floor plan designed to capture views to the rear of the lot. The skylit foyer introduces the living and dining rooms. The efficient kitchen, with a long center preparation island, built-in desk and snack bar, is open to both the breakfast room and the family room. A masonry barbecue sits back-to-back with the fireplace in the family room. A lavish master bath adorns the master suite. It contains a whirlpool spa under a glass-block wall, a double vanity and separate shower. The family bedrooms share a bath that includes a twin-sink vanity and a soaking tub.

Floor Plans

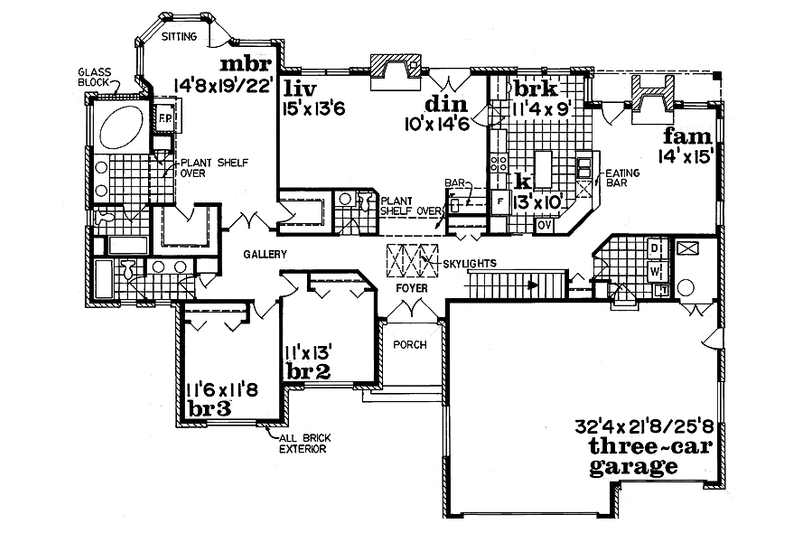

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 60' 8"

Height : 22'

Width : 76' 8"

Area

First Floor: 2418 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Brick

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Additional Room Features

Family Room Keeping Room

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

3rd BR Closet:

16 sq/ft width 2' x depth 8' 2"

Basement Foundation:

3807 sq/ft width 49' 8" x depth 76' 8"

Bedroom 2:

119 sq/ft width 10' 8" x depth 11' 2"

Bedroom 2 Closet:

15 sq/ft width 2' x depth 7' 10"

Bedroom 3:

136 sq/ft width 11' 10" x depth 11' 6"

Bedroom 3 Closet:

15 sq/ft width 2' x depth 7' 10"

Breakfast Room:

101 sq/ft width 9' x depth 11' 4"

Crawlspace Foundation:

3807 sq/ft width 49' 8" x depth 76' 8"

Dining Room:

174 sq/ft width 17' 5" x depth 10'

Foyer:

96 sq/ft width 12' x depth 8'

Gathering Room:

216 sq/ft width 15' 10" x depth 13' 8"

Hall Bathroom:

65 sq/ft width 5' x depth 13'

Hall Closet:

9 sq/ft width 2' x depth 4' 6"

Kitchen:

144 sq/ft width 10' 10" x depth 13' 4"

Living Room:

202 sq/ft width 13' 6" x depth 15'

Master Bathroom:

114 sq/ft width 17' 8" x depth 6' 6"

Master Bedroom:

343 sq/ft width 22' 8" x depth 15' 2"

Master Closet:

34 sq/ft width 6' x depth 5' 10"

Porch - Front:

64 sq/ft width 8' x depth 8'

Porch - Rear:

27 sq/ft width 3' x depth 9'

Powder Room:

33 sq/ft width 6' x depth 5' 6"

Storage:

39 sq/ft width 7' 4" x depth 5' 4"

Utility Room:

63 sq/ft width 7' 4" x depth 8' 8"

Walk-In Closet:

47 sq/ft width 5' 2" x depth 9' 2"

What's Included In This Plan Set

See a sample plan set

Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

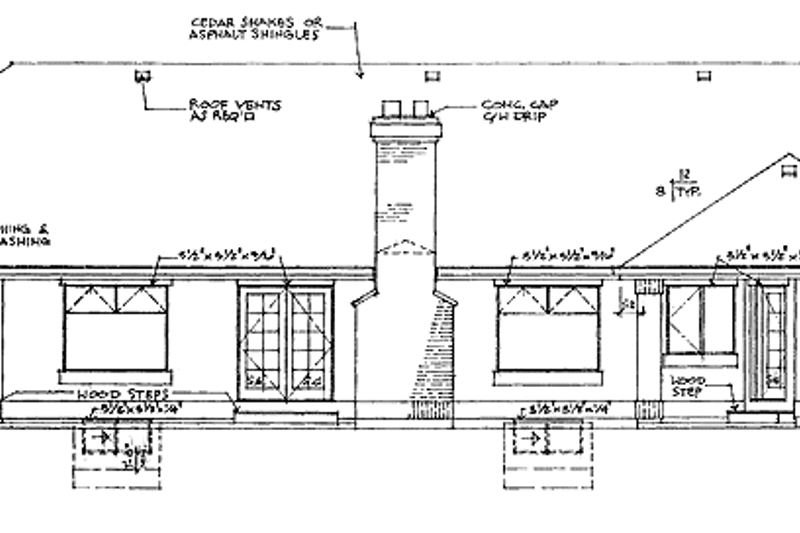

Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.

Questions? Call 1-866-445-9085

Plan Set

PDF Set:
$1013.17

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1130.98

5 printed plan sets mailed to you.

8 Copy Set:
$1248.79

8 printed plan sets mailed to you.

Reproducible Set:
$1248.79

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$2026.33

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Daylight Basement:
$233.75

Ideal for sloping lot, lower level of home partially underground.

Slab:
$233.75

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$165.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$51.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$420.75

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$127.50

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$127.50

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List:
$72.25

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets:
$0.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unlimited Use License:
$845.75

Allows you to build this home as many times as you want.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
