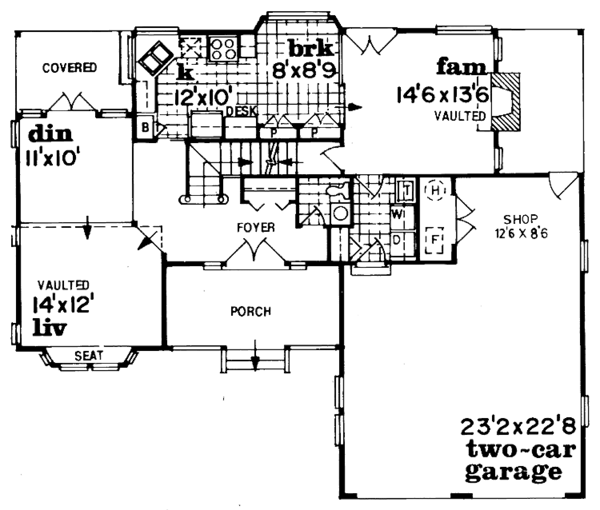

A covered veranda with decorative trim shelters the double doors which open to the vaulted foyer on this plan. The vaulted ceiling continues into the sunken living room. The adjacent dining room has a French door to a rear covered porch. The informal area stretches along the back of the home and includes a kitchen, breakfast room and family room. The kitchen offers an angled sink under corner windows, a built-in desk and abundant pantry storage. The family room is vaulted and features a fireplace. Bedrooms are on the second floor and include a master suite and two family bedrooms. Bedroom 3 and the master suite have vaulted ceilings; Bedroom 2 has a built in desk.
1332 sq/ft width 32' 6" x depth 41'
98 sq/ft width 10' x depth 9' 10"
109 sq/ft width 9' 6" x depth 11' 6"
70 sq/ft width 8' 9" x depth 8'
1527 sq/ft width 32' 6" x depth 47'
110 sq/ft width 10' x depth 11'
66 sq/ft width 6' x depth 11'
525 sq/ft width 22' 8" x depth 23' 2"
195 sq/ft width 13' 6" x depth 14' 6"
41 sq/ft width 8' x depth 5' 2"
120 sq/ft width 10' x depth 12'
168 sq/ft width 12' x depth 14'
81 sq/ft width 13' 6" x depth 6'
162 sq/ft width 13' 6" x depth 12'
Porch - Front:
133 sq/ft width 8' x depth 16' 8"
21 sq/ft width 4' 6" x depth 4' 8"
28 sq/ft width 8' 2" x depth 3' 6"
51 sq/ft width 8' 2" x depth 6' 4"
