Key Specs
2335
sq ft
3
Beds
3
Baths
2
Floors
2
Garages
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
PLAN 47-836
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 58' 10"
Height : 28'
Width : 44'
Area
First Floor: 1463 sq/ft height 8'
Second Floor: 872 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Rooms
3rd BR Closet:
21 sq/ft width 4' 4" x depth 5'
Basement Foundation:
1596 sq/ft width 38' x depth 42'
Bedroom 2:
106 sq/ft width 10' 4" x depth 10' 4"
Bedroom 2 Closet:
14 sq/ft width 2' x depth 7'
Bedroom 3:
132 sq/ft width 12' x depth 11'
Bedroom 3 Closet:
14 sq/ft width 2' x depth 7'
Bedroom 4:
132 sq/ft width 12' x depth 11'
Bedroom 4 Closet:
32 sq/ft width 4' 10" x depth 6' 8"
Breakfast Room:
93 sq/ft width 11' x depth 8' 6"
Crawlspace Foundation:
1596 sq/ft width 38' x depth 42'
Den/Office or Bedroom 1:
108 sq/ft width 12' x depth 9'
Dining Room:
150 sq/ft width 12' 6" x depth 12'
Foyer:
43 sq/ft width 7' 4" x depth 6'
Garage:
497 sq/ft width 23' 8" x depth 21'
Gathering Room:
192 sq/ft width 16' x depth 12'
Hall Bathroom:
54 sq/ft width 6' 6" x depth 8' 4"
Hall Closet:
10 sq/ft width 5' x depth 2'
Kitchen:
96 sq/ft width 8' x depth 12'
Living Room:
216 sq/ft width 12' x depth 18'
Master Bathroom:
159 sq/ft width 11' x depth 14' 6"
Master Bedroom:
204 sq/ft width 17' x depth 12'
Master Closet:
19 sq/ft width 2' x depth 9' 6"
Porch - Front:
165 sq/ft width 33' x depth 5'
Porch - Left:
116 sq/ft width 5' x depth 23' 4"
Porch - Rear:
65 sq/ft width 13' x depth 5'
Porch - Right:
73 sq/ft width 5' x depth 14' 8"
Powder Room:
19 sq/ft width 6' 6" x depth 3'
Storage:
26 sq/ft width 7' 6" x depth 3' 6"
Utility Room:
49 sq/ft width 6' x depth 8' 4"
Walk-In Closet:
45 sq/ft width 6' 10" x depth 6' 8"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

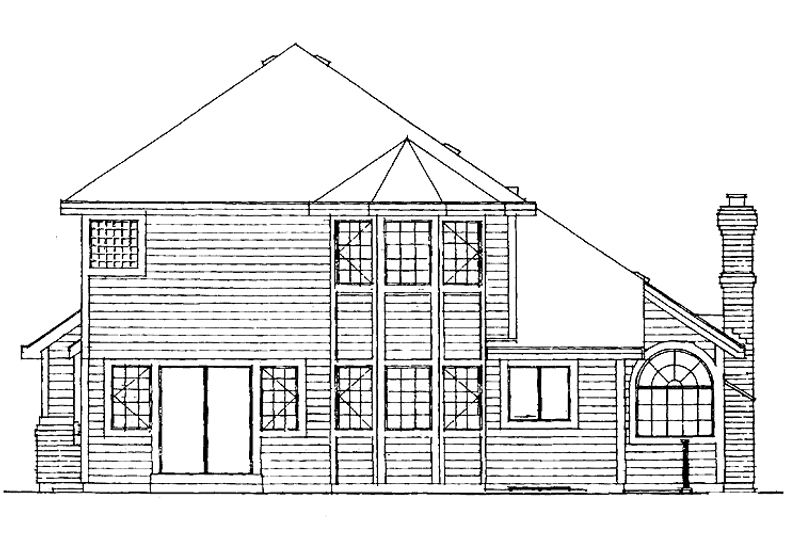

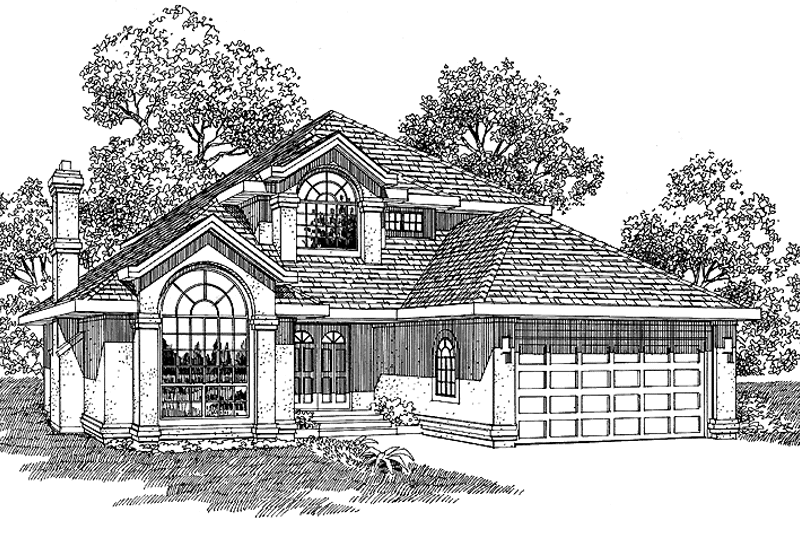

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

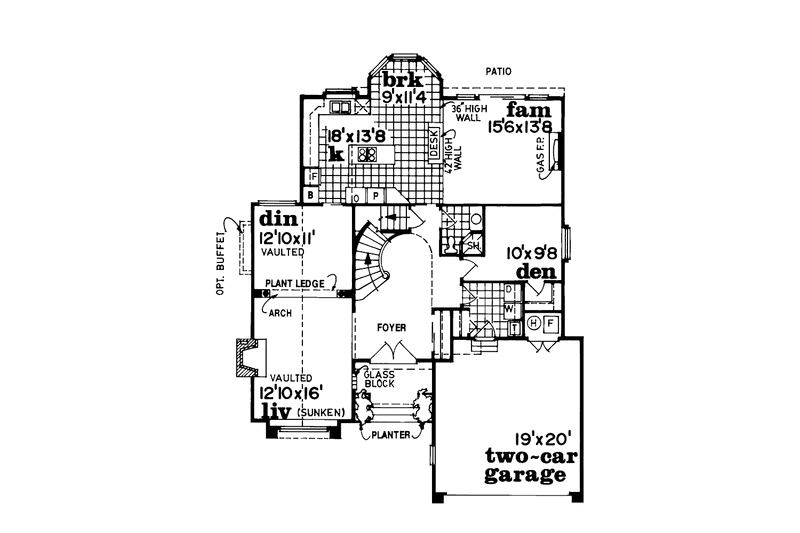

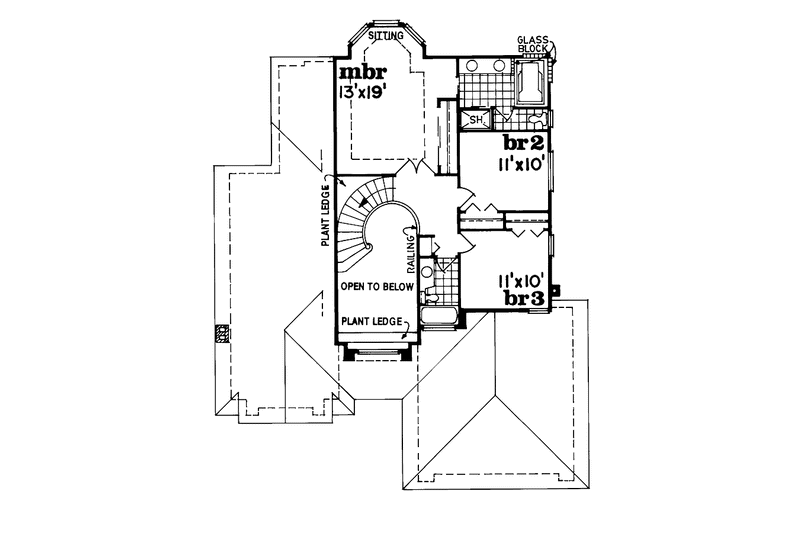

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1013.17
$1130.98
$1248.79
$1248.79
$2026.33
Foundation
$0.00
$0.00
$233.75
$233.75
Framing
$0.00
Additional Options
$165.75
$51.00
$420.75
$127.50
$420.75
$33.15
$127.50
$72.25
$0.00
$845.75
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
