PLAN 406-9654
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 74' 8"
Height : 27' 1"
Width : 64' 4"
Area
Garage : 699 sq/ft
Main Floor : 2298 sq/ft
Porch : 300 sq/ft
Ceiling
Ceiling Details : Beamed Living Room ceiling; tray ceiling in Master Bedroom
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 14:12
Exterior Wall Framing
Exterior Wall Finish : Brick, Stone and Stucco
Framing : 2 x 4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Garage Features
Rear Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Empty Nester
Rooms
Bedroom 2:
width 11' 4" x depth 14'
Bedroom 3:
width 11' 4" x depth 12'
Bedroom 4:
width 13' 8" x depth 11' 4"
Covered Front Porch:
width 18' x depth 4' 9"
Covered Rear Porch:
width 18' 2" x depth 11' 8"
Dining Room:
width 11' 2" x depth 9' 6"
Foyer:
width 6' 6" x depth 9' 6"
Kitchen:
width 11' x depth 25'
Laundry:
width 9' 8" x depth 6' 1"
Living Room:
width 18' 5" x depth 19' 4"
Master Bath:
width 9' 4" x depth 13' 6"
Master Bedroom:
width 12' 11" x depth 17' 5"

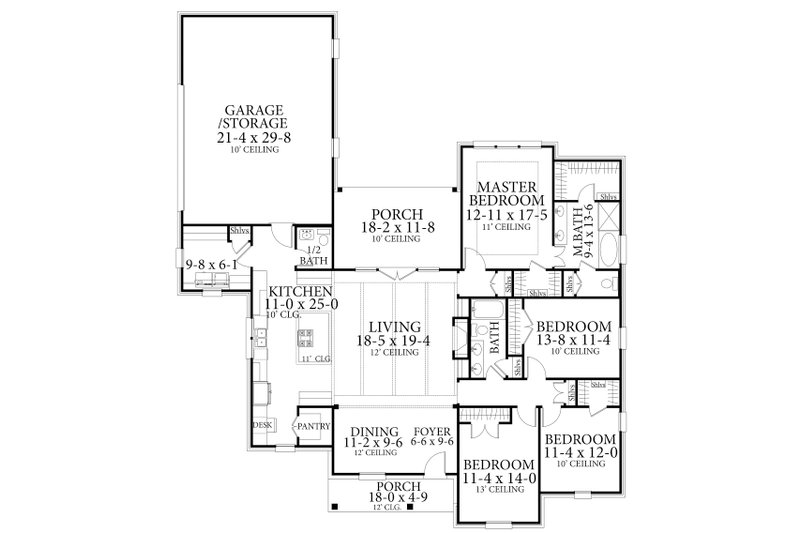

What's Included In This Plan Set
- The first sheet is the cover sheet which outline the Design Criteria and Construction Notes, such as general site, foundation, framing and mechanical notes
- The second sheet is typically the front and side elevation drawn to 1/4" scale.
- The third sheet is the rear and side elevation drawn to 1/4" scale.
- The foundation of your choice (slab or crawlspace ). Floor Plan 1/4" Scale
- Detail and Section Page
- Cabinet elevations & Roof Plan
- Electrical Plan
- Foundation Details
Plan Set
$1260.00
$1455.00
$1630.00
$1760.00
$2215.00
$2715.00
Foundation
$0.00
$350.00
Framing
$0.00
$295.00
Additional Options
$255.00
$165.00
$295.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
