Plan Description
This cottage design floor plan is 1745 sq ft and has 3 bedrooms and 2 bathrooms.
Floor Plans

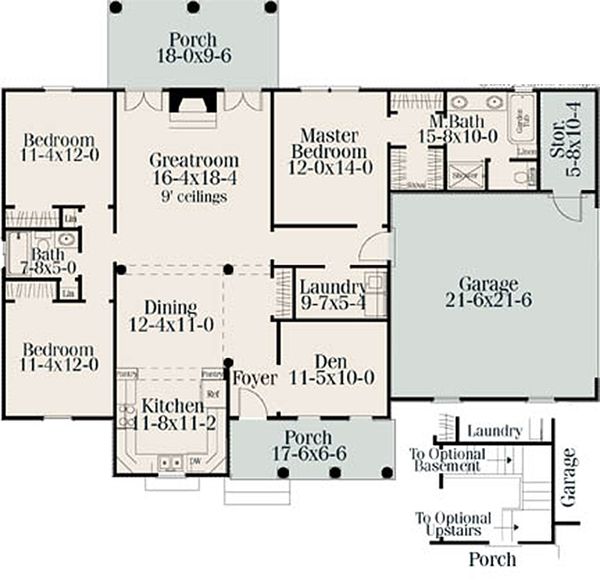

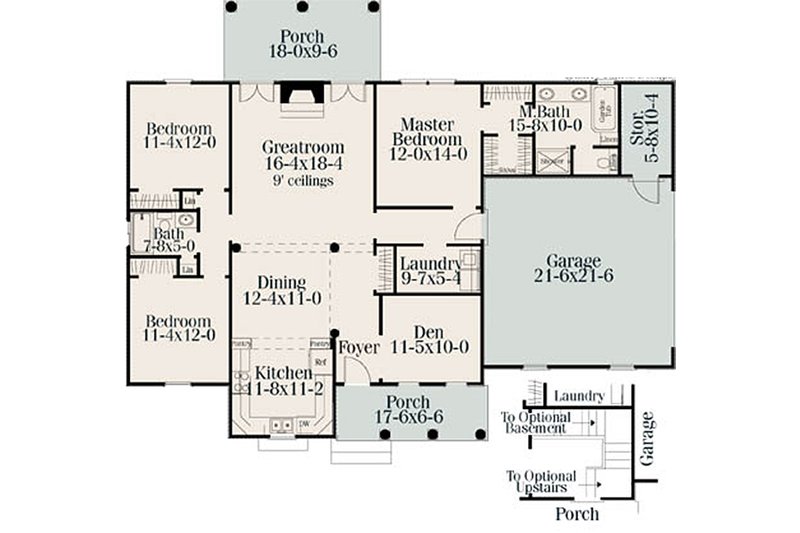

Floor Plan - Main Floor

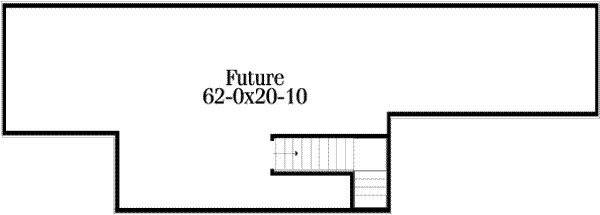

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 51'
Height : 24'
Width : 63'
Area
Garage : 556 sq/ft
Main Floor : 1745 sq/ft
Porch : 255 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Secondary Pitch : 10:12
Exterior Wall Framing
Framing : 2"x4"
Bedroom Features
Split Bedrooms
Walk In Closet
Additional Room Features
Den Office Study Computer
Great Room Living Room
Storage Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
- The first sheet is the cover sheet which outline the Design Criteria and Construction Notes, such as general site, foundation, framing and mechanical notes
- The second sheet is typically the front and side elevation drawn to 1/4" scale.
- The third sheet is the rear and side elevation drawn to 1/4" scale.
- The foundation of your choice (slab or crawlspace ). Floor Plan 1/4" Scale
- Detail and Section Page
- Cabinet elevations & Roof Plan
- Electrical Plan
- Foundation Details
