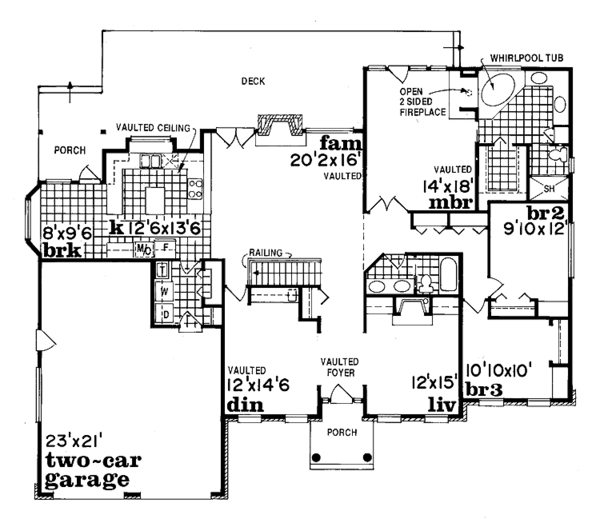

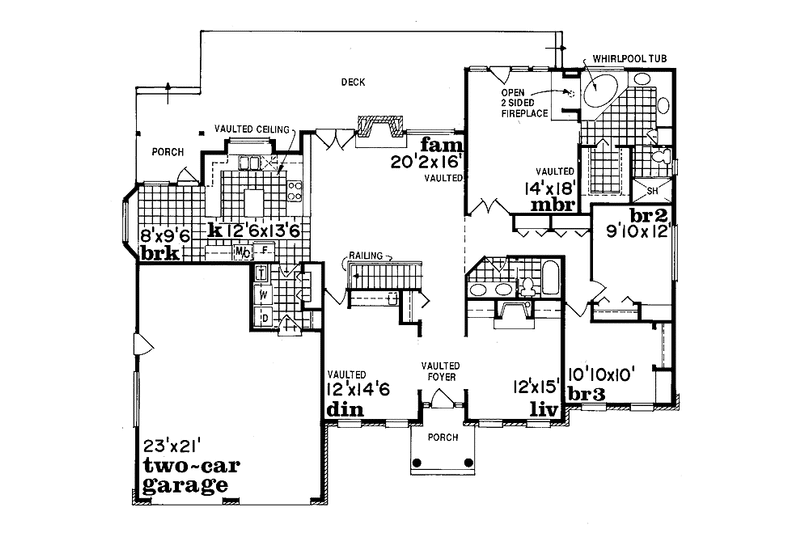

A high roofline on the exterior allows for a vaulted ceiling extending from the foyer to the family room. Formal living and dining rooms open off either side of the foyer. The fireplace in the living room is flanked by shelves, and the fireplace in the family room has a door that leads to the rear deck. Entertaining is easy with a wet bar in the dining room. Abundant windows and high vaulted ceilings create a bright and spacious atmosphere in the breakfast bay and kitchen. At the opposite end of the plan, the master bedroom, with its two-sided fireplace, accesses the deck. Two family bedrooms share a hall bath that has a double-bowl vanity.
3rd BR Closet:
11 sq/ft width 5' 6" x depth 2'
3799 sq/ft width 55' 4" x depth 68' 8"
114 sq/ft width 12' x depth 9' 6"
Bedroom 2 Closet:
11 sq/ft width 2' x depth 5' 8"
100 sq/ft width 10' x depth 10'
Bedroom 3 Closet:
11 sq/ft width 2' x depth 5' 8"
76 sq/ft width 9' 6" x depth 8'
1533 sq/ft width 22' 4" x depth 68' 8"
174 sq/ft width 14' 6" x depth 12'
77 sq/ft width 14' 6" x depth 5' 4"
483 sq/ft width 21' x depth 23'
26 sq/ft width 1' 4" x depth 20' 2"
60 sq/ft width 5' x depth 12'
8 sq/ft width 4' x depth 2'
168 sq/ft width 13' 6" x depth 12' 6"
180 sq/ft width 12' x depth 15'
189 sq/ft width 16' 6" x depth 11' 6"
252 sq/ft width 18' x depth 14'
Porch - Front:
64 sq/ft width 8' x depth 8'
Porch - Rear:
55 sq/ft width 6' 6" x depth 8' 6"
48 sq/ft width 8' x depth 6'
42 sq/ft width 7' x depth 6'
