PLAN 417-851
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 64' 8"
Height : 20' 4"
Width : 50'
Area
First Floor: 1881 sq/ft
Garage: 427 sq/ft
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings
Outdoor Spaces
Courtyard
Covered Rear Porch
Rooms
Bedroom 2:
140 sq/ft width 12' 4" x depth 11' 4"
Bedroom 3:
123 sq/ft width 12' 4" x depth 10'
Bedroom 4:
170 sq/ft width 10' 8" x depth 16'
Covered Front Porch:
62 sq/ft
Covered Rear Porch:
185 sq/ft
Dining Room:
122 sq/ft width 11' 5" x depth 10' 8"
Family Room:
264 sq/ft width 16' x depth 16' 6"
Garage:
427 sq/ft width 19' 8" x depth 20'
Kitchen:
144 sq/ft width 12' 4" x depth 11' 8"
Master Bedroom:
191 sq/ft width 15' 8" x depth 12' 2"
Nook:
117 sq/ft width 11' 4" x depth 10' 4"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :

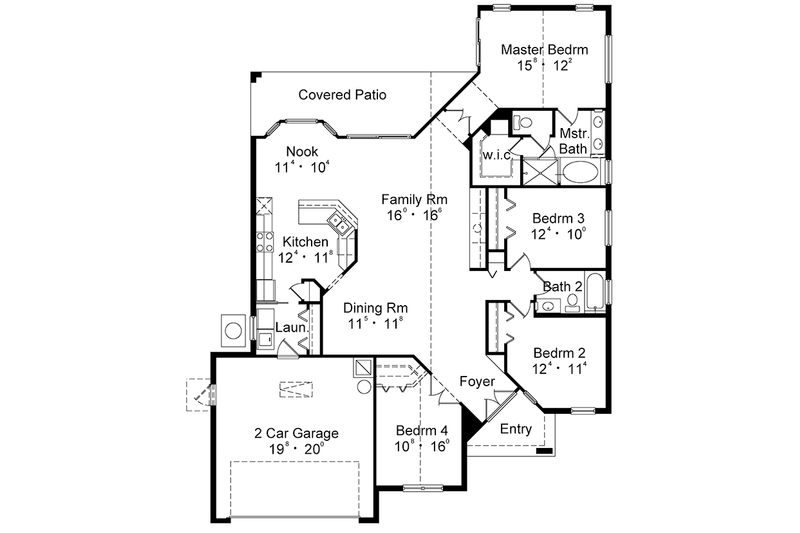

- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

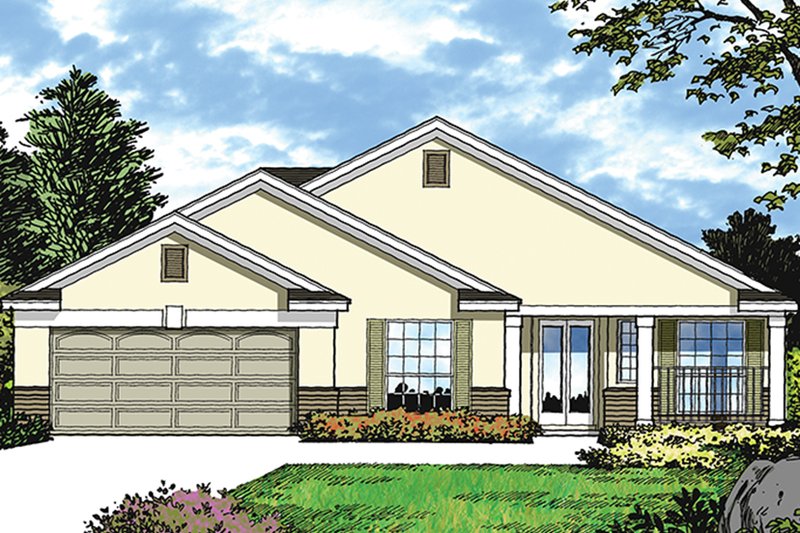

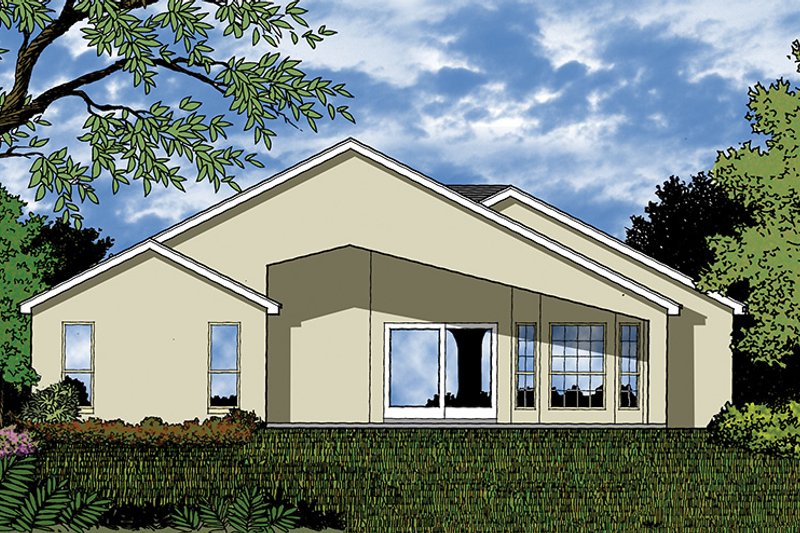

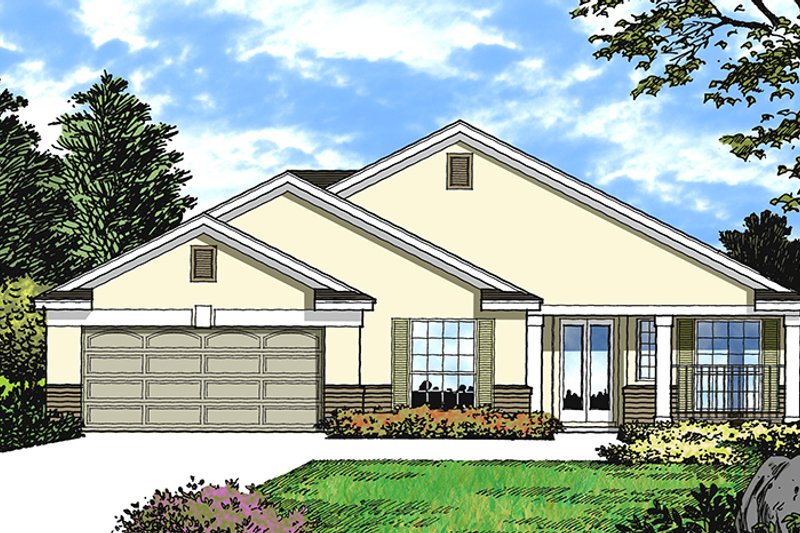

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$950.00
$1150.00
$1300.00
$1900.00
$600.00
Foundation
$0.00
Framing
$0.00
Additional Options
$50.00
$100.00
$39.00
$100.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
