PLAN 417-850

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description


This attractive plan is loaded with distinctive features commonly found only in custom homes. Plant shelves, built-in media cabinets and a bay window in the nook are just a few of the amenities that make this plan special. The master suite is accessed by French doors and has a vaulted ceiling and a luxurious master bath. The layout of the living spaces creates a feeling of unrivaled spaciousness.

Full Specs & Features


Dimension

Depth : 64' 8"

Height : 20' 4"

Width : 50'

Area

First Floor: 1881 sq/ft

Garage: 427 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features

Formal Dining Room

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchenette Wet Bar

Additional Room Features

Family Room Keeping Room

Main Floor Laundry

Open Floor Plan

Vaulted / Cathedral Ceilings

Outdoor Spaces

Courtyard

Covered Rear Porch

Rooms

Bedroom 2:

140 sq/ft width 12' 4" x depth 11' 4"

Bedroom 3:

140 sq/ft width 12' 4" x depth 11' 4"

Bedroom 4:

170 sq/ft width 10' 8" x depth 16'

Covered Front Porch:

62 sq/ft

Covered Rear Porch:

185 sq/ft

Dining Room:

122 sq/ft width 11' 5" x depth 10' 8"

Family Room:

264 sq/ft width 16' x depth 16' 6"

Garage:

427 sq/ft width 19' 8" x depth 20'

Kitchen:

144 sq/ft width 12' 4" x depth 11' 8"

Master Bedroom:

191 sq/ft width 15' 8" x depth 12' 2"

Nook:

117 sq/ft width 11' 4" x depth 10' 4"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

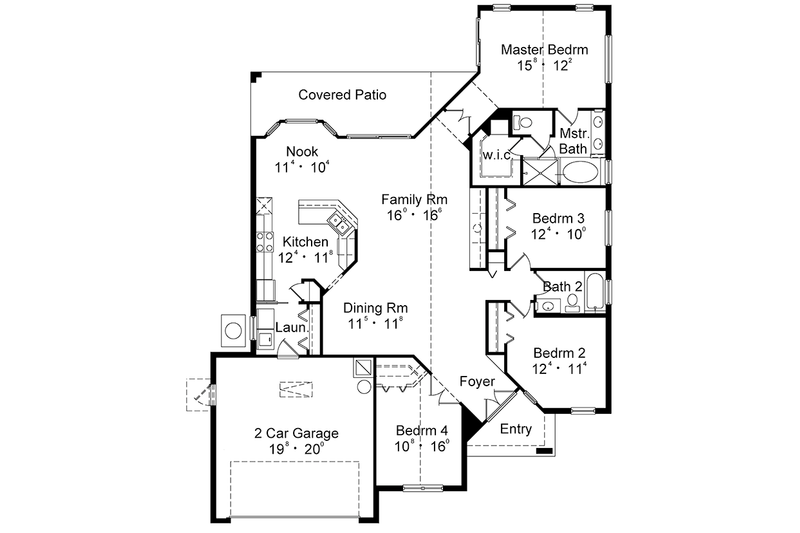

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
