PLAN 47-1035
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
This compact floor plan provides easy living on one level. The living and dining rooms are adjacent to one another and lead into the spacious kitchen with vaulted ceilings. The family room with fireplace opens to the kitchen. Living quarters are at the right side of the plan with a cozy master suite and three additional bedrooms.
Floor Plans

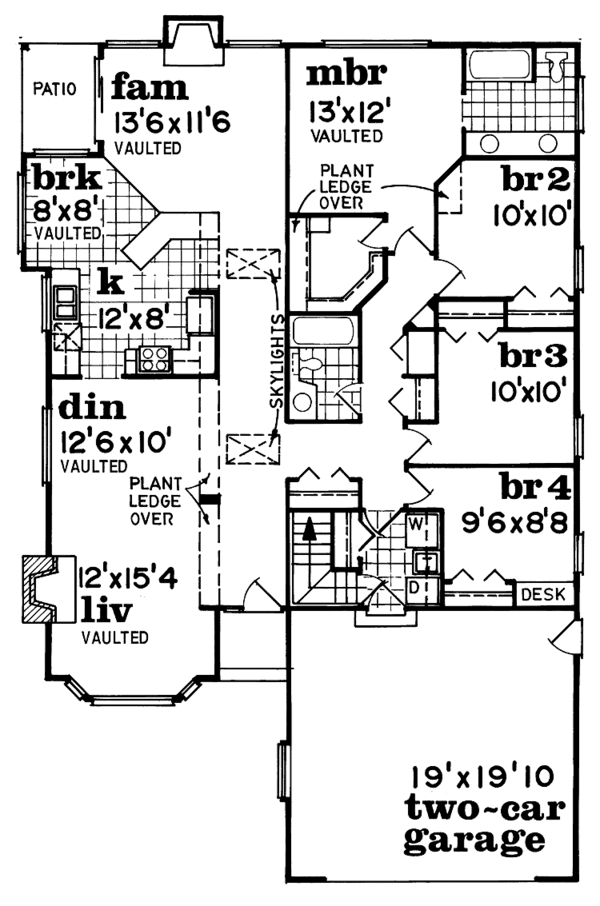

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 63' 8"
Height : 19'
Width : 40'
Area
First Floor: 1805 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Living Room / Parlor
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
100 sq/ft width 10' x depth 10'
Bedroom 3:
100 sq/ft width 10' x depth 10'
Bedroom 4:
82 sq/ft width 9' 6" x depth 8' 8"
Breakfast:
64 sq/ft width 8' x depth 8'
Dining Room:
125 sq/ft width 12' 6" x depth 10'
Family Room:
155 sq/ft width 13' 6" x depth 11' 6"
Kitchen:
96 sq/ft width 12' x depth 8'
Living Room:
183 sq/ft width 12' x depth 15' 4"
Master Bedroom:
156 sq/ft width 13' x depth 12'
