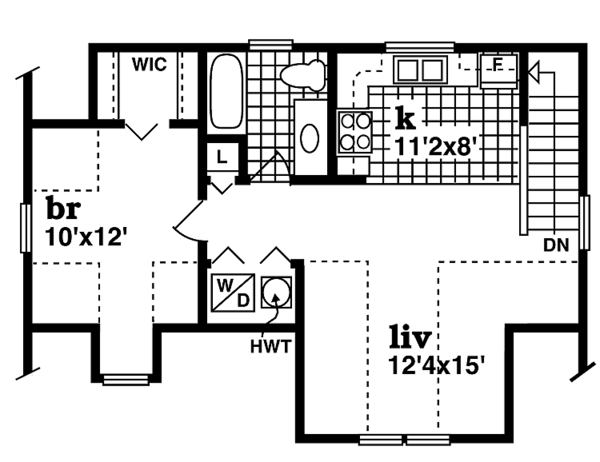

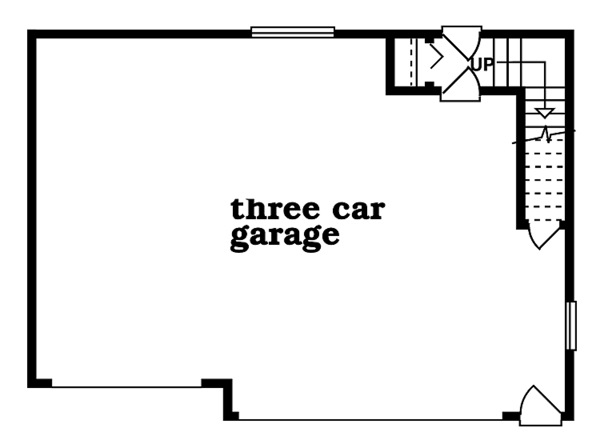

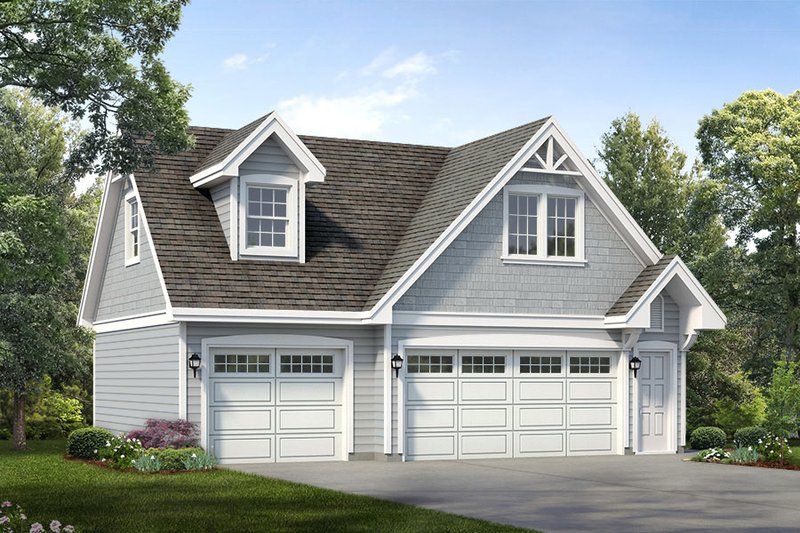

Shingles and craftsman elements adorn the exterior of this appealing plan. A three-car garage fills the lower level, while a roomy apartment resides above. The 676 square feet of living space includes an L-shaped kitchen, light-filled living room, full bathroom and bedroom with a walk-in closet. Live in this charming home or use the space for rental income.
759 sq/ft width 23' x depth 33'
12 sq/ft width 3' 2" x depth 3' 11"
56 sq/ft width 7' 7" x depth 7' 6"
6 sq/ft width 3' 2" x depth 2'
90 sq/ft width 8' 1" x depth 11' 2"
179 sq/ft width 14' 11" x depth 12'
120 sq/ft width 12' x depth 10'
26 sq/ft width 4' 2" x depth 6' 4"
816 sq/ft width 24' x depth 34'
18 sq/ft width 3' 3" x depth 5' 10"
All plans are drawn at ¼” scale or larger and include :
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|5 Copy Set
|5 printed plan sets mailed to you.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|One printed set for bidding purposes only. Not a legal building set for construction.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
