ON SALE!

PLAN 47-940

Photographs may show modified designs.

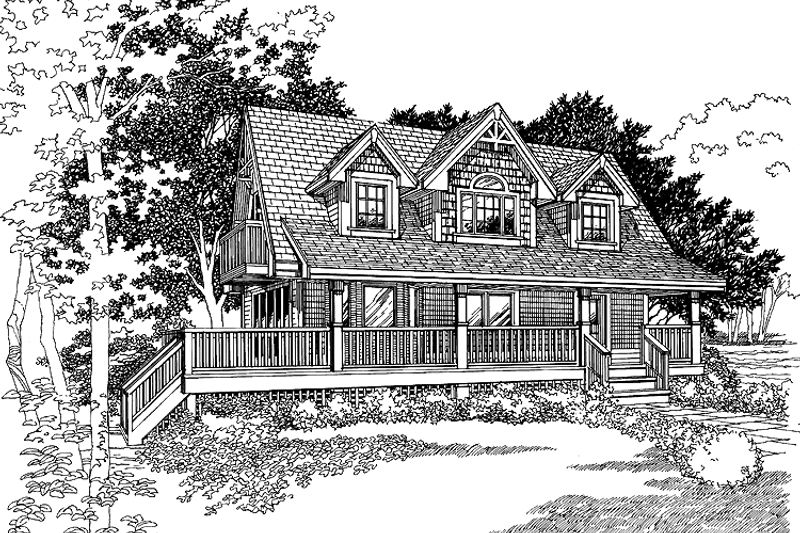

House Blueprint - Victorian Exterior - Front Elevation Plan #47-940

House Blueprint - Victorian Exterior - Rear Elevation Plan #47-940

House Blueprint - Victorian Floor Plan - Main Floor Plan #47-940

House Blueprint - Victorian Floor Plan - Upper Floor Plan #47-940

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Victorian House Plans

Key Specs

1365
sq ft

3
Beds

2
Baths

2
Floors

0
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$165.75
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$51.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Additional Use License	$420.75
	Allows you to build one more home for each additional license purchased.
	Audio Video Design	$127.50
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$250.75
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$33.15
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$127.50
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Material List	$72.25
	A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
	Mirror Reversed Sets$0.00 Printed sets showing plan in reverse, text and dimensions will be backwards.
	Unlimited Use License	$845.75
	Allows you to build this home as many times as you want.

Subtotal

NOW $785.40

You save $138.60 (15% savings)

Sale ends soon!

Also order by phone: 1-866-445-9085

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-866-445-9085

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBFALL

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 47-940

Home > Style > Victorian House Plans

Key Specs

1365
sq ft

3
Beds

2
Baths

2
Floors

0
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description

This distinctive vacation home is designed ideally for a gently sloping lot, which allows for a daylight basement. It can, however, accommodate a flat lot nicely. An expansive veranda sweeps around two sides of the exterior and is complemented by full-height windows. Decorative woodwork and traditional multipane windows belie the contemporary interior. An open living/dining room area, with a woodstove and two bay windows, is complemented by a galley-style kitchen. A bedroom, or den, on the first floor has the use of a full bath. The second floor holds a master bedroom with a balcony and one family bedroom. Both second-floor bedrooms have dormer windows and share a full bath that has a vaulted ceiling.

Floor Plans

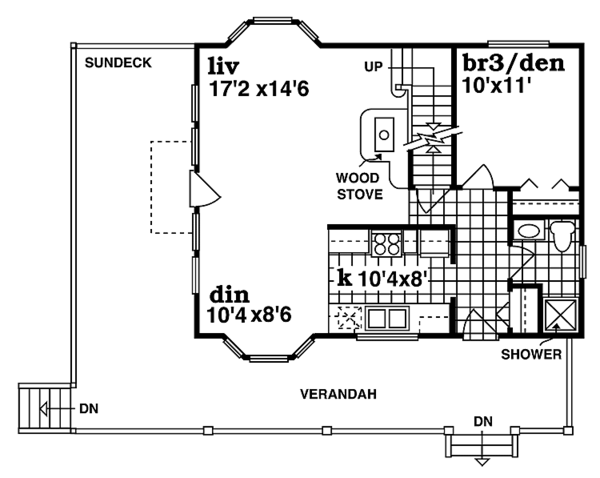

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

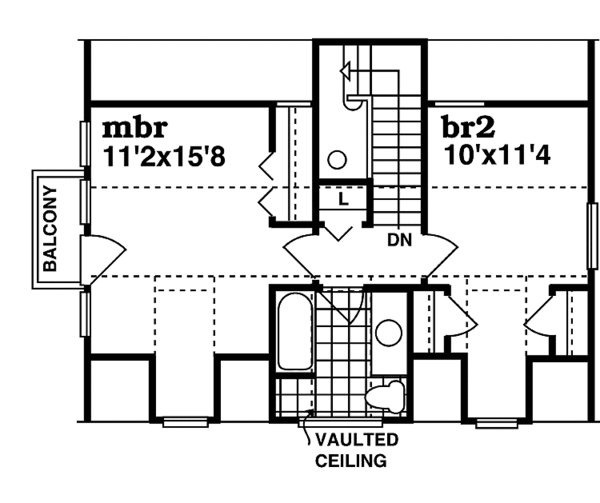

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 32'

Height : 32'

Width : 42'

Area

First Floor: 792 sq/ft height 8'

Second Floor: 573 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12

Roof Framing : Conventional

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Kitchen Features

Breakfast Nook

Additional Room Features

Den Office Study Computer

Outdoor Spaces

Covered Front Porch

Deck

Rooms

3rd BR Closet:

10 sq/ft width 2' x depth 5' 5"

Basement Foundation:

768 sq/ft width 24' x depth 32'

Bathroom 2:

57 sq/ft width 7' 8" x depth 7' 6"

Bedroom 2:

113 sq/ft width 11' 4" x depth 10'

Bedroom 2 Closet:

8 sq/ft width 4' x depth 2'

Bedroom 3:

110 sq/ft width 11' x depth 10'

Bedroom 3 Closet:

8 sq/ft width 4' x depth 2'

Crawlspace Foundation:

768 sq/ft width 24' x depth 32'

Deck:

240 sq/ft width 10' x depth 24'

Dining Room:

87 sq/ft width 8' 6" x depth 10' 4"

Hall:

45 sq/ft width 10' 8" x depth 4' 3"

Hall Bathroom:

50 sq/ft width 9' 4" x depth 5' 5"

Hall Closet:

7 sq/ft width 3' 8" x depth 2'

Kitchen:

82 sq/ft width 8' x depth 10' 4"

Living Room:

248 sq/ft width 14' 6" x depth 17' 2"

Master Bedroom:

174 sq/ft width 15' 8" x depth 11' 2"

Master Closet:

14 sq/ft width 7' 4" x depth 2'

Porch - Front:

336 sq/ft width 8' x depth 42'

What's Included In This Plan Set

See a sample plan set

Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.

Questions? Call 1-866-445-9085

Plan Set

PDF Set:
$785.40

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$897.60

5 printed plan sets mailed to you.

8 Copy Set:
$1009.80

8 printed plan sets mailed to you.

Reproducible Set:
$1009.80

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$1570.80

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Daylight Basement:
$233.75

Ideal for sloping lot, lower level of home partially underground.

Slab:
$233.75

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$165.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$51.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$420.75

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$127.50

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$127.50

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List:
$72.25

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets:
$0.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unlimited Use License:
$845.75

Allows you to build this home as many times as you want.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
