PLAN 42-509
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

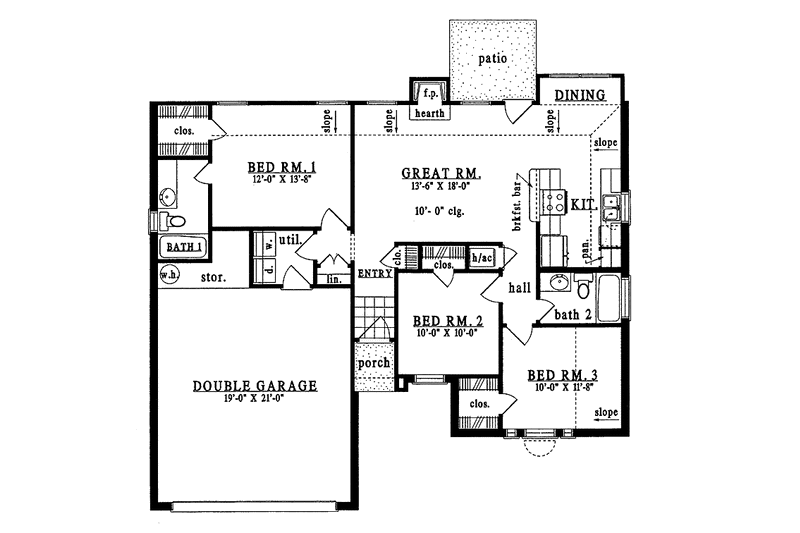

Floor Plans
Full Specs & Features
Dimension
Depth : 42' 9"
Height : 18'
Width : 47' 2"
Area
First Floor: 1182 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms
3rd BR Closet:
20 sq/ft width 4' x depth 5'
Bedroom 2:
100 sq/ft width 10' x depth 10'
Bedroom 2 Closet:
8 sq/ft width 2' x depth 4'
Bedroom 3:
116 sq/ft width 10' x depth 11' 8"
Bedroom 3 Closet:
8 sq/ft width 2' x depth 4'
Breakfast Room:
85 sq/ft width 8' 6" x depth 10'
Foyer:
360 sq/ft width 45' x depth 8'
Garage:
399 sq/ft width 19' x depth 21'
Garage Storage:
30 sq/ft width 2' 6" x depth 12'
Gathering Room:
243 sq/ft width 13' 6" x depth 18'
Hall Bathroom:
45 sq/ft width 5' x depth 9'
Hall Closet:
5 sq/ft width 2' x depth 2' 6"
Kitchen:
85 sq/ft width 8' 6" x depth 10'
Master Bathroom:
55 sq/ft width 5' x depth 11'
Master Bedroom:
164 sq/ft width 12' x depth 13' 8"
Master Closet:
25 sq/ft width 5' x depth 5'
Porch - Front:
30 sq/ft width 5' x depth 6'
Porch - Rear:
72 sq/ft width 8' x depth 9'
Utility Room:
31 sq/ft width 5' 4" x depth 6'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$750.00
$800.00
$800.00
$700.00
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$175.00
$60.00
$100.00
$39.00
$100.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
