Plan Description
Beautiful stonework detailing and a huge expanse of windows adorn the facade of
this contemporary home; an open floor plan with split bedrooms maximizes
space and privacy. A shared cathedral ceiling amplifies the kitchen as well as
the living/dining room combination. A wrapping deck can be reached via sliding
glass doors on either side of the corner fireplace. Two family bedrooms are
located on one side of the house, while the master bedroom maintains privacy on
the other. A well-appointed bath serves all three bedrooms.
Floor Plans

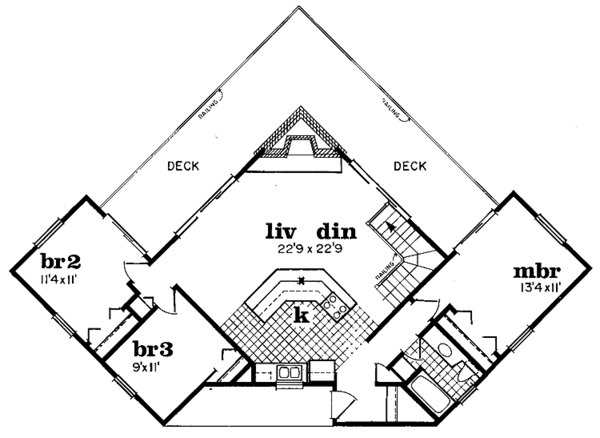

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 46'
Height : 23'
Width : 64' 6"
Area
First Floor: 1180 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 3:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Split Bedrooms
Additional Room Features
Great Room Living Room
Outdoor Spaces
Covered Rear Porch
Rooms
3rd BR Closet:
8 sq/ft width 2' x depth 4'
Basement Foundation:
2967 sq/ft width 46' x depth 64' 6"
Bedroom 2:
124 sq/ft width 11' 4" x depth 11'
Bedroom 2 Closet:
11 sq/ft width 2' x depth 5' 6"
Bedroom 3:
99 sq/ft width 9' x depth 11'
Bedroom 3 Closet:
11 sq/ft width 2' x depth 5' 6"
Foyer:
19 sq/ft width 5' x depth 3' 11"
Gathering Room:
517 sq/ft width 22' 9" x depth 22' 9"
Hall Bathroom:
53 sq/ft width 7' 5" x depth 7' 2"
Master Bedroom:
146 sq/ft width 13' 4" x depth 11'
Master Closet:
14 sq/ft width 2' x depth 7' 5"
Porch - Left:
249 sq/ft width 8' x depth 31' 2"
Porch - Right:
185 sq/ft width 8' x depth 23' 2"
