Full Specs & Features
Depth : 24'
Height : 19' 6"
Width : 30'
Garage: 384 sq/ft
Porch: 56 sq/ft
Bonus Ceiling : 8'
Main Ceiling : 10'
Primary Pitch : 12:12
Roof Framing : Truss
Roof Load : 47

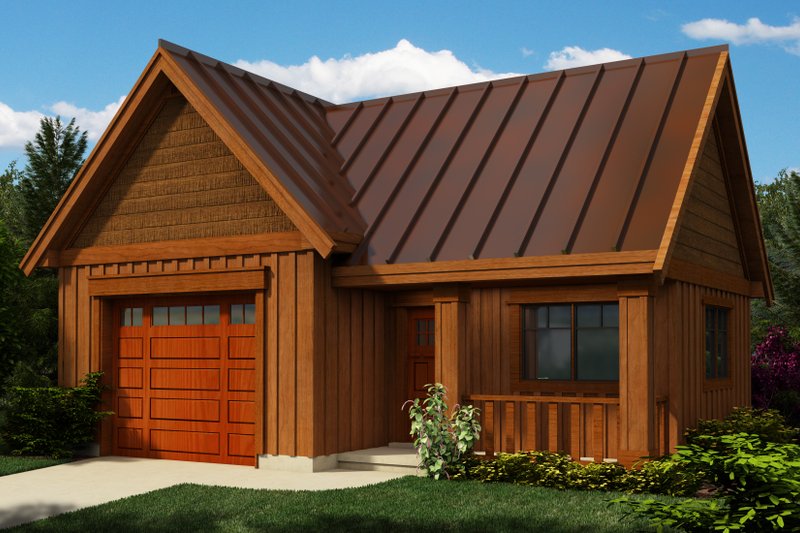

Roof Type : metal roof
Exterior Wall Framing
Exterior Wall Finish : vertical board and batten
Framing : 2"x4"
Insulation : 12
Upstairs Master Bedrooms
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Unfinished Future Space
Front Entry Garage
Friend S Entry
Suited For Narrow Lot
Covered Front Porch
Covered Rear Porch
Economical To Build

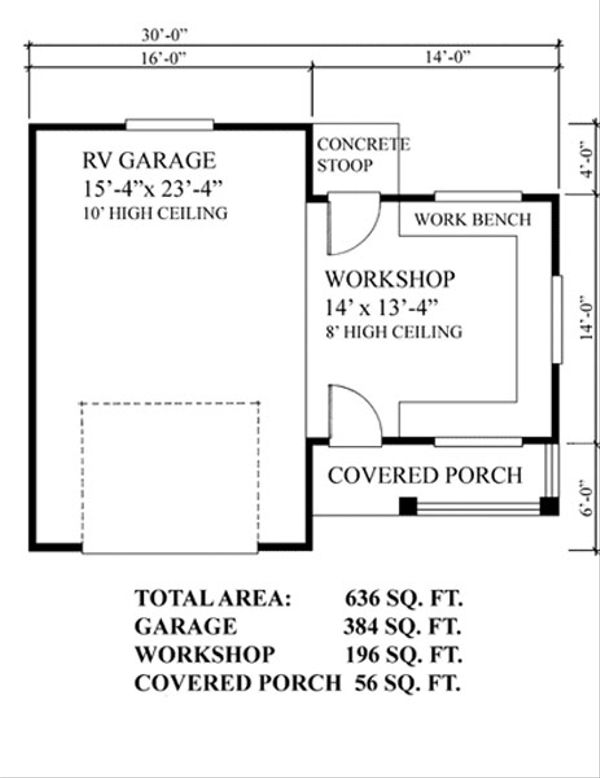

357 sq/ft width 15' 4" x depth 23' 4"
186 sq/ft width 14' x depth 13' 4"
What's Included In This Plan Set
- Cover sheet with rendering and art floor plans
- General notes and specifications
- Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″
- Foundation plan at 1/4″=1′-0″
- Main floor plan at 1/4″=1′-0″
- Second floor plan at 1/4″=1′-0″, if applicable
- Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs
- Electrical floor plans
- Minimum of two cross sections at 1/4″=1′-0″
- Details as required
- All four elevations at 1/4″=1′-0″
- Generic detail sheet
- Plans are engineered by a structural engineer, but not stamped or sealed
- Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf
- Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf
- Assumed soil bearing capacity 1560 psf
- Electrical fixtures / switches / smoke alarms by location only on floor plans
- Plumbing fixtures by location only on floor plans
- Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
