PLAN 118-103
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

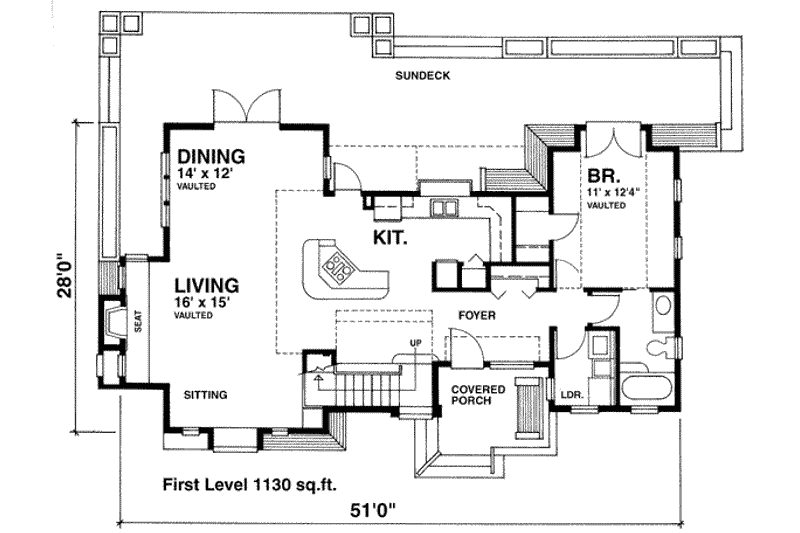

Floor Plans
Full Specs & Features
Dimension
Depth : 28'
Height : 23'
Width : 51'
Area
Main Floor : 1130 sq/ft
Upper Floor : 340 sq/ft
Ceiling
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 10:12
Exterior Wall Framing
Framing : 2"x6"
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Great Room Living Room
Loft
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Balcony
Grill Deck Sundeck
More
Suited For Vacation Home
What's Included In This Plan Set
- Cover sheet with rendering and art floor plans
- General notes and specifications
- Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″
- Foundation plan at 1/4″=1′-0″
- Main floor plan at 1/4″=1′-0″
- Second floor plan at 1/4″=1′-0″, if applicable
- Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs
- Electrical floor plans
- Minimum of two cross sections at 1/4″=1′-0″
- Details as required
- All four elevations at 1/4″=1′-0″
- Generic detail sheet
- Plans are engineered by a structural engineer, but not stamped or sealed
- Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf
- Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf
- Assumed soil bearing capacity 1560 psf
- Electrical fixtures / switches / smoke alarms by location only on floor plans
- Plumbing fixtures by location only on floor plans
- Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations
Plan Set
$756.00
Foundation
$0.00
Additional Options
$132.00
$236.00
$31.20
$132.00
$76.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
