Key Specs


Plan Sq Ft

891
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

0
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$156.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
$40.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License
$396.00
Allows you to build one more home for each additional license purchased.
Audio Video Design
$120.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List
$236.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide
$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$120.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets
$0.00
Printed sets showing plan in reverse, text and dimensions will be backwards.
Unlimited Use License
$796.00
Allows you to build this home as many times as you want.
Subtotal
NOW $686.40
You save $171.60 (20% savings)
Sale ends soon!
Best Price Guaranteed*
Also order by phone: 1-866-445-9085

Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-866-445-9085
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.


Wow!
Cost to Build Reports
Only $1.99 for Black Friday
Use Code CTBBF (limit 1)
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 497-23

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description


This project presented an opportunity to introduce homeowners and the design community to combinations of ideas all aimed at making life better, easier, and more sustainable. Design ideas that embrace sustainability, accessibility, survivability, affordability, and community integration are employed into a series of design solutions that accomplish multiple goals. The goal was to pair diverse design considerations together in an effort to find synergistic opportunities where multiple criteria are satisfied with a single design idea. The outdoor space is not just a place of deck and patios; rather, the outdoor spaces are utilized to fulfill specific programmatic roles. The first platform raised off the sidewalk becomes an outdoor foyer. This buffer space would be great for catching some sun and enjoying a game of dominos or cards with a neighbor. It also acts as a buffer or foyer to the outdoor living room up above. Two large planters frame the space and help with the visual transition between the raised living spaces and the ground plane. The highest outdoor platform, the outdoor living room, features shelves that double as a deck railing. The outdoor living room mirrors the indoor living room and a single TV could be turned around to enable viewing either indoors or in the shaded comfort of the front porch. Gardening is a great hobby but can be backbreaking work. In the front yard the vertical garden includes a series of planter trays that improve the ergonomics of gardening. Potted plants can be dropped into these different sized trays creating a colorful and fragrant wall of flowers or a handy outdoor pantry full of tasty veggies. In the back yard, elevated planting beds raise food crops above contaminated ground plane while also making gardening more comfortable. The great room features a series of ideas that simultaneously save money, generously accommodate a wheelchair and reduce construction waste. Open shelf cabinets allow for easier wheel chair access to counters and an open plan gives space for maximum maneuverability. The kitchen is large enough for preparing a large family meal while also size and budget appropriate for those whose common culinary efforts involve a microwave. The counter to the left of the stove serves as a “flex space” - it could be used as a desk or extra kitchen work surface. Consolidating the microwave, refrigerator, and an open pantry into a single wall makes it is easy to get food out of the refrigerator and into the microwave for a quick, hot meal.

Full Specs & Features


Dimension

Depth : 61'

Height : 23' 10"

Width : 23'

Area

Main Floor : 891 sq/ft

Porch : 450 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Common Area - Cathedral Ceiling

Main Ceiling : 10'

Roof

Primary Pitch : 8:12

Roof Framing : Truss/Stick

Roof Type : Gable

Exterior Wall Framing

Exterior Wall Finish : Fiber Cement and Clap Board Siding

Bedroom Features

Main Floor Bedrooms

Additional Room Features

Main Floor Laundry

Outdoor Spaces

Covered Front Porch

More

Economical To Build

Energy Efficient Features

Energy Efficient Design

What's Included In This Plan Set


House plans created for Green Living give our customers design options that meet or exceed existing energy standards, while giving options in the realm of cost, style, and environmental commitment. As an example, all Green Living homes are designed to perform 30% to 50% better than prescriptive building code energy performance. The level of home performance depends on the products that you choose.

Each Green Living house plan includes:

  • General Notes: Typically one sheet of general notes pertinent to the construction of the home
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

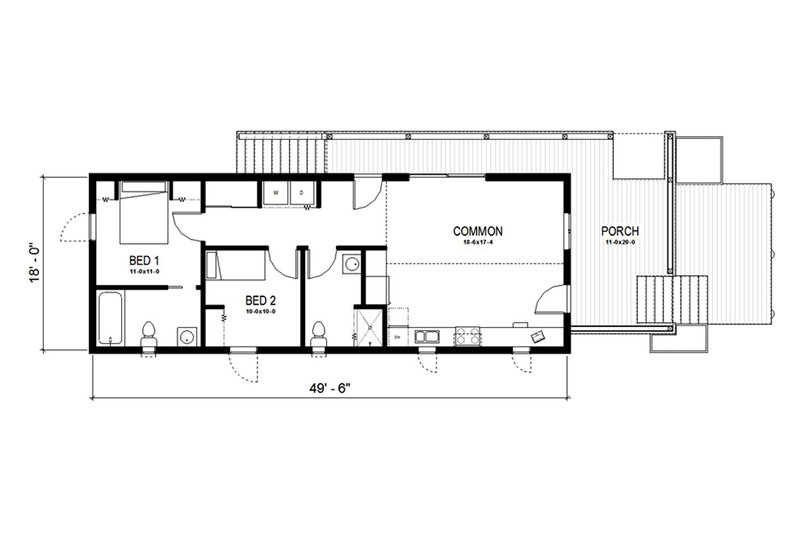

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Wall sections and other construction details: Detailed drawings showing wall connections, from foundation to the roof. wall connections to foundation, window installation, siding installation, stair details, and more.
  • Framing Plans: Drawn to 1/4" scale. The framing layout is intended to be a suggested layout only. Design loads & weather conditions vary by region. As a result the size, spacing & layout of all structural elements in this home design must be approved by a structural engineer and code official based on your specific site location prior to construction.
  • Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc. Note: Most Green Living plans have an electrical plan, however some do not. Please contact us to verify. Window shading details: External window shading devices are an effective method for reducing heat gains through windows during Summer. In fact, external shading devices can reduce heat gains by up to 80% if sized and built properly. With this in mind, the founders of Green Living, formerly Free Green, created this page to assist home builders in constructing effective window shading devices. The information we provide includes a zoning map of the United States, zoning charts for proper sizing of shading devices and a variety of shading device styles and materials to suite different tastes and different home designs.
  • LEED for Homes Rating System: Guidelines to meet LEED for Homes certification levels of: Certified, Silver, Gold, and Platinum. LEED for Homes is a national, voluntary certification system, developed by national experts and experienced builders, that promotes the design and construction of high-performance green homes and encourages the adoption of sustainable practices by the homebuilding industry. The LEED for Homes Rating System is part of the suite of nationally recognized LEED Green Building Rating Systems administered by USGBC. Like all LEED Rating Systems, it is the market's leadership system, targeting the top 25% of home building practices in terms of environmental responsibility. LEED provides industry resources and tools on how to "green" any new home. With LEED, homebuilders can differentiate their structures as meeting the highest performance measures, and homebuyers can readily identify high quality green homes. LEED provides national consistency in defining the features of a green home, enables builders anywhere in the country to obtain a green rating on their homes, and assures homebuyers of the quality of their purchases, all based on a recognized national brand.
