PLAN 117-845

Photographs may show modified designs.

Save

Key Specs


Plan Sq Ft

6375
sq ft

Plan Bedrooms

6
Beds

Plan Bathrooms

3
Baths

Plan Floors

3
Floors

Plan Garages

0
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Subtotal
$1650.00
Best Price Guaranteed*
Also order by phone: 1-866-445-9085
Cost-to-Build Estimates

Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-866-445-9085
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-866-445-9085
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 117-845

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Floor Plans

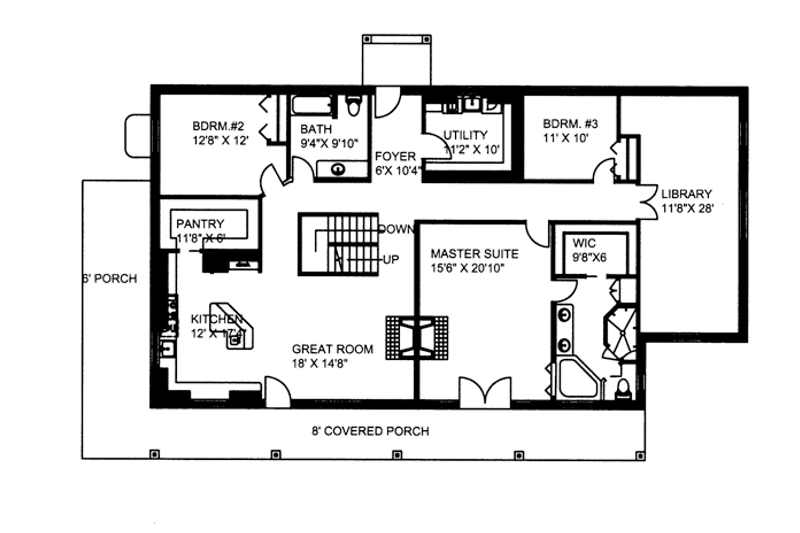

Floor Plan - Main Floor

Reverse
Save

BUILDER Advantage Program

https://www.blueprints.com

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

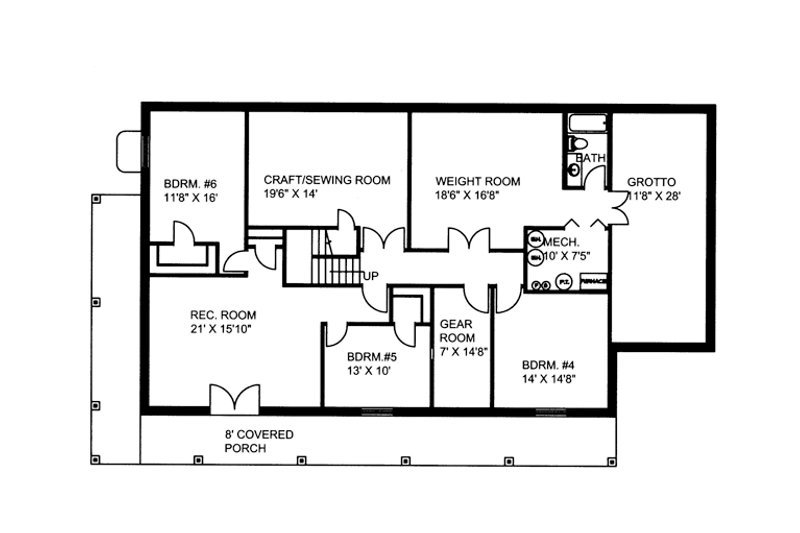

Floor Plan - Lower Floor

Reverse
Save

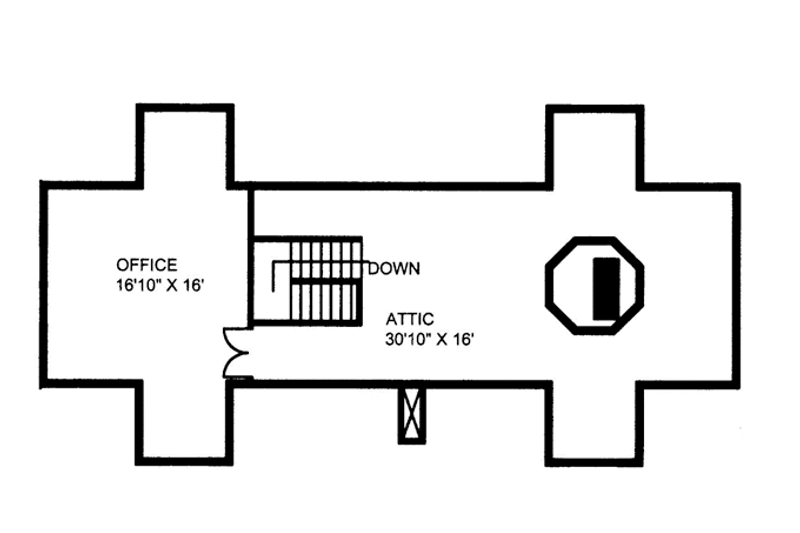

Floor Plan - Upper Floor

Reverse
Save

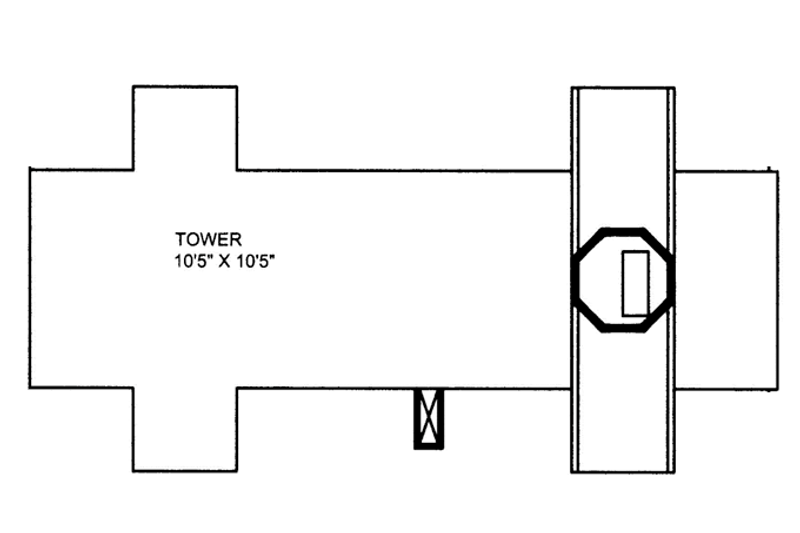

Floor Plan - Other Floor

Reverse
Save

Full Specs & Features


Dimension

Depth : 38'

Height : 41' 3"

Width : 70'

Area

Basement Living: 2564 sq/ft

First Floor: 2564 sq/ft height 9'

Second Floor: 1194 sq/ft height 9'

Third Floor: 53 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 3:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone

Framing : ICF (Insulated Concrete Forms)

Bedroom Features

Fireplace

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Hobby Rec Room Game Room

Main Floor Laundry

Open Floor Plan

Outdoor Spaces

Covered Front Porch

Wrap Around Porch

Rooms

Attic:

1194 sq/ft width 30' 10" x depth 16'

Bath 2:

width 9' 4" x depth 9' 10"

Bedroom 2:

width 12' 8" x depth 12'

Bedroom 3:

width 11' x depth 10'

Bedroom 4:

width 14' x depth 14' 8"

Bedroom 5:

width 13' x depth 10'

Craft Room:

width 19' 6" x depth 14'

Foyer:

width 6' x depth 10' 4"

Gear Room:

width 7' x depth 14' 8"

Great Room:

width 18' x depth 14' 8"

Grotto:

width 11' 8" x depth 28'

Kitchen:

width 12' x depth 17' 4"

Library:

width 11' 8" x depth 28'

Master Closet:

width 9' 8" x depth 6'

Master Suite:

width 15' 6" x depth 20' 10"

Mechanical Room:

width 10' x depth 7' 5"

Office:

width 16' 10" x depth 16'

Pantry:

width 11' 8" x depth 6'

Rec. Room:

width 21' x depth 15' 10"

Utility Room:

width 11' 2" x depth 10'

Weight Room:

width 18' 6" x depth 16' 8"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-866-445-9085

Plan Set

Reproducible Set:
$1650.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
5 Copy Set:
$1760.00
5 printed plan sets mailed to you.
CAD Single Build:
$1870.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set:
$1870.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Unlimited Build:
$2750.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Framing

Insulated Concrete Forms:
$0.00
Insulated Concrete Forms

Additional Options

Right-Reading Reverse:
$100.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$85.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
