PLAN 124-691
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

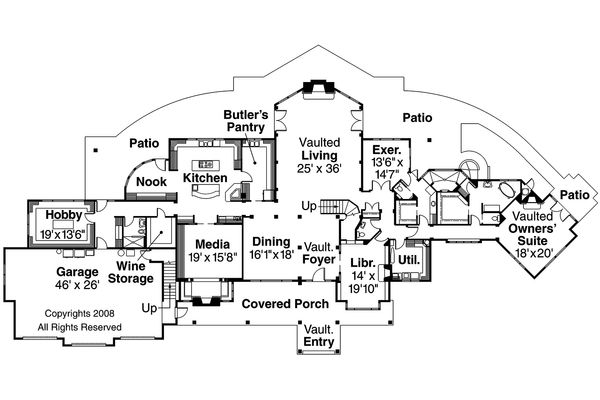

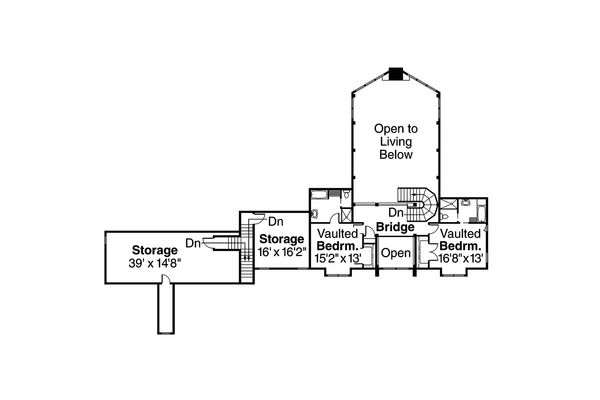

Floor Plans
Full Specs & Features
Dimension
Depth : 80' 2"
Height : 33' 6"
Width : 168' 10"
Area
Bonus: 1000 sq/ft height 10'
First Floor: 5315 sq/ft height 10'
Garage: 1335 sq/ft height 10'
Second Floor: 994 sq/ft height 10'
Ceiling
Main Ceiling : 10'
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Load : 25 psf
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Media Room
Storage Area
Unfinished Future Space
Wine Cellar
Garage Features
Front Entry Garage
Oversized Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Wrap Around Porch
More
Unusual Shape
Rooms
Bedroom 2:
258 sq/ft width 16' x depth 16' 2"
Bedroom 3:
216 sq/ft width 16' 8" x depth 13'
Dining Room:
251 sq/ft width 16' 1" x depth 15' 8"
Library:
297 sq/ft width 15' x depth 19' 10"
Living Room:
900 sq/ft width 25' x depth 36'
Master Suite:
306 sq/ft width 17' x depth 18'
Media Room:
297 sq/ft width 19' x depth 15' 8"
What's Included In This Plan Set
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
- Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
- Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
- Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
- Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
- Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
- Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
- Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
- Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
- Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Plan Set
$3300.00
$3950.00
$6675.00
$7350.00
$8050.00
$2650.00
Foundation
$0.00
$960.00
Framing
$0.00
$835.00
Additional Options
$575.00
$90.00
$2185.00
$165.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
