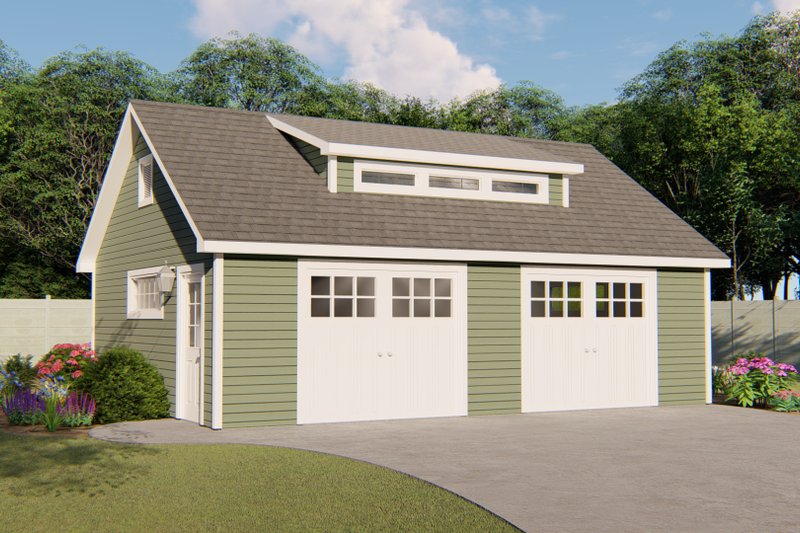

Full Specs & Features
Depth : 22'
Height : 15' 11"
Width : 28'
Garage : 616 sq/ft

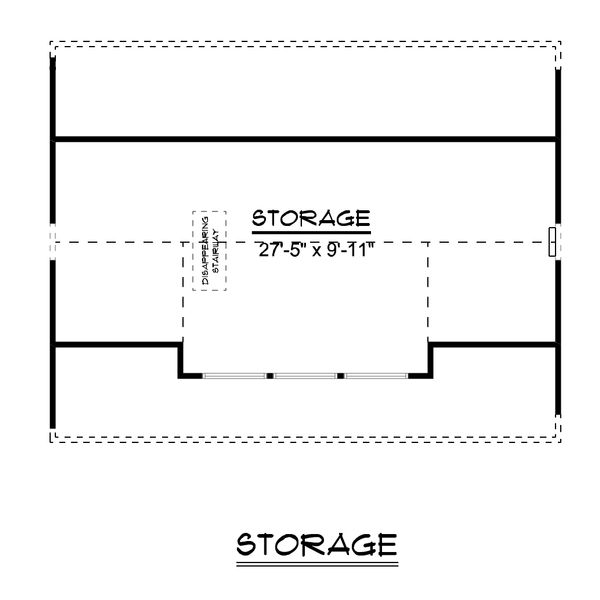

Storage : 347 sq/ft
Bonus Ceiling : 7' 1"
Garage Ceiling : 8' 1"
Primary Pitch : 8/12
Roof Framing : Truss
Roof Load : 30 psf
Roof Type : Shingles
Secondary Pitch : 4/12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x4
Insulation : R-19
Additional Room Features
Front Entry Garage
Additional Half Bath
Economical To Build
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

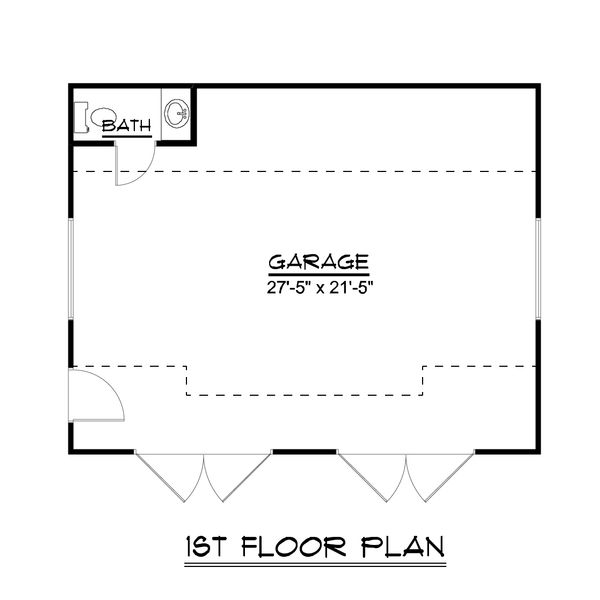

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
