Full Specs & Features
Depth : 88' 8"
Height : 30'
Width : 94'
First Floor: 3834 sq/ft
Garage: 1024 sq/ft
Second Floor: 932 sq/ft
Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Clay Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Family Room Keeping Room
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

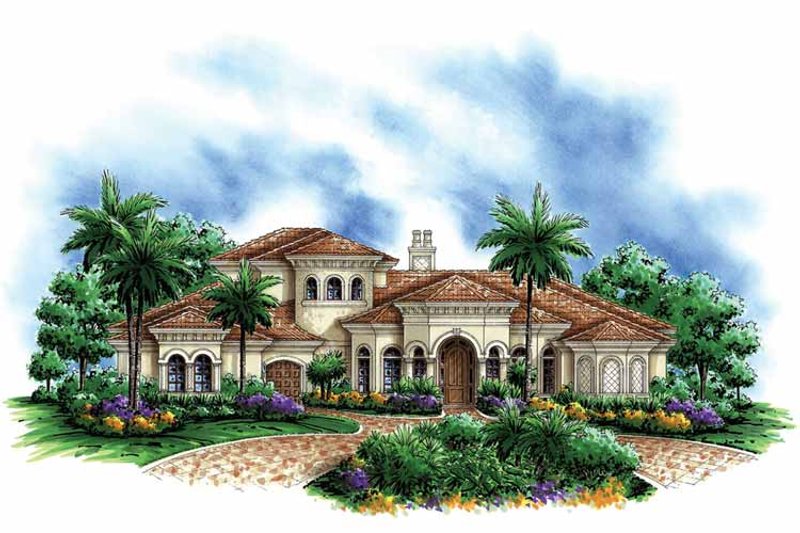

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

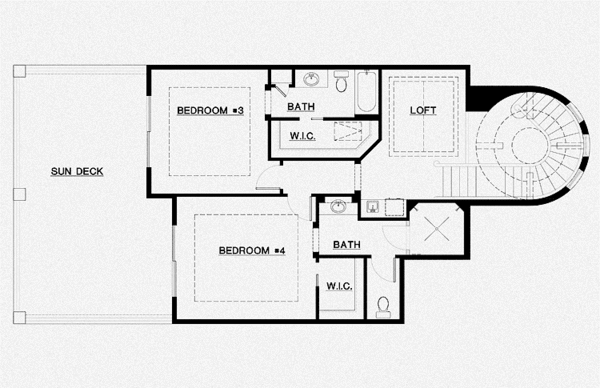

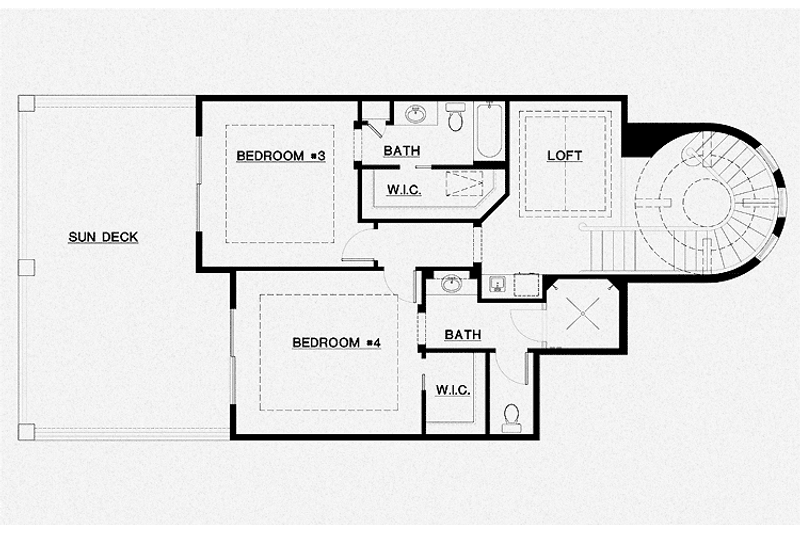

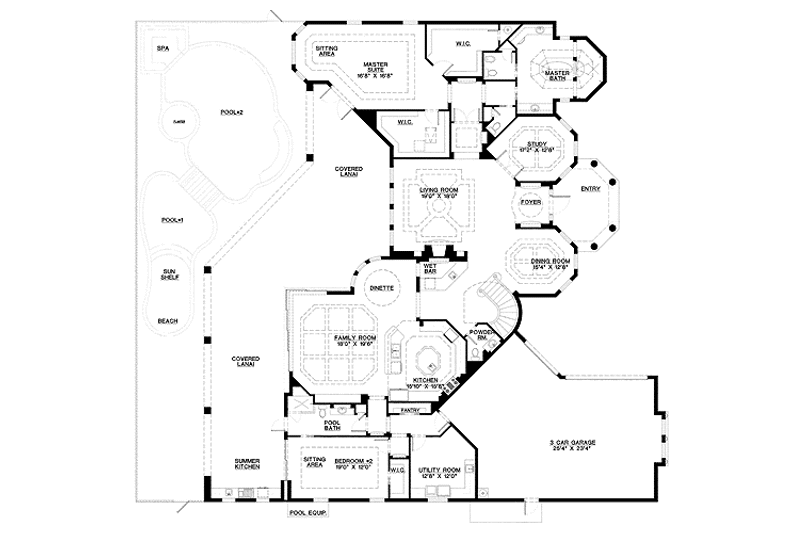

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
