PLAN 126-303
Photographs may show modified designs.
- Jump to:
- All (11)
- Floor plans (1)
Get Personalized Help
Key Specs
476
sq ft
0
Beds
0
Baths
1
Floors
1
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-866-445-9085
Phone: 1-866-445-9085
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 126-303
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

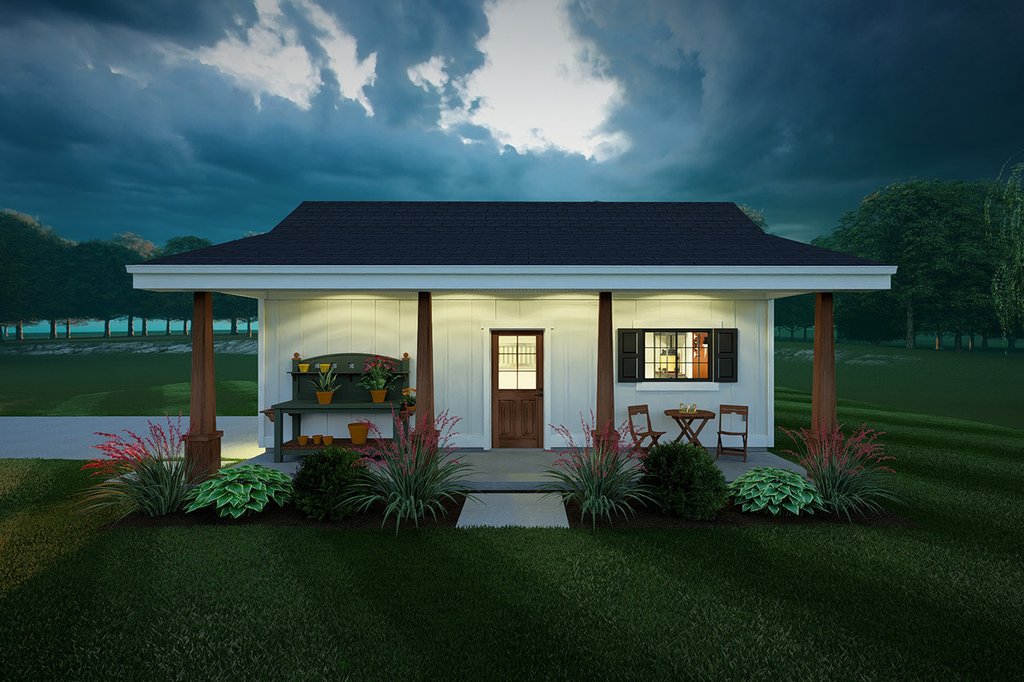

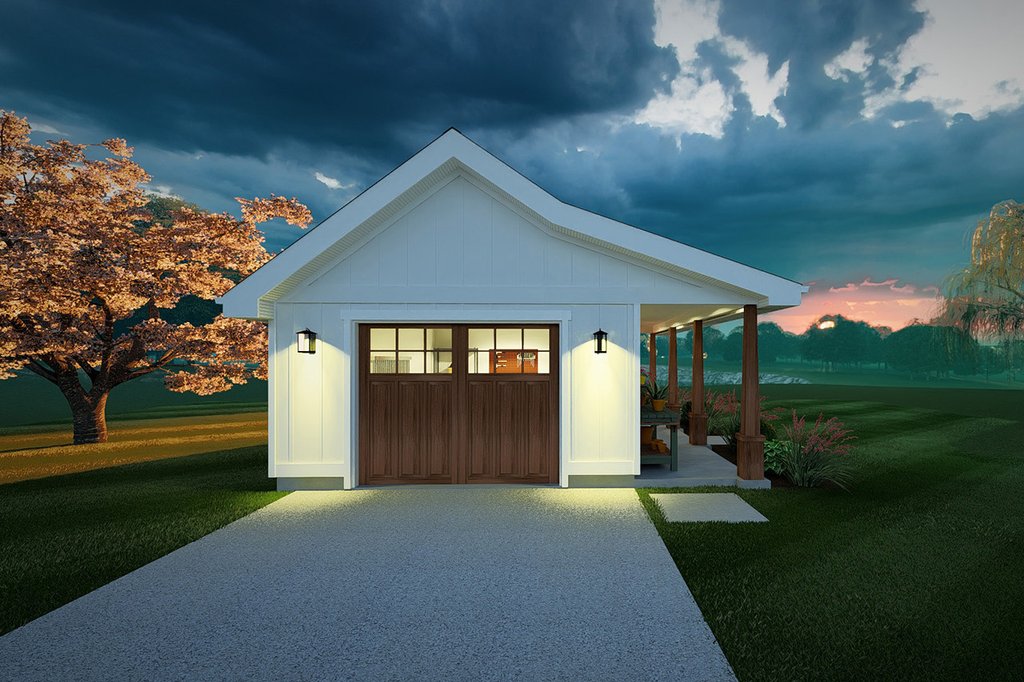

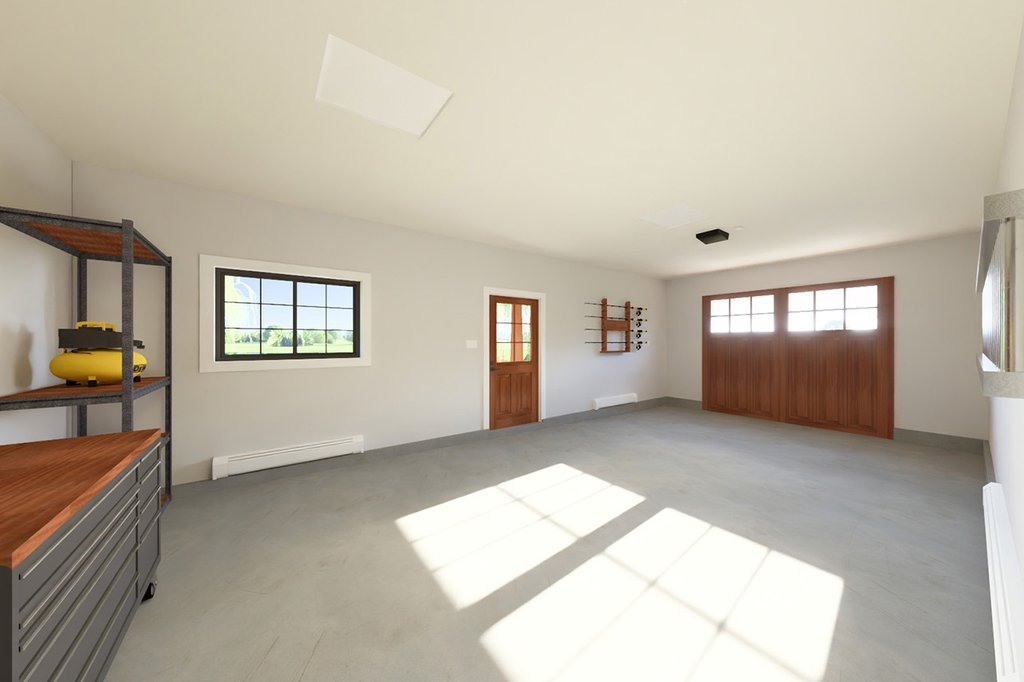

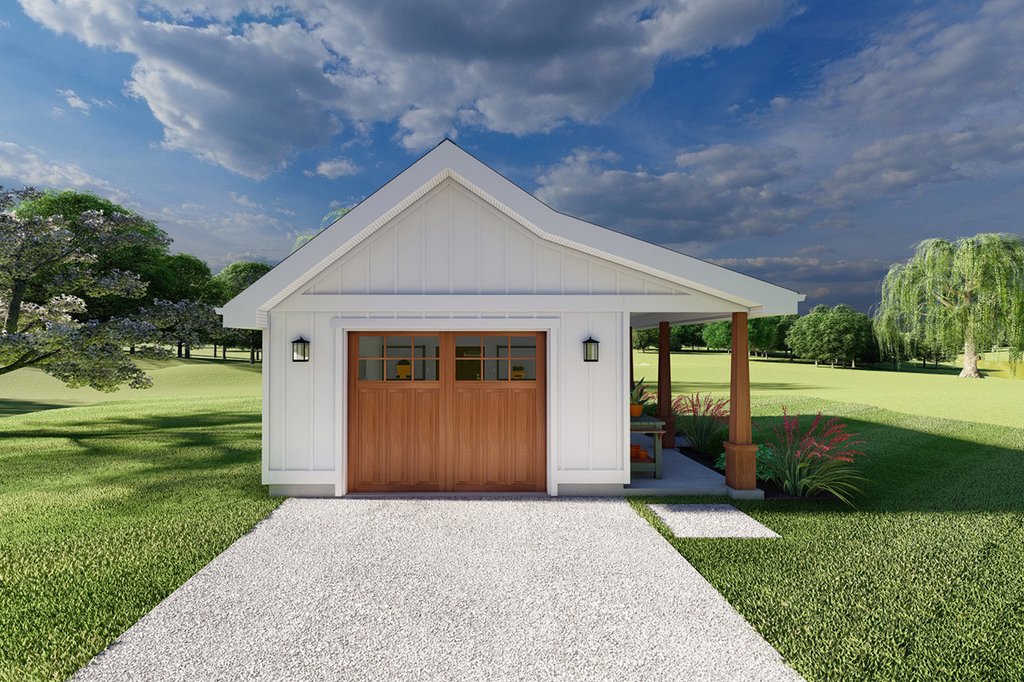

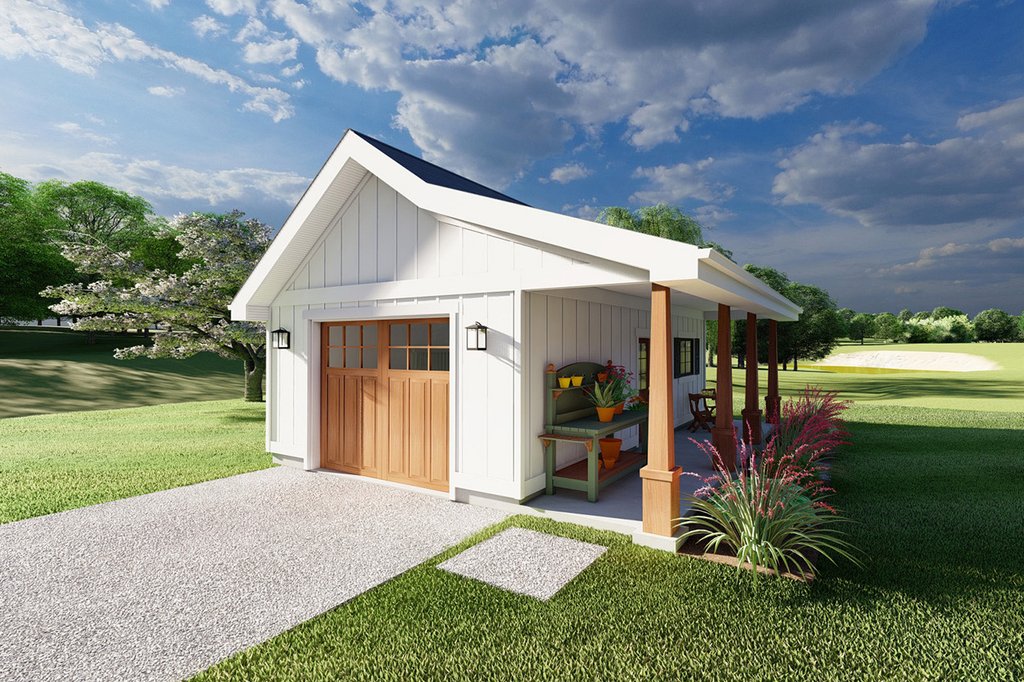

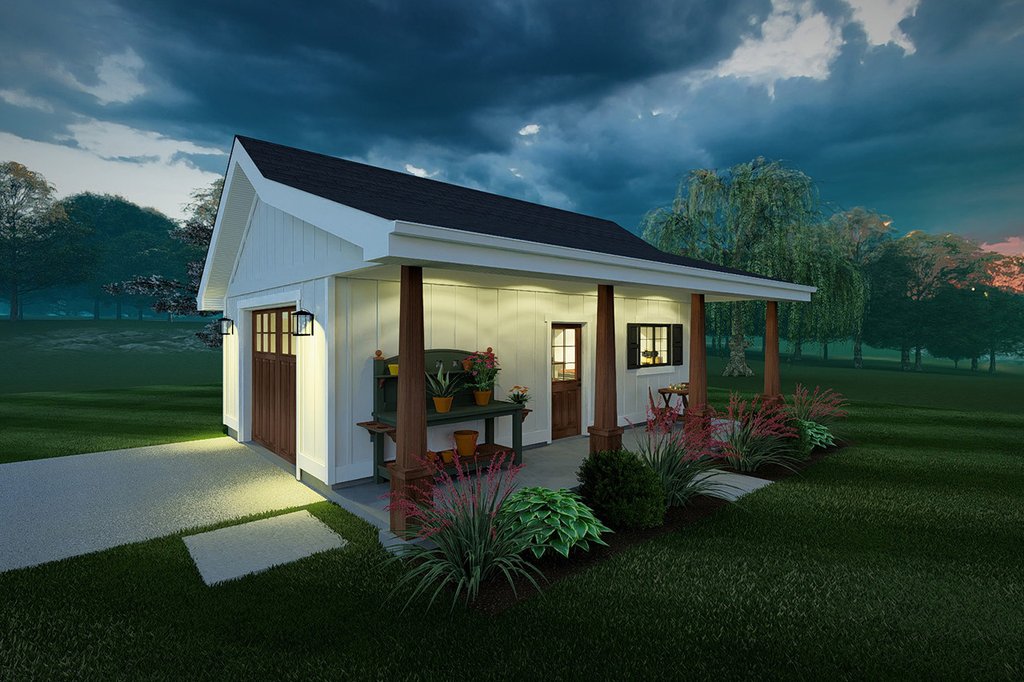

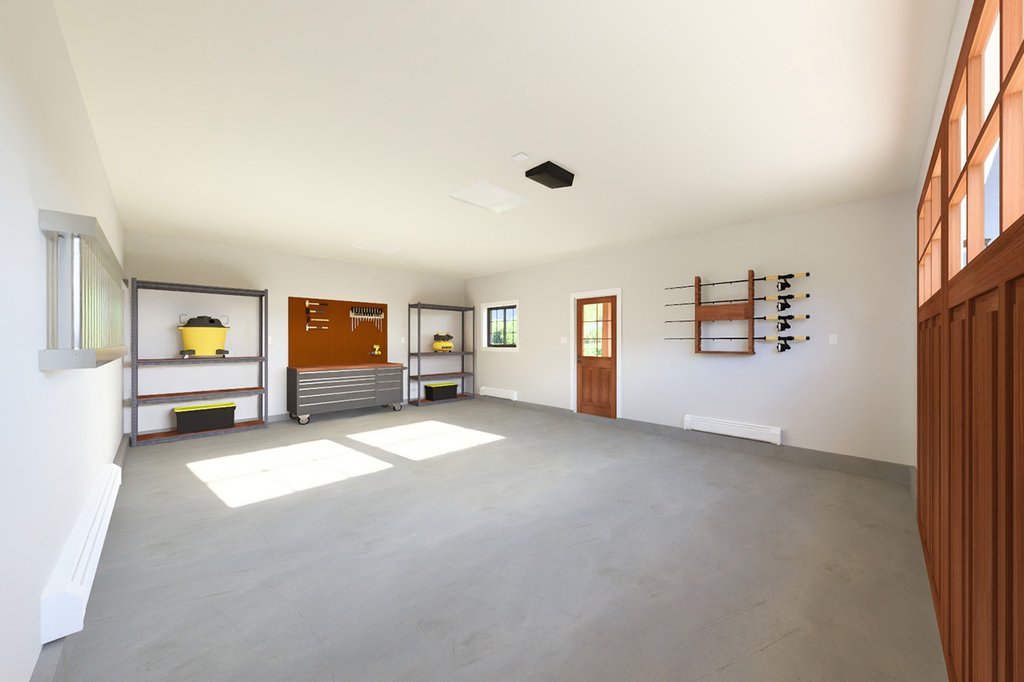

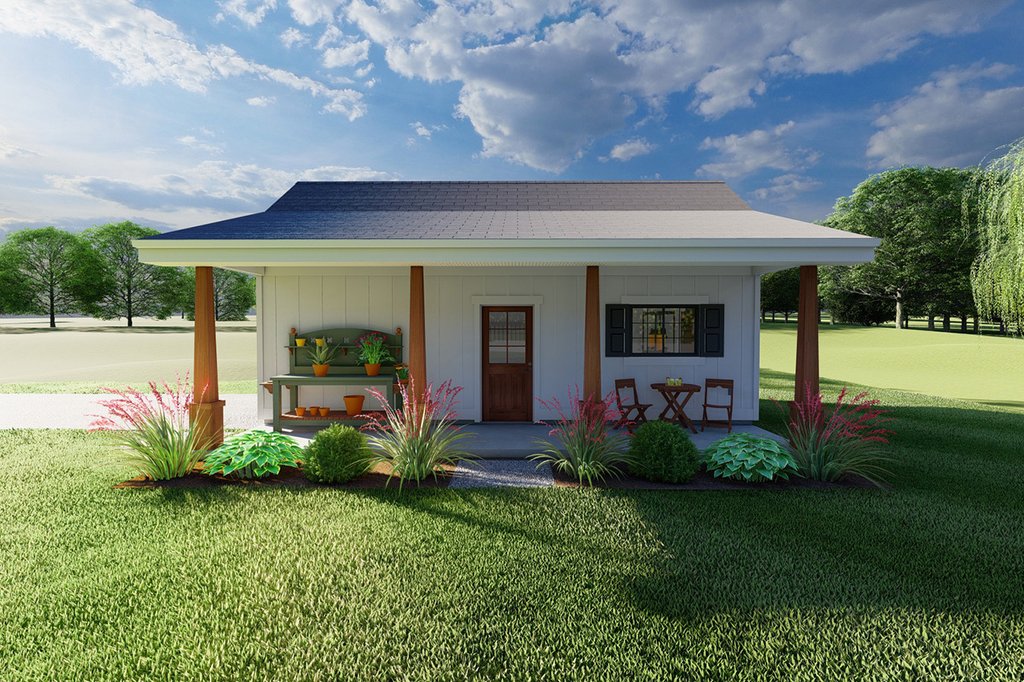

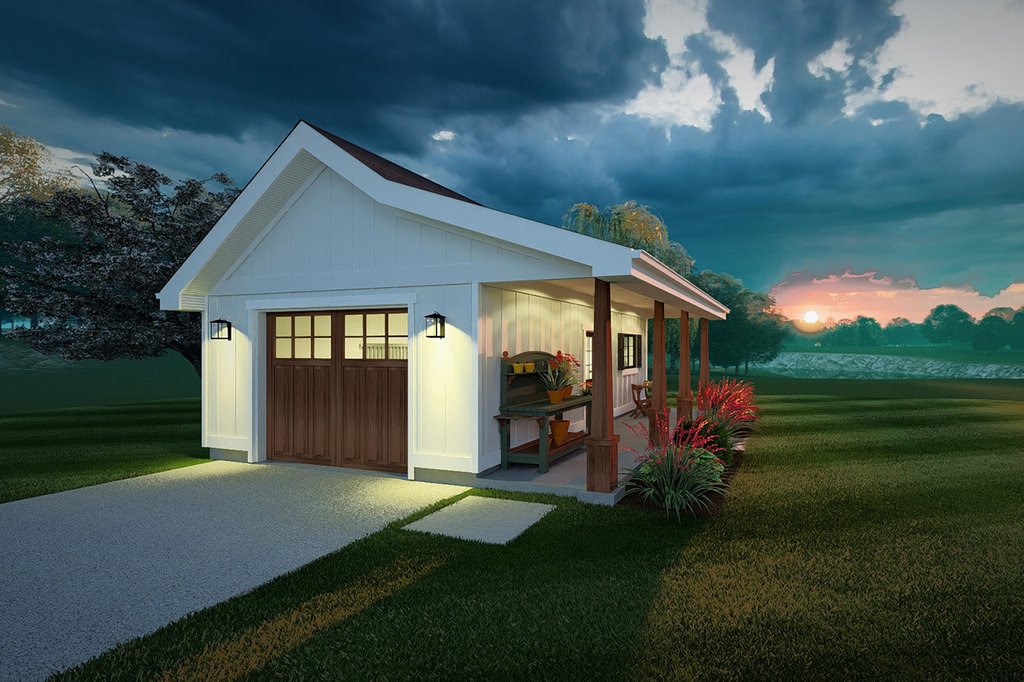

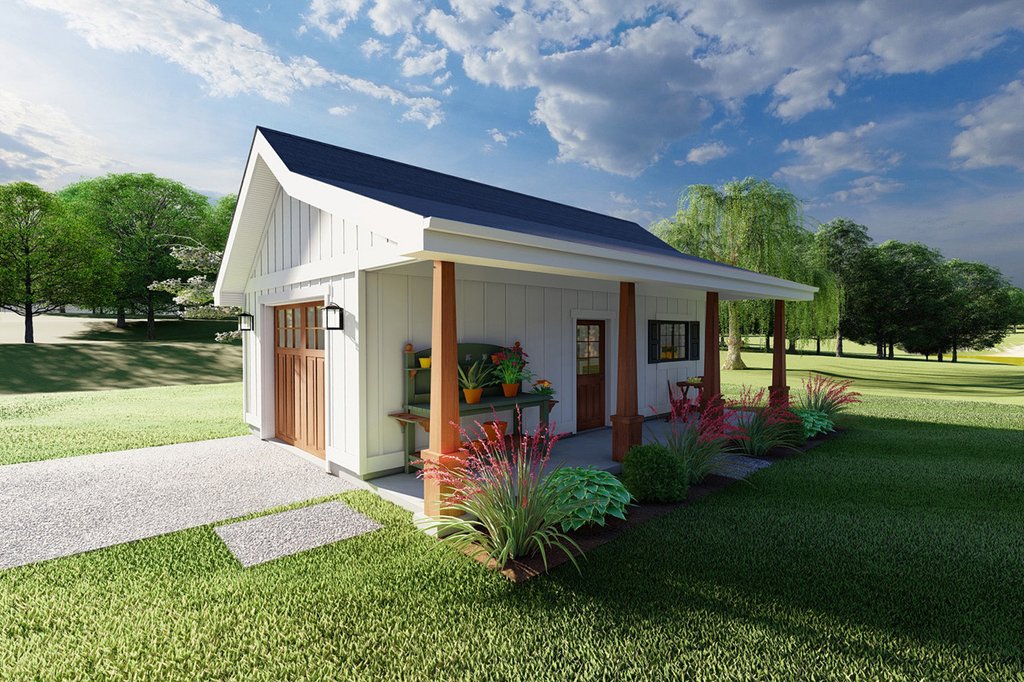

This single car garage plan is thoughtfully designed to accommodate larger vehicles, such as trucks. The generous interior dimensions ensure that homeowners can park their trucks comfortably, without worrying about tight spaces or difficult maneuvering. The garage door, measuring ten feet wide by eight feet high, makes it easy for vehicles of various sizes to enter and exit with minimal hassle. In addition to providing secure parking, the garage includes substantial storage space. Homeowners will find plenty of room for tools, equipment, and seasonal items, making the garage a practical solution for a variety of storage needs. The nine-foot-high ceilings create a sense of openness and make it easier to store taller items or move around within the space. The garage features a classic farmhouse aesthetic that blends well with a range of home styles. This timeless design not only enhances the visual appeal of the property but also ensures that the garage remains cost-effective to construct and maintain. The structure is both economical and attractive, making it a wise investment for homeowners. A covered porch extends the functionality of the garage, offering additional outdoor space. This area can serve as a comfortable spot for potting plants in the shade or simply relaxing with a cool glass of lemonade. The porch adds charm and versatility to the overall garage design, making it suitable for various activities beyond vehicle storage.
Floor Plans
Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 28'
Height : 16' 8"
Width : 17'
Area
Garage : 476 sq/ft
Porch : 168 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Garage Ceiling : 9' 4"
Roof
Primary Pitch : 9/12 to 8/12
Roof Framing : Truss
Roof Load : 55
Roof Type : Standard
Secondary Pitch : 4/12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x6 or 2x4
Insulation : Batt
Additional Room Features
Storage Area
Garage Features
Detached Garage
Front Entry Garage
Oversized Garage
Outdoor Spaces
Covered Front Porch
More
Economical To Build
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Cover Sheet: Designer contact info, plan name/number, legal disclaimers.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Shows the relationship between different levels, wall heights, and the overall building volume. May include details like foundation, framing, insulation, and finishes.
- Electrical Plan(s): Including lighting fixture placement
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Questions? Call 1-866-445-9085
Plan Set
PDF Set:
$495.00
$495.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$745.00
$745.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$995.00
$995.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Monolithic Slab:
$0.00
$0.00
A single concrete pour with thicker portions that replace footers under load bearing walls and all perimeter edges.
Stem Wall Foundation:
$0.00
$0.00
Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$150.00
$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$55.00
$55.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Material List:
$95.00
$95.00
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
