Plan Description
This contemporary design floor plan is 4482 sq ft and has 5 bedrooms and 4.5 bathrooms.
Floor Plans

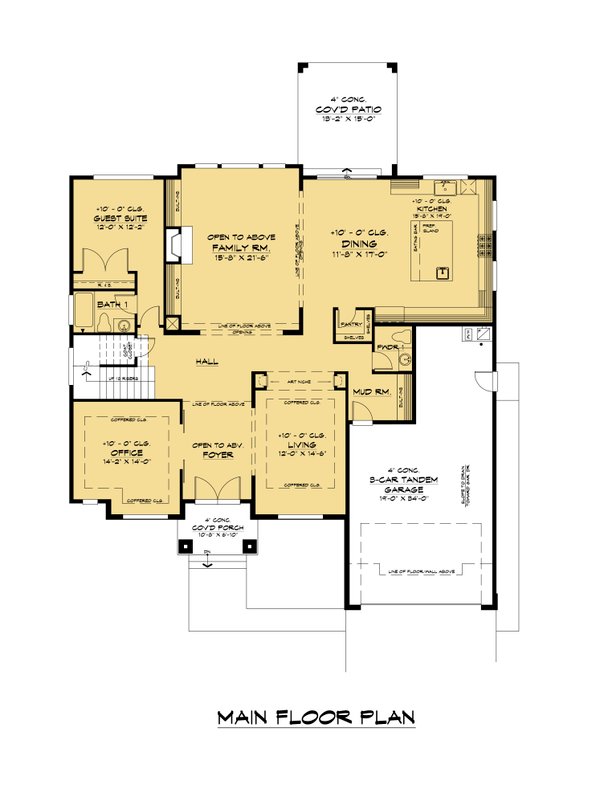

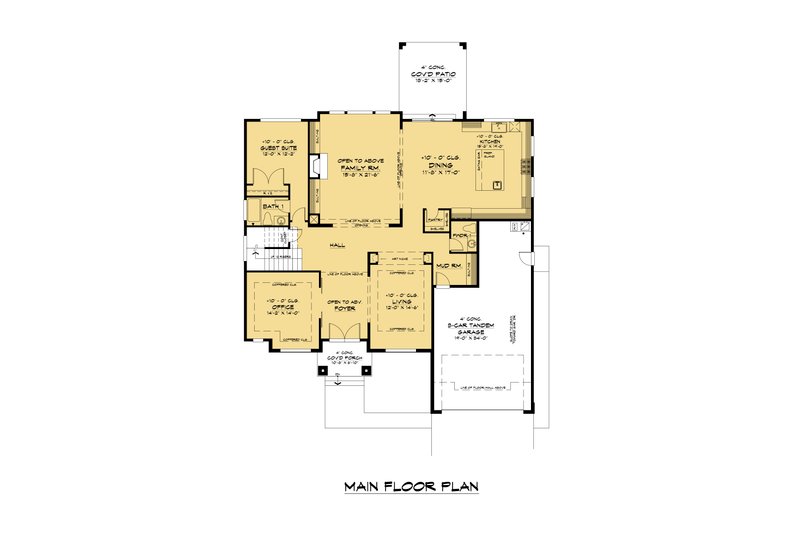

Floor Plan - Main Floor

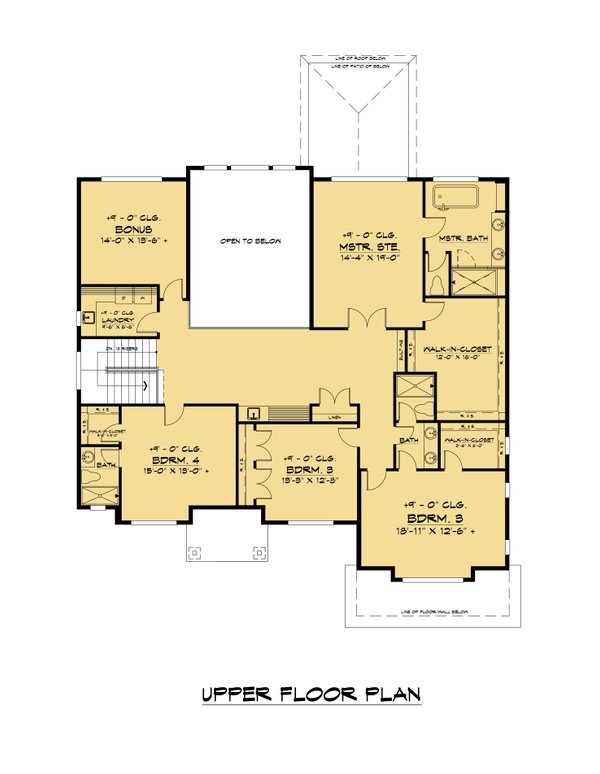

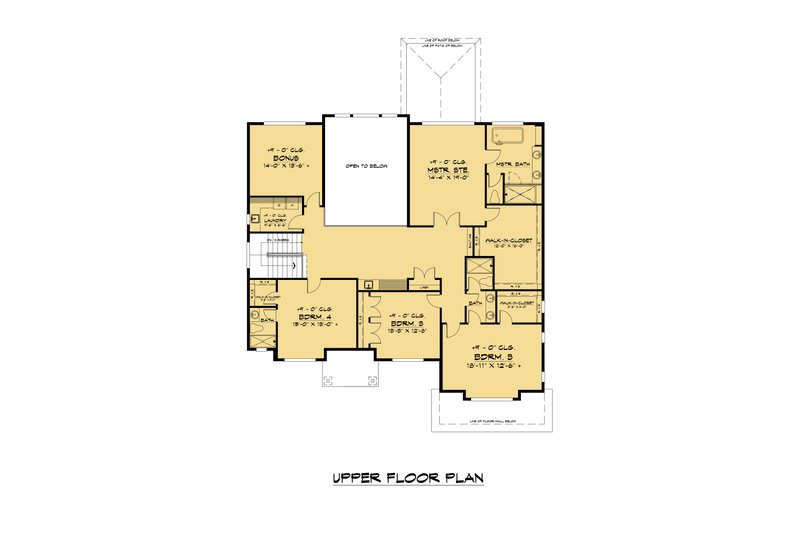

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth: 51' 6"
Height: 27' 8"
Width: 56' 8"
Area
Garage: 588 sq/ft
Main Floor: 2193 sq/ft
Patios: 196 sq/ft
Porch: 63 sq/ft
Upper Floor: 2289 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Garage Ceiling: 11' 6"
Main Ceiling: 10'
Upper Ceiling Ft: 9'
Roof
Primary Pitch: 5:12
Roof Framing: Truss
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
Not Included
» See important
information before purchasing.
Plans are typically drawn to ¼” scale and include:
- Cover Sheet: Drawing index, designer contact info, plan name/number, legal disclaimers. 3D Rendering and Project Information.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Wall Section(s): Detailed drawings showing wall connections, from foundation to the roof, wall connections to foundation, window installation, siding installation, stair details, and more.
- Architectural or Engineering Stamp: Handled locally when required.
- Site Plans: Handled locally if needed.
- Mechanical / Plumbing Drawings: Designated by your builder, subcontractors, or engineer once systems are chosen and locations for water, power, and waste are determined.
- Electrical Drawings: Available as an add-on for $165.00 with a PDF or CAD order.
- Energy Calculations: Handled locally if required for energy evaluation.
Important: Foundation and framing plans may be shown as reference only. Your builder and/or engineer will determine the specific requirements based on your soils, site conditions, and local codes.
