Key Specs
4466
sq ft
3
Beds
3.5
Baths
2
Floors
3
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

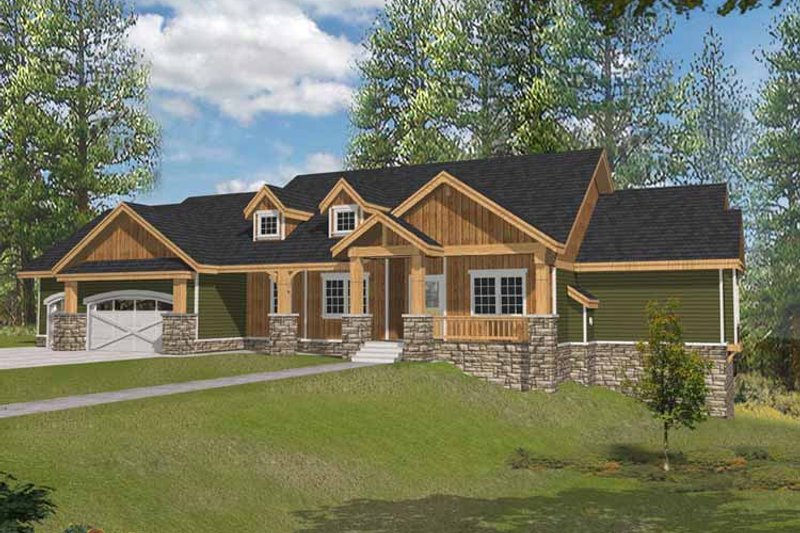

PLAN 1037-14
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 67'
Height : 26'
Width : 99'
Area
First Floor: 2846 sq/ft height 9'
Lower Level: 1620 sq/ft height 9' 8"
Roof
Roof Framing : Combination Truss/Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Main Floor Laundry
Outdoor Spaces
Courtyard
Rooms
Bedroom 2:
198 sq/ft width 15' 8" x depth 12' 8"
Bedroom 3:
225 sq/ft width 13' 8" x depth 16' 6"
Breakfast Nook:
198 sq/ft width 17' x depth 11' 8"
Dining Room:
174 sq/ft width 11' 6" x depth 15' 2"
Entry:
83 sq/ft width 7' 6" x depth 11' 2"
Exercise Room:
442 sq/ft width 22' 8" x depth 19' 6"
Family Room:
314 sq/ft width 19' 8" x depth 16'
Great Room:
368 sq/ft width 23' x depth 16'
Kitchen:
191 sq/ft width 19' 6" x depth 9' 10"
Living Room:
201 sq/ft width 13' x depth 15' 6"
Master Bathroom:
196 sq/ft width 19' x depth 10' 4"
Master Bedroom:
266 sq/ft width 16' 8" x depth 16'
Storage:
49 sq/ft width 7' x depth 7'
Storage:
106 sq/ft width 10' 4" x depth 10' 4"
Study:
87 sq/ft width 11' 2" x depth 7' 10"
Study:
221 sq/ft width 17' x depth 13'
Utility Room:
86 sq/ft width 7' 10" x depth 11'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1230.00
$1250.00
$1330.00
$2260.00
$1100.00
Foundation
$0.00
Framing
$0.00
Additional Options
$200.00
$60.00
$100.00
$39.00
$200.00
$60.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
