PLAN 117-879

Home > Style > Craftsman House Plans

Key Specs

4459
sq ft

5
Beds

4.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description

This craftsman design floor plan is 4459 sq ft and has 5 bedrooms and 4.5 bathrooms.

Floor Plans

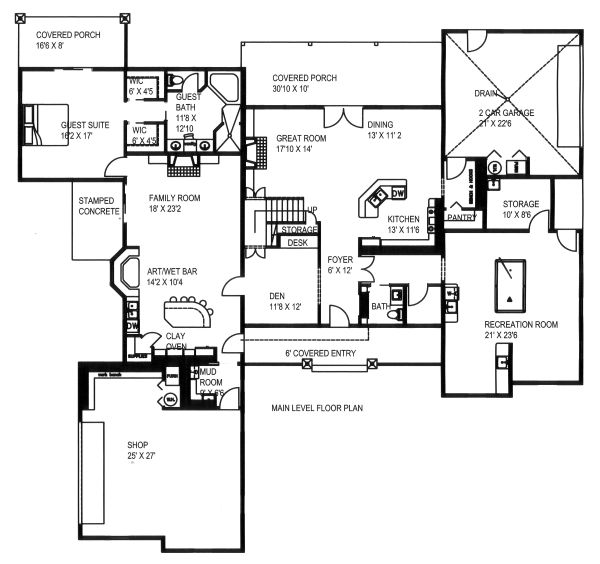

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

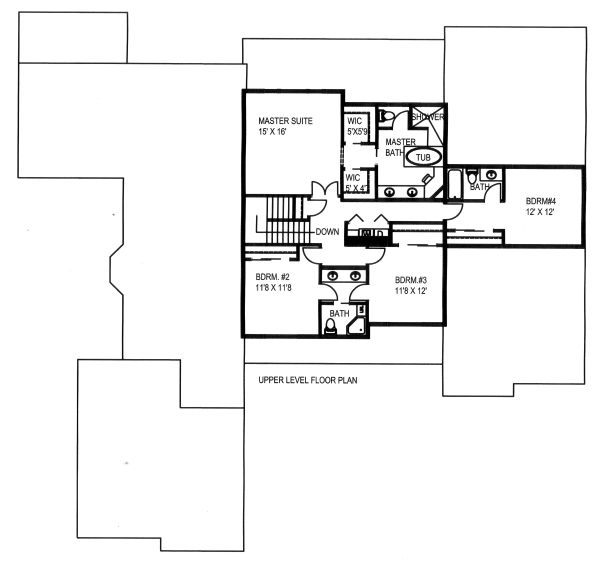

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 82' 6"

Height : 27' 1"

Width : 88' 6"

Area

Garage : 499 sq/ft

Main Floor : 3120 sq/ft

Porch : 634 sq/ft

Upper Floor : 1339 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 6/12

Roof Framing : Truss/Stick

Roof Type : Composition

Secondary Pitch : 3/12

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone/Siding

Framing : 2x6

Bedroom Features

Guest Suite

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Hobby Rec Room Game Room

Mud Room

Storage Area

Upstairs Laundry

Wet Bar

Garage Features

Rear Entry Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Art/Wet Bar:

width 14' 2" x depth 10' 4"

Bedroom 2:

width 11' 8" x depth 11' 8"

Bedroom 3:

width 11' 8" x depth 12'

Bedroom 4:

width 12' x depth 12'

Den:

width 11' 8" x depth 12'

Dining:

width 13' x depth 11' 2"

Family Room:

width 18' x depth 23' 2"

Garage:

width 21' x depth 22' 6"

Great Room:

width 17' 10" x depth 14'

Guest Bath:

width 11' 8" x depth 12' 10"

Guest Suite:

width 16' 2" x depth 17'

Guest WIC:

width 6' x depth 4' 5"

Guest WIC 2:

width 6' x depth 4' 5"

Kitchen:

width 13' x depth 11' 6"

Master Suite:

width 15' x depth 16'

Master WIC:

width 5' x depth 5' 9"

Master WIC 2:

width 5' x depth 4'

Rear Covered Porch:

width 30' 10" x depth 10'

Recreation Room:

width 21' x depth 23' 6"

Shop:

width 25' x depth 27'

Storage:

width 10' x depth 8' 6"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
