PLAN 1017-102

Photographs may show modified designs.

Save

Key Specs


Plan Sq Ft

4428
sq ft

Plan Bedrooms

5
Beds

Plan Bathrooms

5
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Subtotal
$2200.00
Best Price Guaranteed*

Also order by phone: 1-866-445-9085
Cost-to-Build Estimates

Cost to Build Reports Only $4.99 with Code CTBSUMMER (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-866-445-9085
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-866-445-9085
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 1017-102

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description


You will need to catch your breath as you walk into this Mediterranean house plan with voluminous living room and cascading wall of glass reaching 24 feet in the air. This spaciousness continues throughout the foyer and dining room of this floor plan. The family room, dinette and kitchen are opened as one, only separated by detailed coffer ceilings. Upstairs is another highlight with 3 additional bedrooms and baths. The loft is a perfect sitting room with a balcony overlooking the front entry. This is a perfect Mediterranean style, intercoastal house plan.

Full Specs & Features


Dimension

Depth : 64' 4"

Height : 33' 3"

Width : 87' 4"

Area

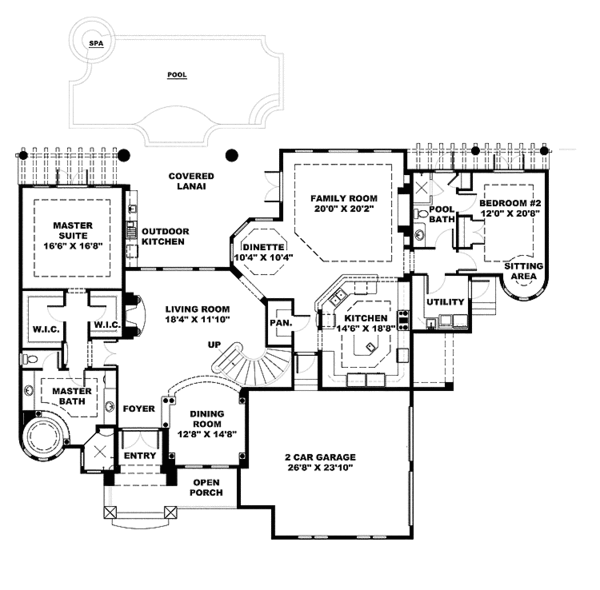

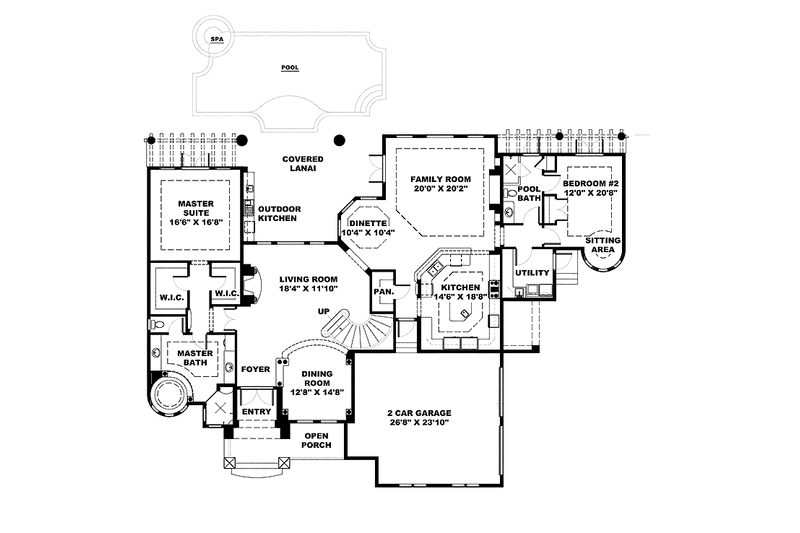

First Floor: 2956 sq/ft

Garage: 682 sq/ft

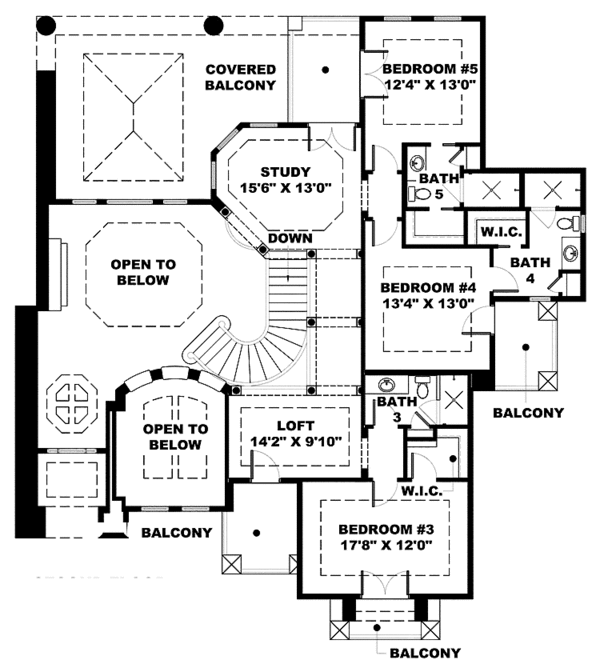

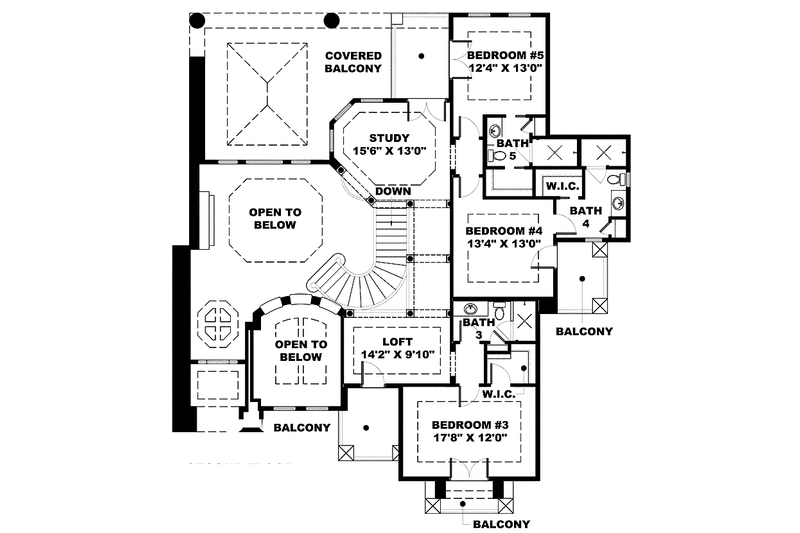

Second Floor: 1472 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Clay Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x6

Bedroom Features

Formal Dining Room

Formal Living Room / Parlor

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Loft

Outdoor Spaces

Balcony

Courtyard

Covered Front Porch

Rooms

Bedroom 2:

248 sq/ft width 12' x depth 20' 8"

Bedroom 3:

212 sq/ft width 17' 8" x depth 12'

Bedroom 4:

173 sq/ft width 13' 4" x depth 13'

Bedroom 5:

160 sq/ft width 12' 4" x depth 13'

Dinette:

106 sq/ft width 10' 4" x depth 10' 4"

Dining Room:

185 sq/ft width 12' 8" x depth 14' 8"

Family Room:

403 sq/ft width 20' x depth 20' 2"

Garage:

635 sq/ft width 26' 8" x depth 23' 10"

Kitchen:

273 sq/ft width 14' 8" x depth 18' 8"

Living Room:

157 sq/ft width 13' 4" x depth 11' 10"

Master Suite:

275 sq/ft width 16' 6" x depth 16' 8"

Study:

201 sq/ft width 15' 6" x depth 13'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-866-445-9085

Plan Set

CAD Set:
$2200.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set:
$2200.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$2200.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Stem Wall Foundation:
$0.00
Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Additional Construction Sets:
$90.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
