PLAN 120-213
Photographs may show modified designs.
Get Personalized Help
Key Specs
4417
sq ft
5
Beds
4.5
Baths
2
Floors
3
Garages
Wow! Cost to Build Reports Only $4.99 with Code CTB2023 (Limit 1)
This report will provide you cost estimates based on location and building materials.
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
PLAN 120-213
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Modify This Plan
Floor Plans

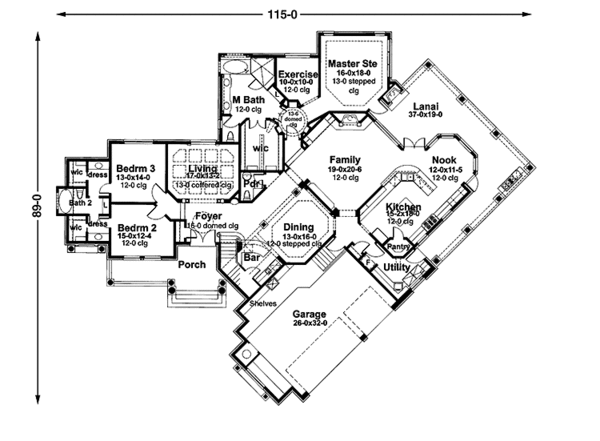

Floor Plan - Main Floor

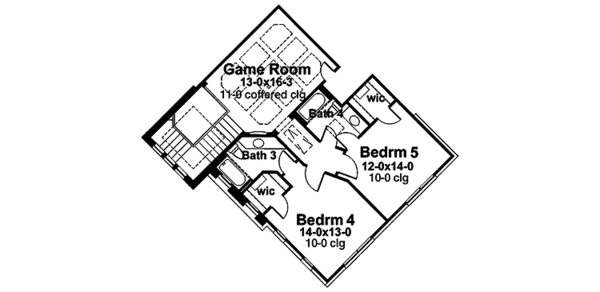

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 89'
Height : 38'
Width : 115'
Area
Basement Unfinished: 3566 sq/ft
First Floor: 3561 sq/ft
Second Floor: 856 sq/ft
Roof
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Exercise Room
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Outdoor Spaces
Courtyard
Outdoor Kitchen Grill
Rooms
Bedroom 2:
184 sq/ft width 15' x depth 12' 4"
Bedroom 3:
182 sq/ft width 13' x depth 14'
Bedroom 4:
182 sq/ft width 14' x depth 13'
Bedroom 5:
168 sq/ft width 12' x depth 14'
Breakfast Nook:
137 sq/ft width 12' x depth 11' 5"
Dining Room:
208 sq/ft width 13' x depth 16'
Entry:
133 sq/ft width 13' 7" x depth 9' 10"
Exercise Room:
100 sq/ft width 10' x depth 10'
Family Room:
389 sq/ft width 19' x depth 20' 6"
Game Room:
212 sq/ft width 13' x depth 16' 4"
Kitchen:
273 sq/ft width 15' 2" x depth 18'
Living Room:
223 sq/ft width 17' x depth 13' 2"
Master Bathroom:
191 sq/ft width 13' 4" x depth 14' 4"
Master Bedroom:
288 sq/ft width 16' x depth 18'
Utility Room:
103 sq/ft width 11' x depth 9' 5"
What's Included In This Plan Set
- Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
- Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
- Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
- Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
- Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
- Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
- Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
- Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
Plan Set
$1595.00
$1595.00
$1745.00
$1845.00
$2395.00
Foundation
$0.00
$0.00
$395.00
$395.00
Framing
$0.00
$245.00
Additional Options
$195.00
$50.00
$395.00
$100.00
$450.00
$39.00
$395.00
$195.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
