Key Specs
4240
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
Wow! Cost to Build Reports Only $4.99 with Code CTB2023 (Limit 1)
This report will provide you cost estimates based on location and building materials.
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
PLAN 54-349
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Modify This PlanPlan Description

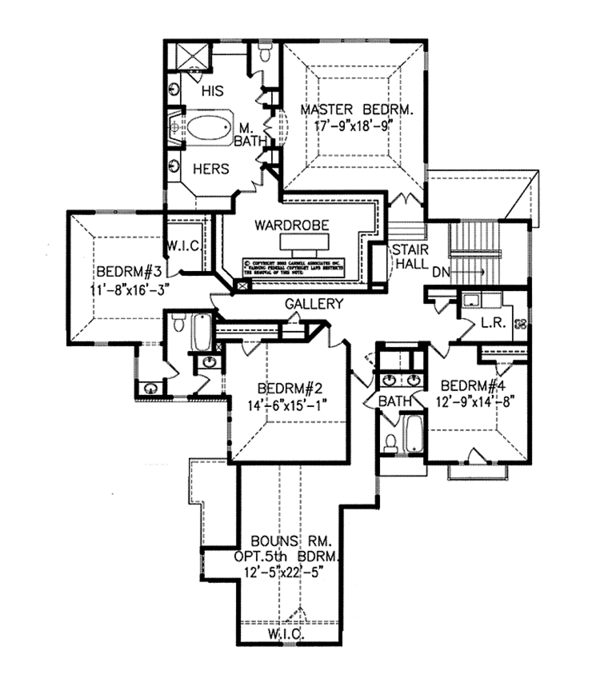

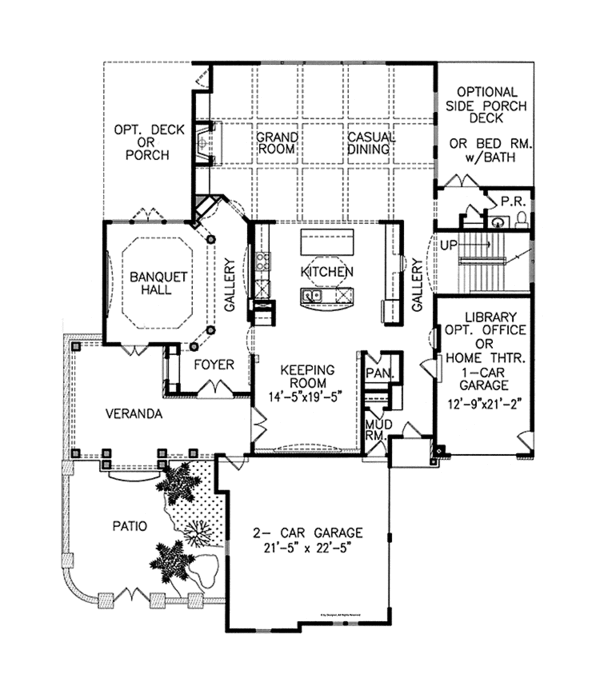

Floor Plans
Full Specs & Features
Dimension
Depth : 78'
Height : 32' 1"
Width : 62' 11"
Area
Bonus: 385 sq/ft
First Floor: 2071 sq/ft
Second Floor: 2169 sq/ft
Roof
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Master Sitting Area
Mud Room
Sunroom
Outdoor Spaces
Courtyard
Covered Front Porch
Screened Porch
Rooms
Bedroom 2:
218 sq/ft width 14' 6" x depth 15' 1"
Bedroom 3:
189 sq/ft width 11' 8" x depth 16' 3"
Bedroom 4:
218 sq/ft width 14' 6" x depth 15' 1"
Bonus Room - Unfinished:
278 sq/ft width 12' 5" x depth 22' 5"
Garage:
480 sq/ft width 21' 5" x depth 22' 5"
Garage Two:
269 sq/ft width 12' 9" x depth 21' 2"
Grand Room:
435 sq/ft width 20' 1" x depth 21' 8"
Keeping Room:
279 sq/ft width 14' 5" x depth 19' 5"
Kitchen:
331 sq/ft width 20' 7" x depth 16' 1"
Master Bedroom:
332 sq/ft width 17' 9" x depth 18' 9"
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$2120.00
$3370.00
$3465.00
Foundation
$0.00
$0.00
$350.00
Framing
$0.00
$350.00
Additional Options
$250.00
$100.00
$39.00
$200.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
