PLAN 1066-155
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
This contemporary design floor plan is 4070 sq ft and has 4 bedrooms and 4 bathrooms.
Floor Plans

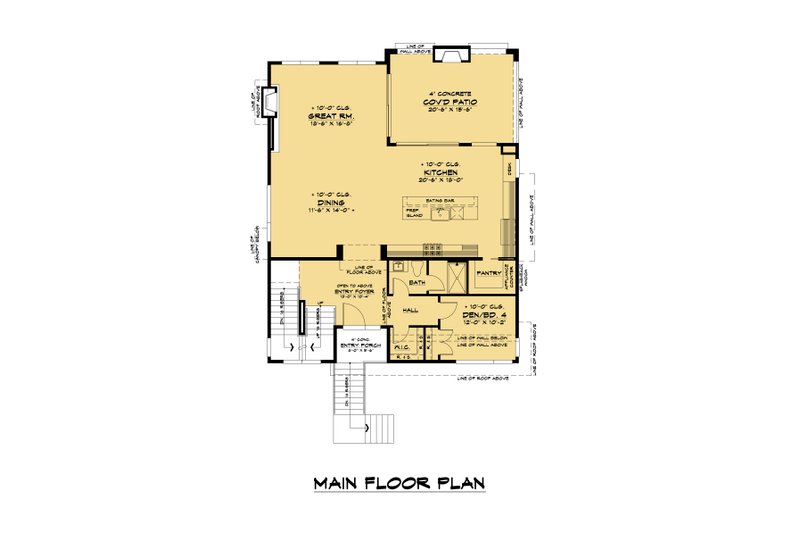

Floor Plan - Main Floor

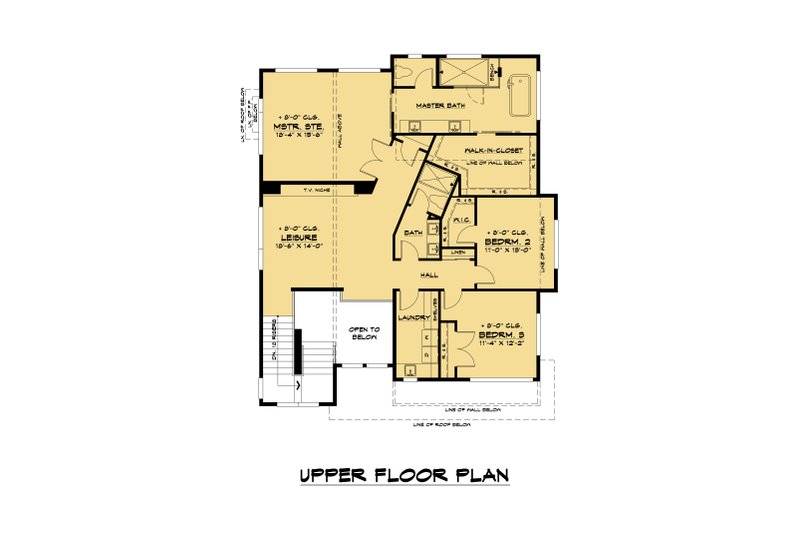

Floor Plan - Upper Floor
Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 48'
Height : 28' 3"
Width : 40'
Area
Garage : 630 sq/ft
Lower Floor : 817 sq/ft
Main Floor : 1614 sq/ft
Patios : 309 sq/ft
Porch : 44 sq/ft
Upper Floor : 1639 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Lower Ceiling : 9'
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 1:2
Roof Framing : Truss
Secondary Pitch : 1 1/2:1
