Full Specs & Features
Depth : 47' 2"
Height : 30'
Width : 88' 10"

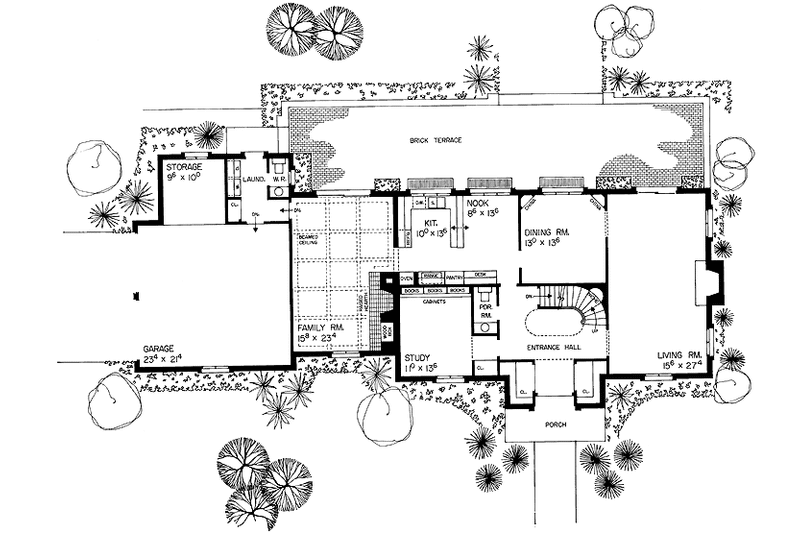

First Floor: 1961 sq/ft height 8'

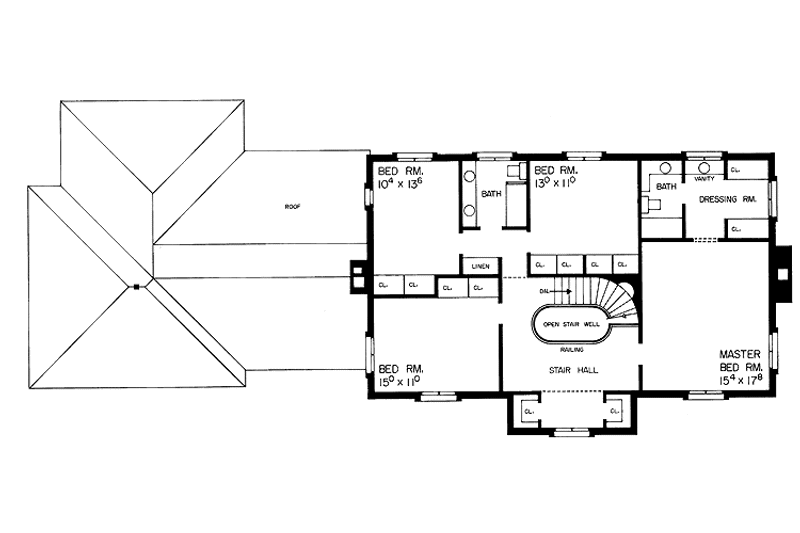

Second Floor: 1472 sq/ft
Primary Pitch : 12:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Covered Front Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
