PLAN 17-2273

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description


Picture yourself living in this beautiful home. Once you step inside the foyer, you?ll notice the elegant columns that enhance the spacious dining room. This unique design features a raised kitchen area that steps down into the hearth room and great room. French doors lead into your master suite, complete with an amenity-filled master bath and French door access to the private office. Upstairs, enjoy two additional bedrooms, a full bath, and a bonus room ? perfect for that hobby room you?ve been dreaming about.

Full Specs & Features


Dimension

Depth : 47' 9"

Height : 26' 2"

Width : 95'

Area

Bonus: 250 sq/ft

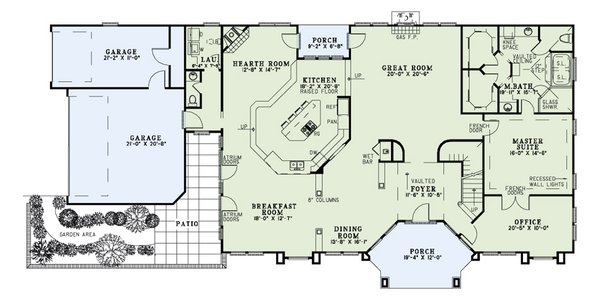

First Floor: 2660 sq/ft height 10'

Porch: 233 sq/ft

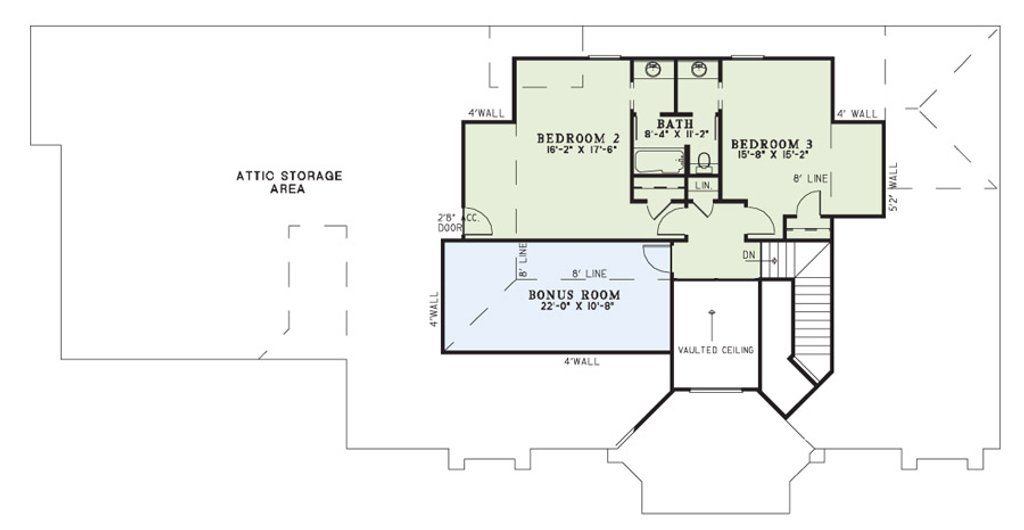

Second Floor: 714 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 7:12

Roof Framing : Conventional

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Additional Room Features

Den Office Study Computer

Play Flex Room

Storage Area

Garage Features

Oversized Garage

Side Entry Garage

Split Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Courtyard

Covered Front Porch

Covered Rear Porch

More

Jack & Jill Bath

Rooms

Breakfast Room:

226 sq/ft width 18' x depth 12' 7"

Dining Room:

219 sq/ft width 13' 8" x depth 16' 1"

Garage:

434 sq/ft width 21' x depth 20' 8"

Garage Two:

232 sq/ft width 21' 2" x depth 11'

Great Room:

410 sq/ft width 20' x depth 20' 6"

Hearth Room:

184 sq/ft width 12' 8" x depth 14' 7"

Kitchen:

375 sq/ft width 18' 2" x depth 20' 8"

Laundry Room:

49 sq/ft width 6' 4" x depth 7' 9"

Master Bathroom:

310 sq/ft width 19' 11" x depth 15' 7"

Master Suite:

232 sq/ft width 16' x depth 14' 6"

Office:

204 sq/ft width 20' 5" x depth 10'

Porch - Front:

231 sq/ft width 19' 4" x depth 12'

Porch - Rear:

61 sq/ft width 9' 2" x depth 6' 8"

What's Included In This Plan Set




  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
  • CAD Unlimited Build comes with a free PDF.

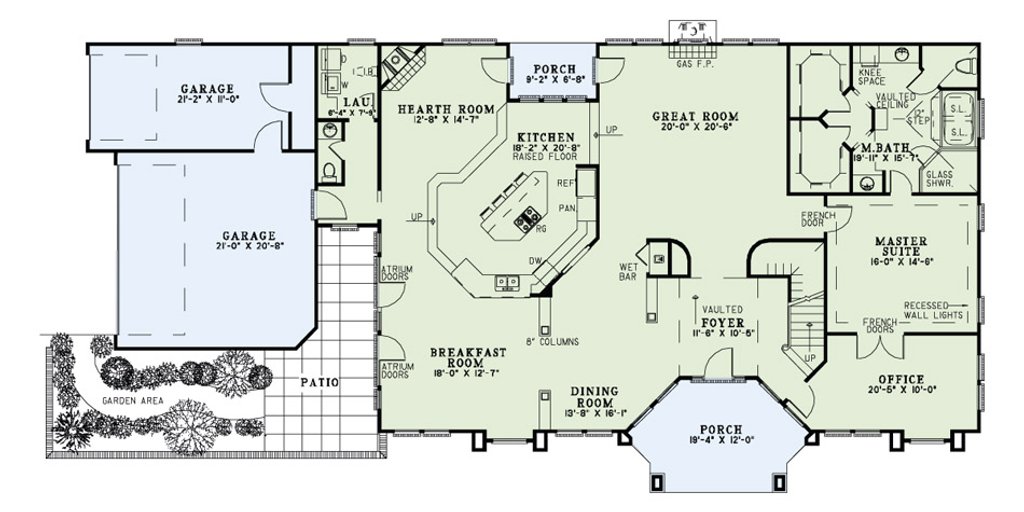

  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
