PLAN 928-102

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Plan Description

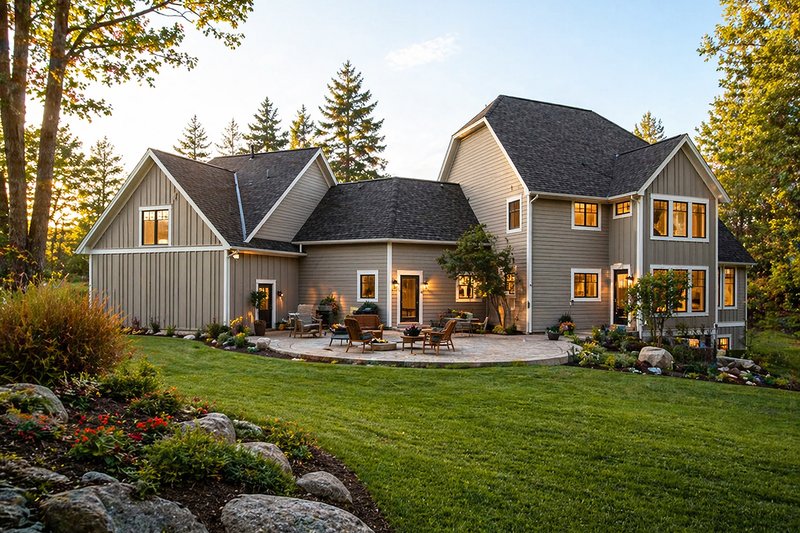

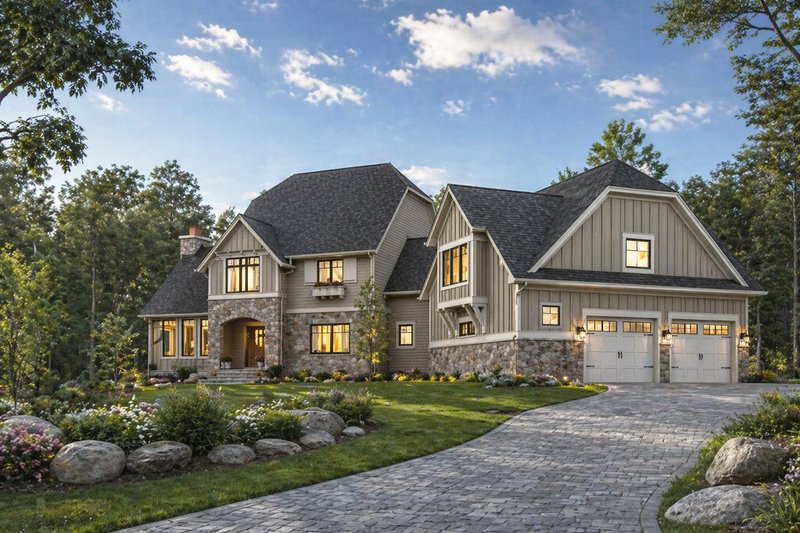

A hipped, clipped roof adds style to this estate design by Visbeen Associates. The the central entrance leads past the classic staircase into the great room graced with a fireplace on the left. The large dining room and kitchen are further back. Upstairs rest three bedrooms, including the roomy master suite. A bonus guest suite, which includes a kitchenette and living room, can be built above the garage. The optional lower level includes an additional bedroom, family room and, fun-filled sport court.

Floor Plans

Floor Plan - Lower Floor Plan
Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan
Floor Plan - Other Floor Plan

Full Specs & Features

Depth : 36' 5"
Height : 39' 7"
Width : 101' 9"
Basement Unfinished: 1463 sq/ft height 9'
Bonus: 741 sq/ft height 8'
First Floor: 2006 sq/ft height 9'
Second Floor: 1106 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Guest Suite
Upstairs Master Bedrooms
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Garage Features
Side Entry Garage
Outdoor Spaces

Bedroom 2:

158 sq/ft width 12' x depth 13' 2"

Bedroom 3:

127 sq/ft width 11' 5" x depth 11' 2"

Bedroom 4:

118 sq/ft width 11' x depth 10' 9"

Dining Room:

325 sq/ft width 15' 6" x depth 21'

Family Room:

420 sq/ft width 28' 8" x depth 14' 8"

Great Room:

400 sq/ft width 16' x depth 25'


171 sq/ft width 13' 6" x depth 12' 8"

Master Bedroom:

219 sq/ft width 14' 2" x depth 15' 6"


150 sq/ft width 14' x depth 10' 9"

What's Included In This Plan Set

See a sample plan set

Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.

Plan Set

PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.


Wood 2x6:
Wood 2x6

Additional Options

Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
