PLAN 927-1009

Photographs may show modified designs.

Save
  • Jump to:
  • All (19)
  • Floor plans (2)
Questions? Get Personalized Help

Key Specs


Plan Sq Ft

2823
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

3
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$295.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
$2995.00
Best Price Guaranteed*
Also order by phone: 1-866-445-9085

Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-866-445-9085
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.


Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 927-1009

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description


Today's highly desirable exterior style with clean lines, mixed materials and refined details encase a livable, light filled design that is sure to satisfy. The wide front porch and expansive dormer are the central elements that identify the entry point, welcoming all passers-by. The main level is anchored by a large great room with a beamed ceiling and warming fireplace, complimented by the dining area and chef's kitchen. The master suite also features a beamed ceiling, boxed bay window and the accompanying spa bath will meet all expectations of sophisticated owners. The guest suite on the main floor is situated to provide privacy and could easily convert into a work space. The covered rear porch and patio add living and dining space to enjoy the outdoors when weather cooperates. The upper level houses two additional bedrooms, a compartmented bath along with a multi-purpose bonus room.

Full Specs & Features


Dimension

Depth : 66'

Height : 27' 7"

Width : 69'

Area

Basement : 2133 sq/ft

Bonus : 349 sq/ft

Garage : 815 sq/ft

Main Floor : 2133 sq/ft

Storage : 0 sq/ft

Upper Floor : 690 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 9' 8"

Main Ceiling : 9'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 10:12

Roof Framing : conventional

Roof Load : 20 lb live load

Roof Type : shingle

Exterior Wall Framing

Exterior Wall Finish : Board & Batten/Shake

Framing : 2x4 wood

Bedroom Features

Guest Suite

Main Floor Bedrooms

Main Floor Master Bedroom

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Walk In Pantry Cabinet Pantry

Additional Room Features

Main Floor Laundry

Mud Room

Garage Features

Side Entry Garage

Split Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Outdoor Kitchen Grill

What's Included In This Plan Set


    All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
  • Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.

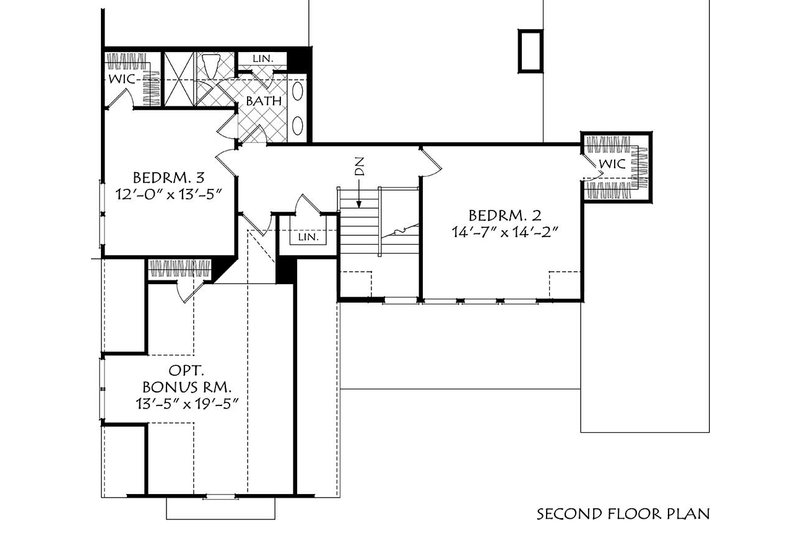

  • Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
  • The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
  • Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
  • The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
  • The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
  • Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
» See important information before purchasing.
