PLAN 310-1178
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
A French Country design with a taste for formal living, this plan provides good separation between the kitchen and dining room. The study at the left of the home, featuring a tray ceiling, is similarly suited for quiet use. The first-floor master suite provides a full set of amenities, including direct access to the porch. The two-story great room brings light and air to the center of the plan. Head upstairs for the home's remaining bedrooms, which find privacy at opposite ends of the plan. No sharing of bathrooms is necessary in this family-minded design.
Floor Plans

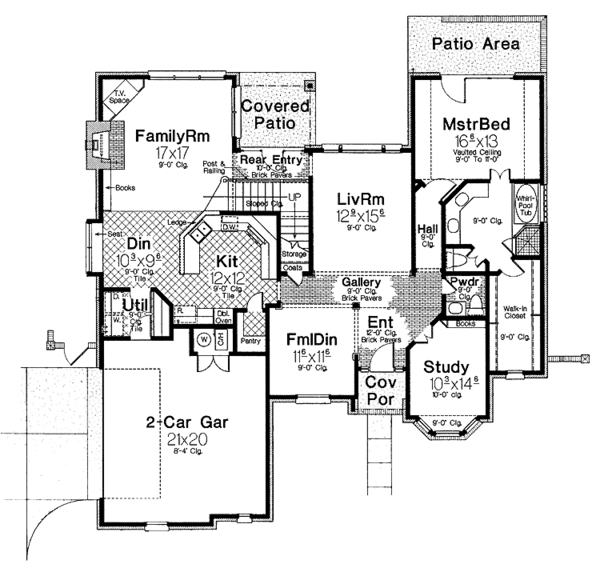

Floor Plan - Main Floor

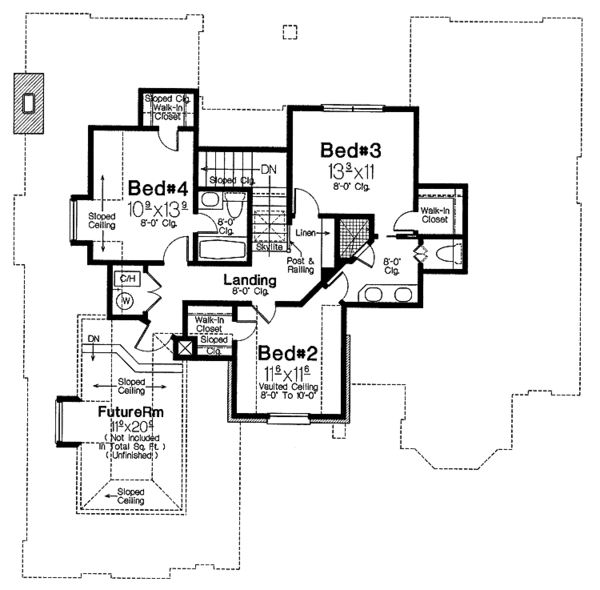

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 56' 7"
Height : 27'
Width : 56'
Area
Bonus: 220 sq/ft
First Floor: 1931 sq/ft height 10'
Second Floor: 768 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Kitchen Features
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Main Floor Laundry
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms
Dining Room:
97 sq/ft width 10' 3" x depth 9' 6"
Family Room:
289 sq/ft width 17' x depth 17'
Garage:
420 sq/ft width 21' x depth 20'
Kitchen:
144 sq/ft width 12' x depth 12'
Living Room:
197 sq/ft width 12' 9" x depth 15' 6"
Master Bedroom:
214 sq/ft width 16' 6" x depth 13'
Study:
148 sq/ft width 10' 3" x depth 14' 6"
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
Questions? Call 1-866-445-9085
Plan Set
5 Copy Set:
$1015.75
$1015.75
5 printed plan sets mailed to you.
8 Copy Set:
$1134.75
$1134.75
8 printed plan sets mailed to you.
PDF Set:
$1262.25
$1262.25
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$1262.25
$1262.25
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Single Set:
$969.00
$969.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Additional Options
Right-Reading Reverse:
$148.75
$148.75
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$42.50
$42.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$85.00
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Mirror Reversed Sets:
$55.25
$55.25
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
