PLAN 17-2628
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 77' 8"
Height : 29'
Width : 79'
Area

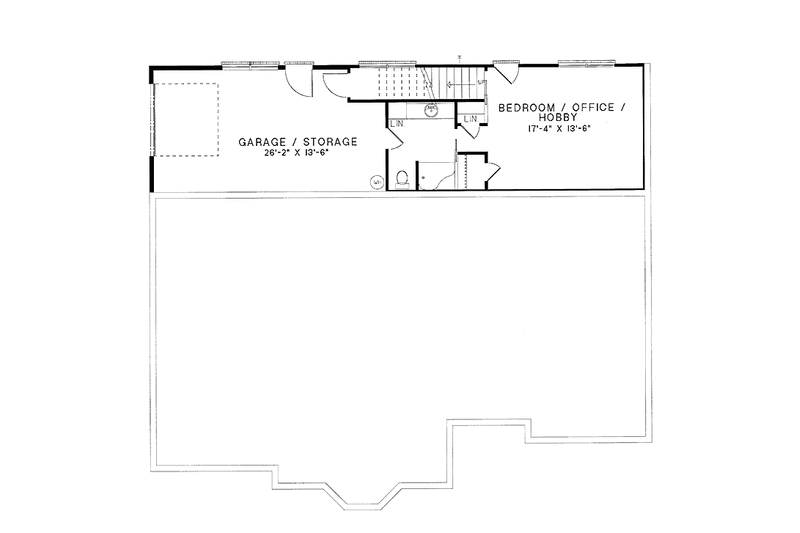

Basement Living: 409 sq/ft

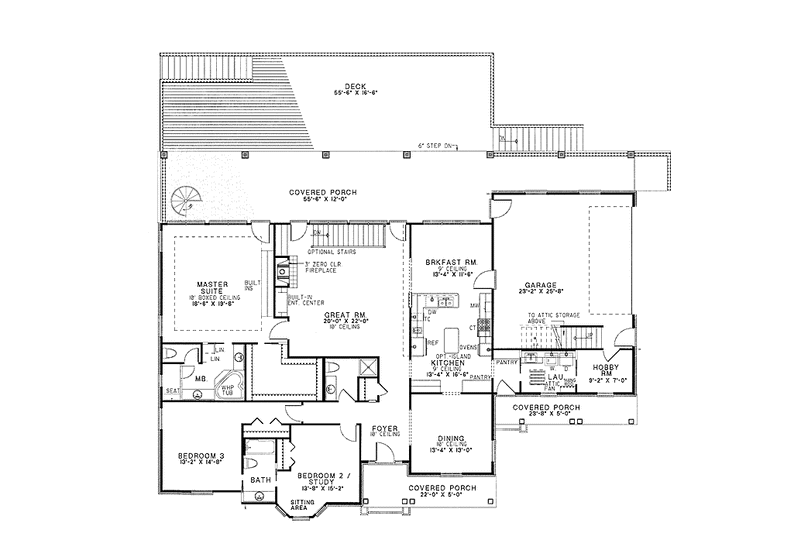

First Floor: 2650 sq/ft height 9'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Split Bedrooms
Additional Room Features
Den Office Study Computer
Great Room Living Room
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
207 sq/ft width 13' 8" x depth 15' 2"
Bedroom 3:
193 sq/ft width 13' 2" x depth 14' 8"
Bedroom 4:
233 sq/ft width 17' 4" x depth 13' 6"
Breakfast Room:
153 sq/ft width 13' 4" x depth 11' 6"
Deck:
915 sq/ft width 55' 6" x depth 16' 6"
Dining Room:
173 sq/ft width 13' 4" x depth 13'
Garage:
594 sq/ft width 23' 2" x depth 25' 8"
Garage Storage:
353 sq/ft width 26' 2" x depth 13' 6"
Gathering Room:
440 sq/ft width 20' x depth 22'
Kitchen:
219 sq/ft width 13' 4" x depth 16' 6"
Master Bedroom:
363 sq/ft width 18' 6" x depth 19' 8"
Porch - Front:
110 sq/ft width 22' x depth 5'
Porch - Rear:
666 sq/ft width 55' 6" x depth 12'
Porch - Right:
118 sq/ft width 23' 8" x depth 5'
Study:
207 sq/ft width 13' 8" x depth 15' 2"
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

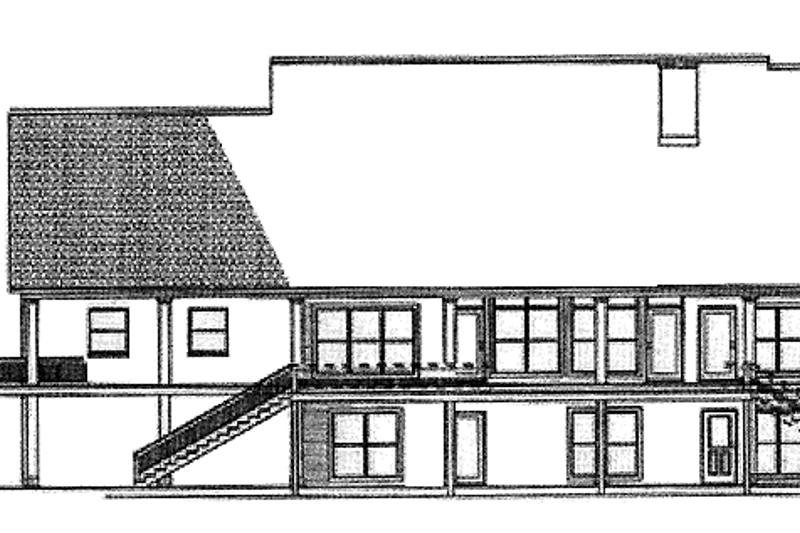

- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
Plan Set
$960.00
$1040.00
$1240.00
$1520.00
$1920.00
$1920.00
Foundation
$0.00
$0.00
$239.20
$239.20
Framing
$0.00
$239.20
Additional Options
$239.20
$64.00
$80.00
$316.00
$31.20
$119.20
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
