ON SALE!

PLAN 72-221

Photographs may show modified designs.

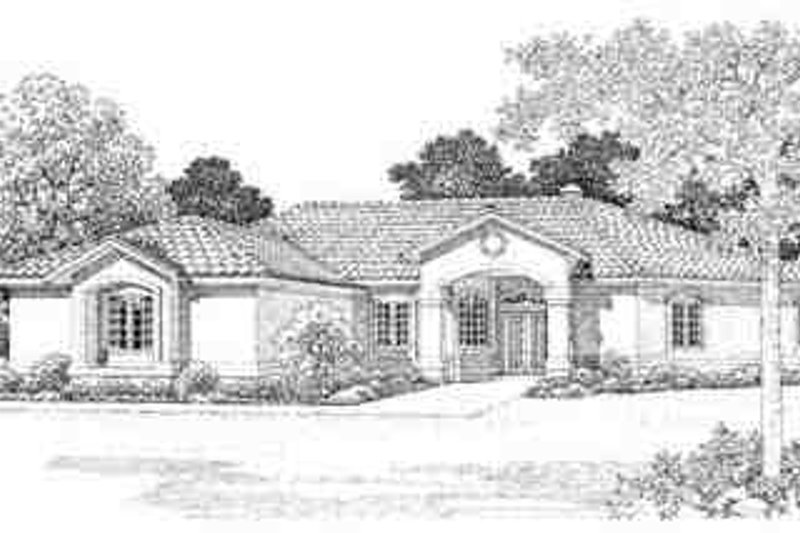

House Blueprint - Adobe / Southwestern Exterior - Front Elevation Plan #72-221

House Blueprint - Adobe / Southwestern Exterior - Rear Elevation Plan #72-221

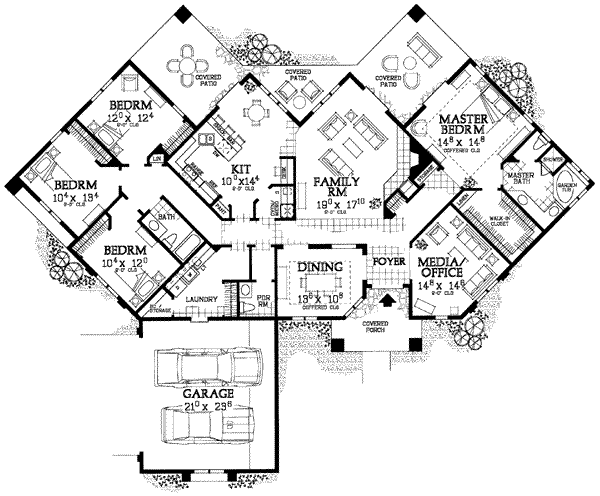

House Blueprint - Adobe / Southwestern Floor Plan - Main Floor Plan #72-221

Jump to:
All (3)
Exterior (2)
Floor plans (1)

Get Personalized Help

Home > Style > Adobe / Southwestern House Plans

Key Specs

2612
sq ft

4
Beds

2.5
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Select Foundation Options

	Right-Reading Reverse	$165.75
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$51.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Additional Use License	$420.75
	Allows you to build one more home for each additional license purchased.
	Audio Video Design	$127.50
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$250.75
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$33.15
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$127.50
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Material List	$72.25
	A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
	Mirror Reversed Sets$0.00 Printed sets showing plan in reverse, text and dimensions will be backwards.
	Unlimited Use License	$845.75
	Allows you to build this home as many times as you want.

Subtotal

NOW $1083.85

You save $191.27 (15% savings)

Sale ends soon!

Also order by phone: 1-866-445-9085

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-866-445-9085

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 72-221

Home > Style > Adobe / Southwestern House Plans

Key Specs

2612
sq ft

4
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description

This adobe / southwestern design floor plan is 2612 sq ft and has 4 bedrooms and 2.5 bathrooms.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 74' 10"

Height : 20'

Width : 93' 7"

Area

First Floor: 2612 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : 2"x6"

Bedroom Features

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Additional Room Features

Den Office Study Computer

Great Room Living Room

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For View Lot

Rooms

3rd BR Closet:

17 sq/ft width 2' x depth 8' 7"

Bathroom 2:

47 sq/ft width 5' x depth 9' 6"

Bedroom 2:

147 sq/ft width 12' x depth 12' 4"

Bedroom 2 Closet:

11 sq/ft width 2' x depth 5' 9"

Bedroom 3:

137 sq/ft width 10' 4" x depth 13' 4"

Bedroom 3 Closet:

11 sq/ft width 2' x depth 5' 9"

Bedroom 4:

123 sq/ft width 10' 4" x depth 12'

Bedroom 4 Closet:

15 sq/ft width 2' x depth 7' 8"

Breakfast Room:

93 sq/ft width 8' 9" x depth 10' 8"

Dining Room:

144 sq/ft width 13' 6" x depth 10' 8"

Foyer:

43 sq/ft width 6' 10" x depth 6' 4"

Game Room:

212 sq/ft width 14' 8" x depth 14' 6"

Garage:

493 sq/ft width 21' x depth 23' 6"

Gathering Room:

338 sq/ft width 19' x depth 17' 10"

Hall:

91 sq/ft width 3' 10" x depth 24'

Kitchen:

143 sq/ft width 10' x depth 14' 4"

Laundry Room:

118 sq/ft width 12' 6" x depth 9' 6"

Master Bathroom:

123 sq/ft width 10' 4" x depth 12'

Master Bedroom:

215 sq/ft width 14' 8" x depth 14' 8"

Master Closet:

93 sq/ft width 7' x depth 13' 4"

Porch - Front:

143 sq/ft width 14' 4" x depth 10'

Powder Room:

31 sq/ft width 5' 8" x depth 5' 6"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-866-445-9085

Plan Set

PDF Set:
$1083.85

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1201.66

5 printed plan sets mailed to you.

8 Copy Set:
$1319.47

8 printed plan sets mailed to you.

Single Set:
$966.04

One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse:
$165.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$51.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$420.75

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$127.50

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$127.50

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List:
$72.25

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets:
$0.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unlimited Use License:
$845.75

Allows you to build this home as many times as you want.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
