Full Specs & Features
Depth : 65' 6"
Height : 32'
Width : 50' 6"
Bonus: 190 sq/ft
First Floor: 1470 sq/ft
Second Floor: 1138 sq/ft
Primary Pitch : 12:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Covered Front Porch
Covered Rear Porch
479 sq/ft width 21' x depth 22' 10"
202 sq/ft width 15' 5" x depth 13' 2"
32 sq/ft width 6' 2" x depth 5' 4"
52 sq/ft width 8' x depth 6' 6"
61 sq/ft width 9' 2" x depth 6' 8"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

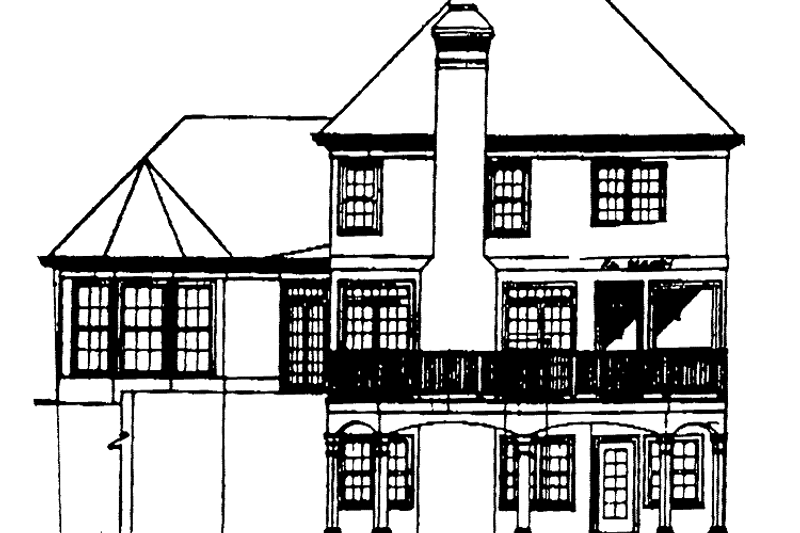

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

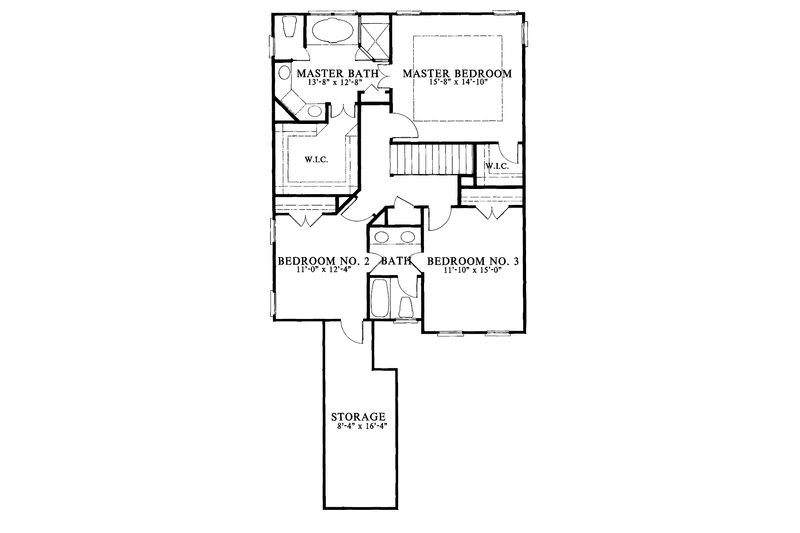

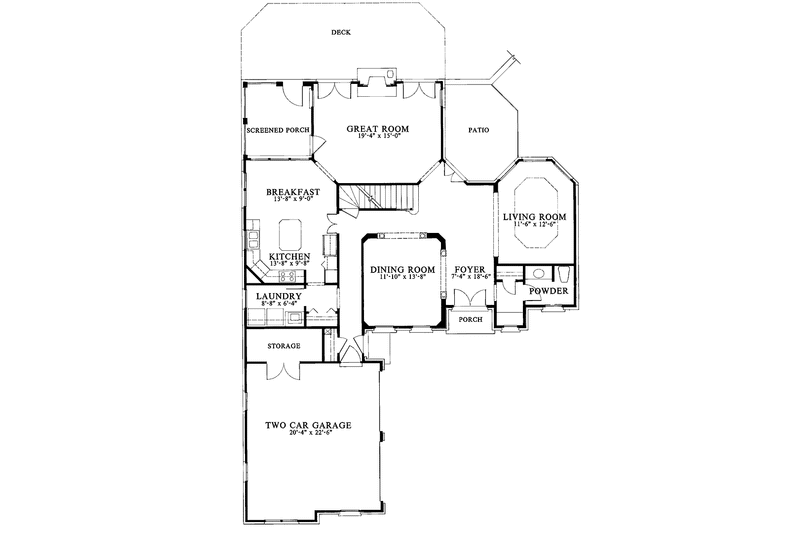

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
